Sizing a pump control panel is not simply a matter of choosing an enclosure large enough to fit a motor starter. A properly specified panel must suit the motor electrical data, starting method, control philosophy, protection requirements, instrumentation, heat load, communications and the environment in which it will operate.
The better the information supplied at RFQ stage, the more accurately the panel can be selected, costed and built.
Start With the Pump and Motor Data
The motor nameplate is the most useful starting point. Provide clear nameplate photographs or the following information:
- Motor rated power in kW
- Rated voltage
- Rated full-load current
- Frequency
- Number of phases
- Motor speed
- Power factor and efficiency where relevant
- Duty rating
- Connection details where required
Do not size the control equipment from kW alone. Two motors with the same nominal kW can have different rated currents and application requirements.
Confirm the Incoming Supply
The panel design must match the actual electrical supply. Confirm voltage, phase, frequency and the available upstream protection. Where known, provide the prospective fault level and information about the supplying DB, MCC or transformer.
A panel intended for 400 V three-phase operation should not be assumed suitable for every site merely because the motor is three phase. Supply tolerances, earthing arrangement, short-circuit rating and local standards matter.
Select the Motor Starting Method
The three common approaches are direct-on-line starting, soft starting and variable speed control.
DOL Starter
DOL control is simple and robust where the supply and mechanical system can tolerate full-voltage starting and no speed control is required.
Soft Starter
A soft starter can reduce electrical and mechanical stress during starting and stopping. It is useful where reduced starting current or smoother acceleration is required but continuous variable speed is not.
Variable Speed Drive
A VSD is appropriate where pump speed needs to change to control pressure, flow, level or process demand. The drive also provides useful monitoring and communication functions, but it introduces additional design considerations such as heat dissipation, harmonics, EMC and motor cable requirements.
Size a VSD From Motor Current and Duty
When a pump panel uses a VSD, start with the motor rated current rather than selecting only by kW. Confirm that the drive output current and overload rating suit the actual motor and load.
Pump and fan applications are often variable-torque loads, but not every pump duty is light. High static head, frequent acceleration, solids handling, slurry duties, positive displacement pumps and process conditions can change the required drive duty. Site altitude and ambient temperature can also require derating.
One Pump or Multiple Pumps?
The number of pumps has a major effect on panel size and control architecture. A single pump panel may require only one starter or drive and basic control. Duty and standby arrangements require additional feeders and logic. Lead and lag booster systems can require several VSDs or a combination of variable-speed and fixed-speed starters.
Confirm whether the pumps must alternate, automatically change over after a fault, run together at peak demand or maintain equal running hours.
Protection and Isolation
The panel must provide appropriate isolation and protection for the equipment and conductors. Depending on the design, this can include:
- Main isolator
- MCCB or circuit breaker
- Fuses
- Motor protection devices
- Contactors and overload relays
- Control circuit protection
- Surge protection
- Phase monitoring
- Earth leakage protection where applicable
Protective device selection and coordination must consider motor current, cable size, fault level, starting characteristics and the requirements of the equipment being protected.
Decide on the Control Voltage
Industrial panels commonly use 24 V DC for PLC I/O, sensors, relays, HMIs and communications equipment. Other control voltages may be used depending on site standards and existing equipment.
If 24 V DC is used, the power supply must be sized for the total connected control load, including inrush where relevant, with sensible spare capacity for future additions.
PLC I/O and Spare Capacity
If the pump system requires a PLC, list every field signal and control point before choosing the controller. Count digital inputs, digital outputs, analogue inputs, analogue outputs and communications interfaces.
Typical pump panel signals can include run commands, run feedback, trip status, local or remote selection, float switches, pressure transmitters, level transmitters, valve status and VSD communications.
Allowing reasonable spare I/O can make future modifications easier, but excessive unused capacity unnecessarily increases panel cost and size.

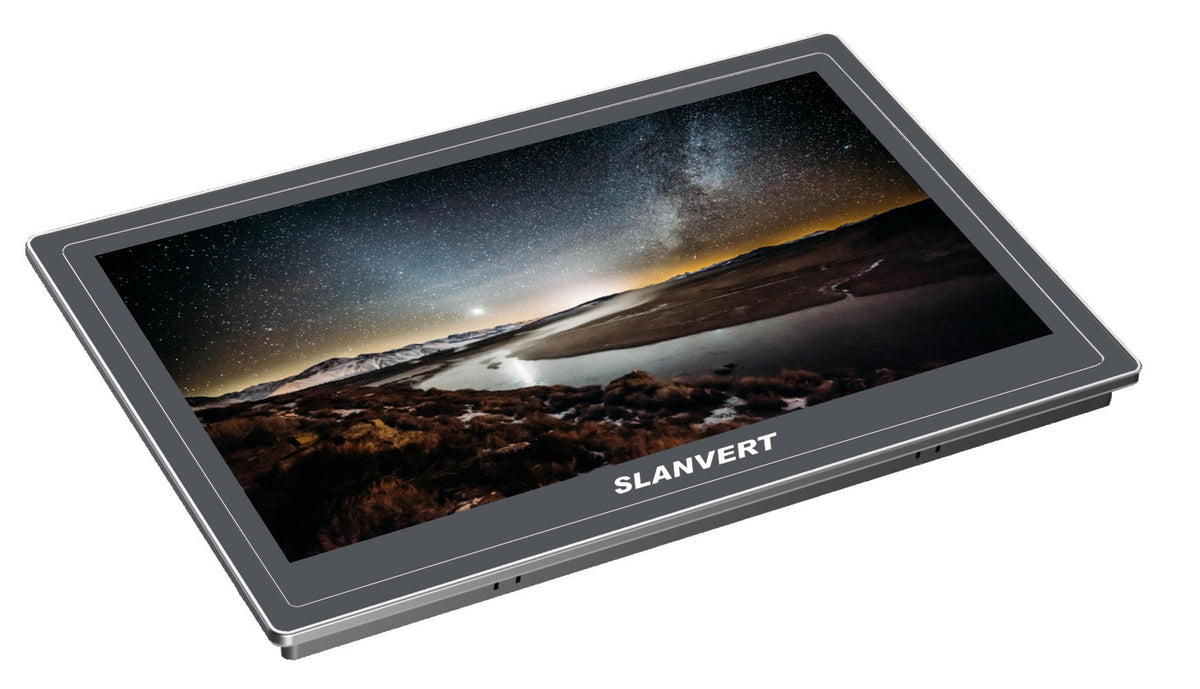

HMI and Operator Controls
Decide what the operator actually needs to see and control. A simple panel may use push buttons, selector switches and indicator lamps. A more complex pump station can benefit from an HMI showing pressure, tank level, pump status, alarms, running hours, setpoints and operating modes.
The HMI screen size should suit the quantity of information, viewing distance and environmental conditions.
Specify the Instrumentation
Instrumentation requirements have a direct effect on PLC I/O and control strategy. Confirm the type, signal and measurement range for each instrument.
Common devices include pressure transmitters, level transmitters, float switches, flowmeters, pressure switches and dry-run sensors. For analogue devices, specify whether the signal is 4–20 mA, 0–10 V or another standard supported by the chosen equipment.
Choose the Correct Enclosure
The enclosure should be selected from the actual site environment, not appearance alone. Consider:
- Indoor or outdoor location
- Required IP rating
- Steel, stainless steel or non-metallic construction
- Corrosion and chemical exposure
- Dust and water exposure
- Direct sunlight
- Ambient temperature
- Condensation
- Cable entry and gland space
- Wall, floor or kiosk mounting
Outdoor enclosures often need additional attention to sun loading, rain protection, ventilation, condensation and corrosion.
Heat Dissipation and Cooling
VSDs, soft starters, power supplies and other components produce heat. The enclosure must allow the equipment to remain within its permitted operating temperatures.
Panel thermal design can involve natural ventilation, filtered fans, heat exchangers, air conditioning or larger enclosures to improve spacing and heat dissipation. The correct approach depends on heat load and site conditions.
Never assume a higher IP rating automatically creates a better VSD panel. A tightly sealed enclosure can trap heat if thermal management is not designed correctly.
Panel Size, Layout and Segregation
Physical enclosure size should account for more than the dimensions of the individual components. Allow room for wiring ducts, terminals, cable bend radius, glands, heat clearance, maintenance access and future expansion.
Where appropriate, separate power wiring, control wiring, analogue instrumentation and communications to reduce interference and make the panel easier to maintain.
Communications and Remote Monitoring
If the panel must communicate with a plant network, SCADA system, telemetry RTU or remote monitoring platform, define the interface before hardware is ordered.
Common protocols can include Modbus RTU, Modbus TCP, PROFINET and EtherNet/IP. Confirm whether fibre, industrial Ethernet, cellular routing or radio communications are part of the wider system.
Consider Future Expansion
Ask whether another pump, instrument, network interface or remote function is likely to be added later. A small amount of planned spare panel space, terminals, PLC I/O or communications capacity can be valuable. However, future expansion should be deliberate rather than an excuse to oversize every component.
Drawings and Documentation
For project and industrial panels, documentation can be as important as the hardware. Depending on the project, required deliverables may include general arrangement drawings, single-line diagrams, control schematics, terminal drawings, cable schedules, I/O lists, bills of material, device settings and test records.
State document and drawing requirements in the RFQ so they form part of the panel scope from the beginning.
A Practical Planning Checklist
- Number of pumps
- Motor nameplate data for every pump
- Incoming supply voltage and phase
- Required starting method for each motor
- Control philosophy and operating sequence
- Duty and standby or lead and lag requirements
- Pressure, level, flow and other instrumentation
- PLC and HMI requirements
- Communications or SCADA requirements
- Indoor or outdoor installation
- Required IP rating or site environmental conditions
- Available fault level where known
- Existing drawings or panel photographs for replacement projects
- Site or client preferred brands and standards
- Required documentation, testing and delivery date
Where engineering calculations, programming, protection studies, functional safety, installation or commissioning are required, those activities should be completed or verified by appropriately qualified professionals.
Technical Note
This guide is intended for general purchasing and specification support. Final electrical design, protection coordination, thermal calculations, control philosophy, component ratings, installation and commissioning must be based on the actual application, manufacturer requirements, applicable standards and site procedures.
