Slanvert ST070E 7-Inch Industrial HMI
Slanvert ST070E 7-Inch Industrial HMI

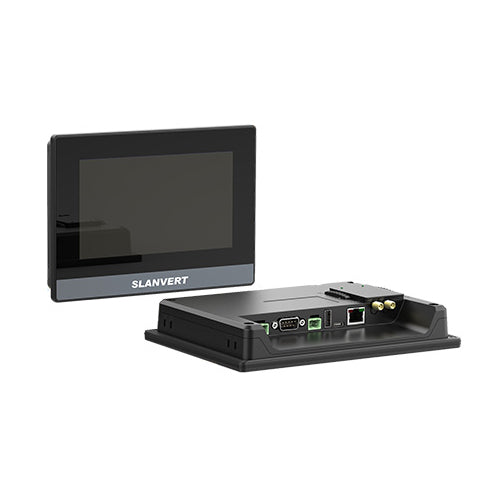

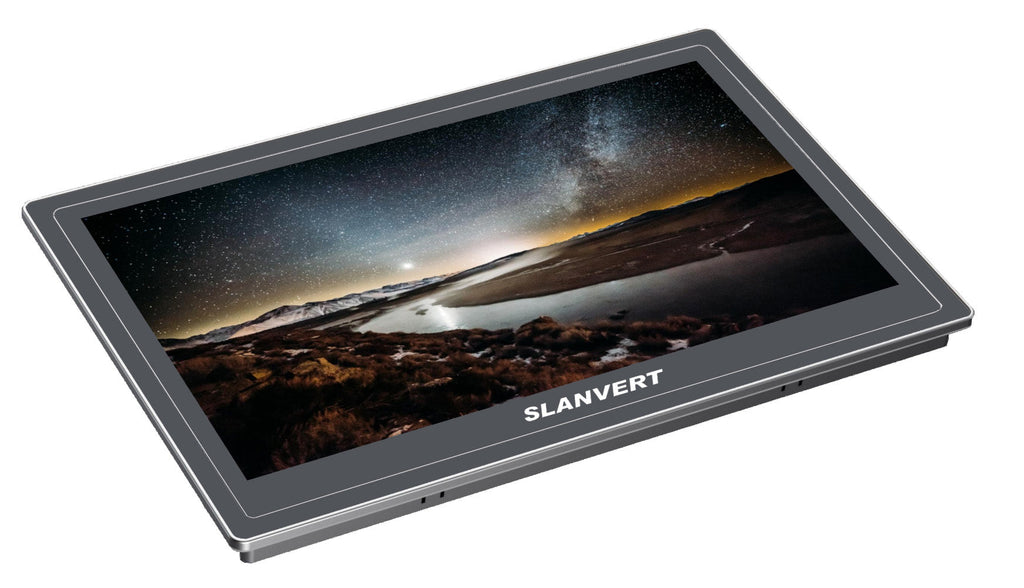

Slanvert ST070E is a 7-inch industrial Human Machine Interface for machine control, process visualisation and operator interaction.
Key Features
- Resistive touchscreen for operator commands and process visualisation.
- Ethernet and serial connections for compatible PLCs and industrial devices.
- USB transfer and programming facilities.
- Front-panel IP65 protection when correctly mounted.
- Optional Wi-Fi / 4G IoT modules; these are separate from the standard HMI.
Technical Specifications
| Display | 7-inch TFT LCD |
|---|---|
| Resolution | 1024 × 600 |
| Colour | 24-bit |
| Memory | 256 MB + 4 GB storage |
| Ethernet | 10/100 Mbps |
| Communication | Serial communications and USB |
| Power supply | 24 VDC |
| Dimensions | approximately 204 × 145 × 34 mm |
| Weight | approximately 476 g |
| Manufacturer | Slanvert |
| Supply voltage | 24 V DC nominal; confirm allowable range in model datasheet |
| Touch technology | 4-wire resistive |
| Front / rear protection | IP65 front / IP20 rear |
| Display brightness | 350 cd/m² |
| Store SKU | ST070E |
| Operating temperature | 0 to +50 °C |
| Humidity | 10–90% RH, non-condensing |
Typical Applications
Suitable for compact machine HMIs, PLC visualisation, process monitoring, control panels and industrial operator interfaces.
Technical Resources
Browse our Technical Resources & Manuals page for manufacturer documents and information on requesting the cut sheet, datasheet or manual for your exact model.
- Slanvert ST HMI product information and model specifications
- Slanvert ST HMI flyer
- Slanvert STview programming manual and downloads
Use the documentation for the exact ordered model. Family manuals may cover options and ratings that are not included with this unit.
Selection & Compatibility
- Confirm the controller protocol, screen cutout, supply, programming software and installed IoT module. Front-panel protection does not mean the rear electronics can be exposed outdoors.
- Confirm the exact HMI hardware revision, supported interfaces and project requirements before commissioning.
Availability & Ordering
Special-order product. Availability and delivery lead time are confirmed on quotation.
Supplied by Softcore Group Industrial Solutions. Request a quotation with the model number and application requirements. Programming, installation and commissioning are included only where expressly quoted.
