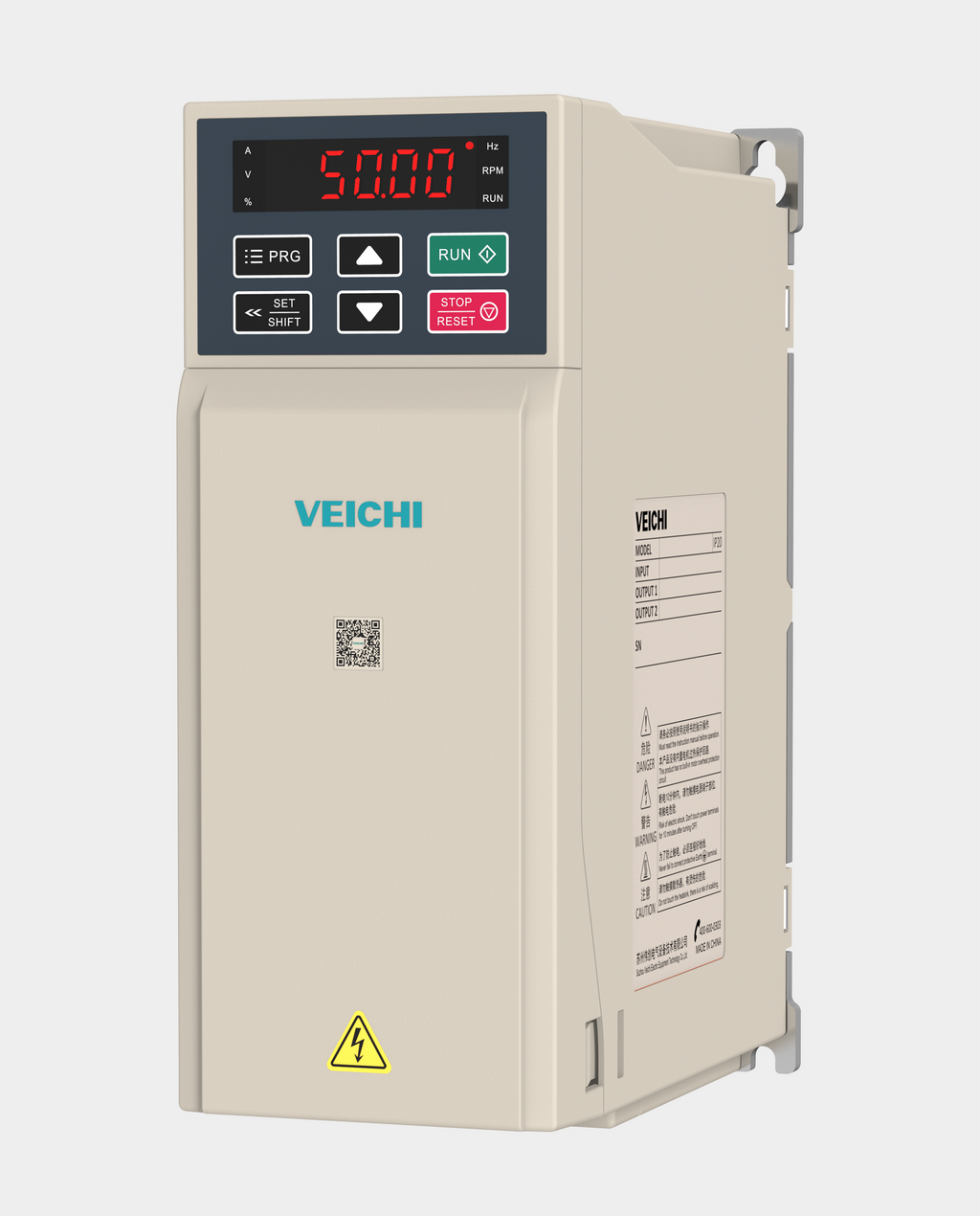

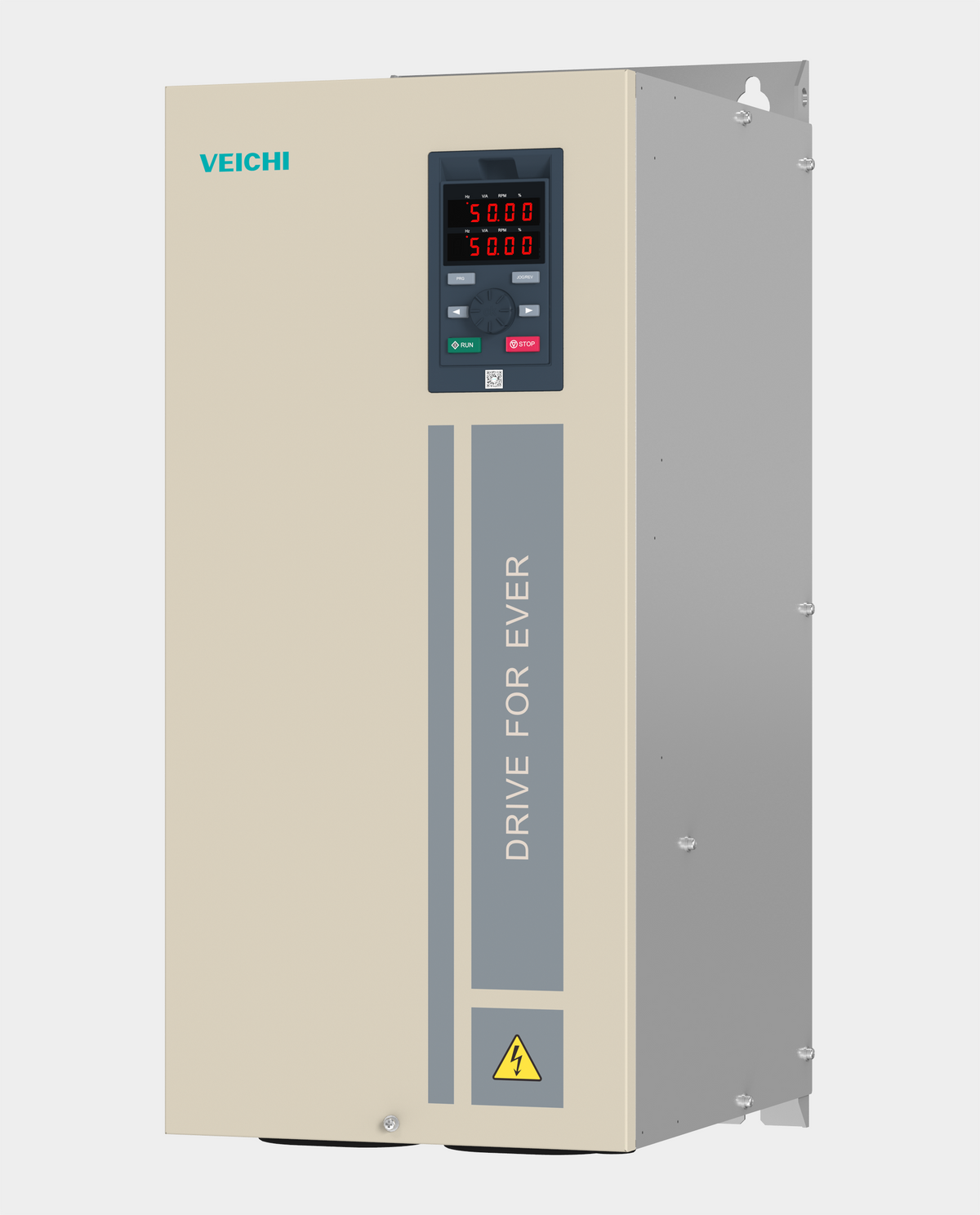

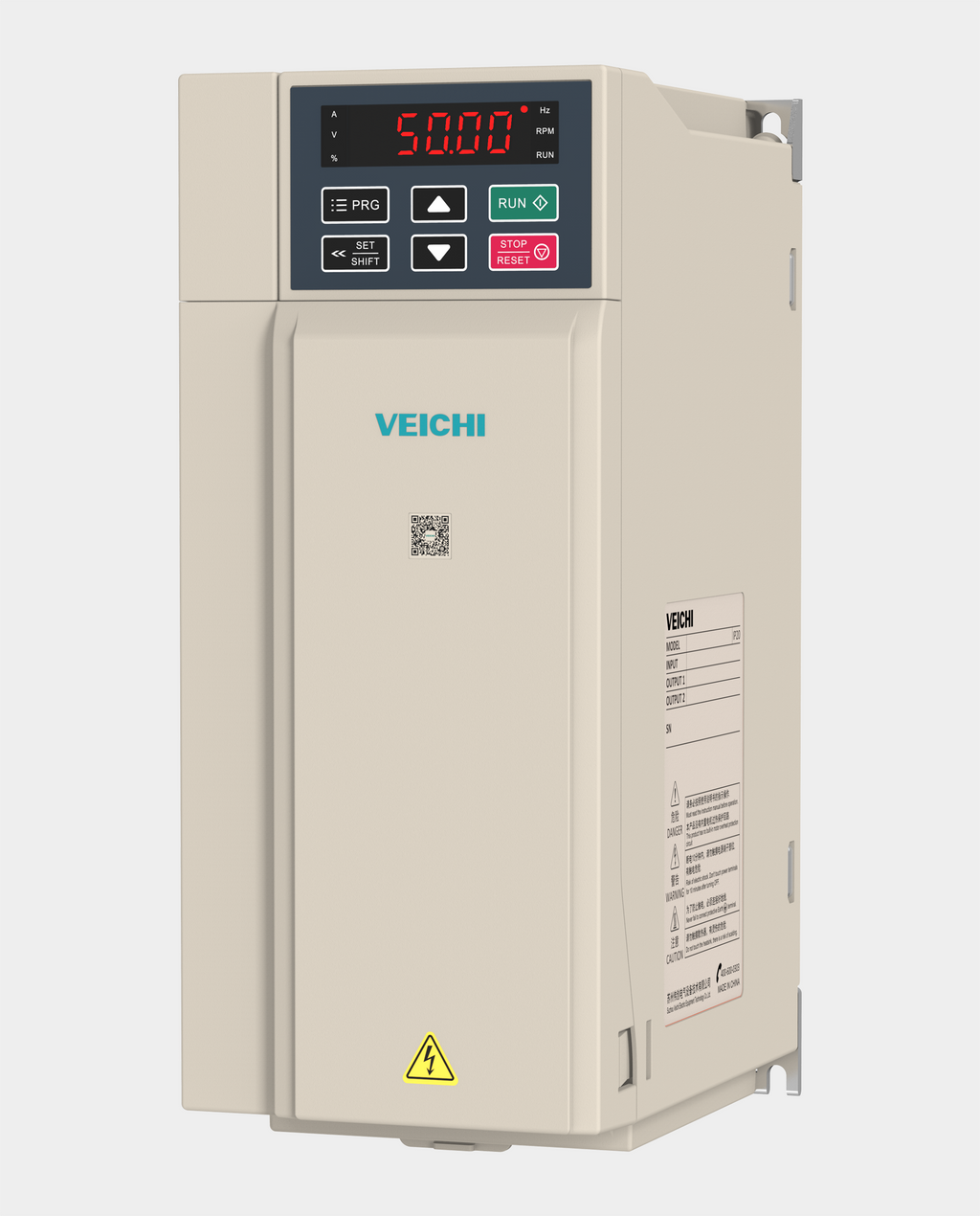

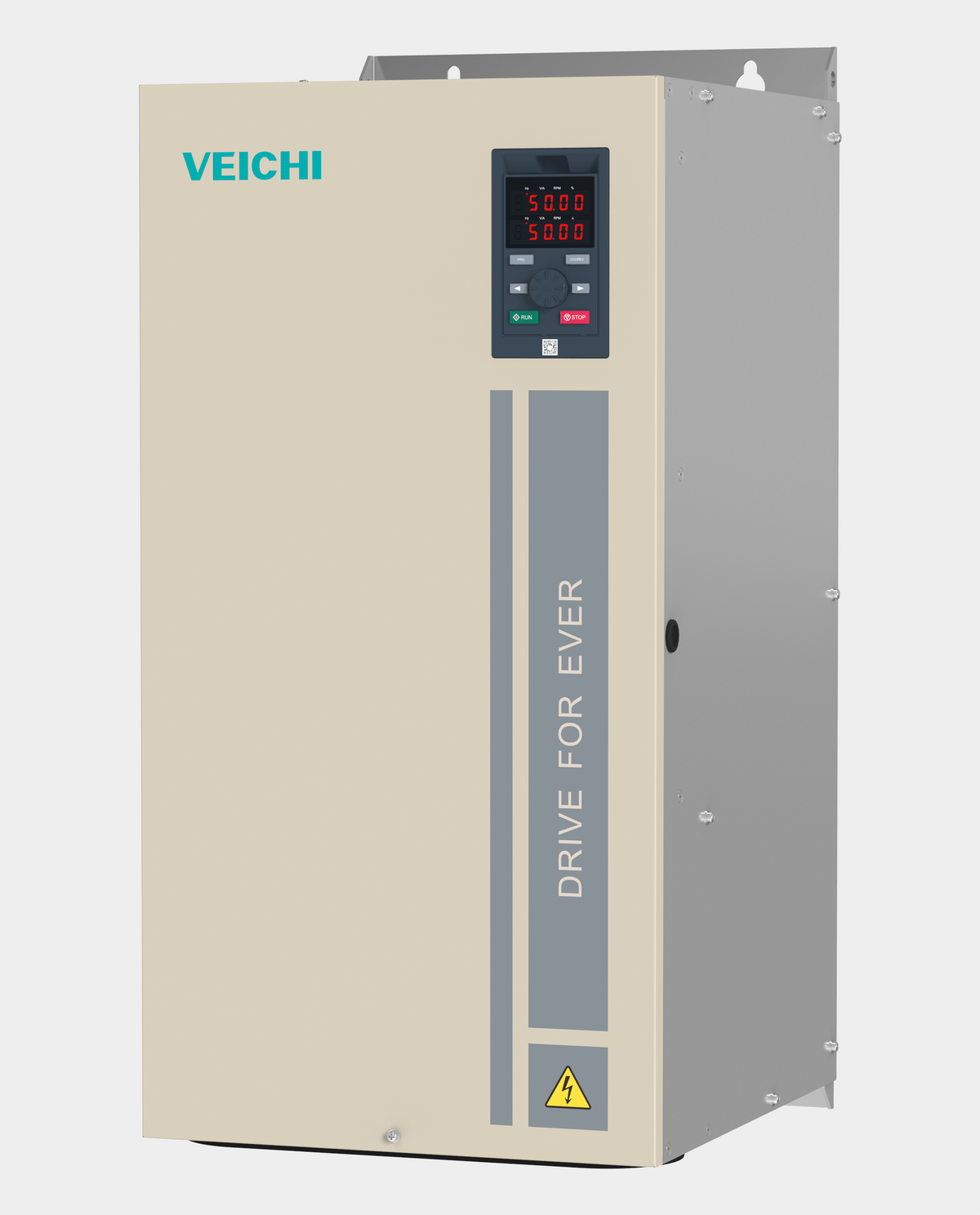

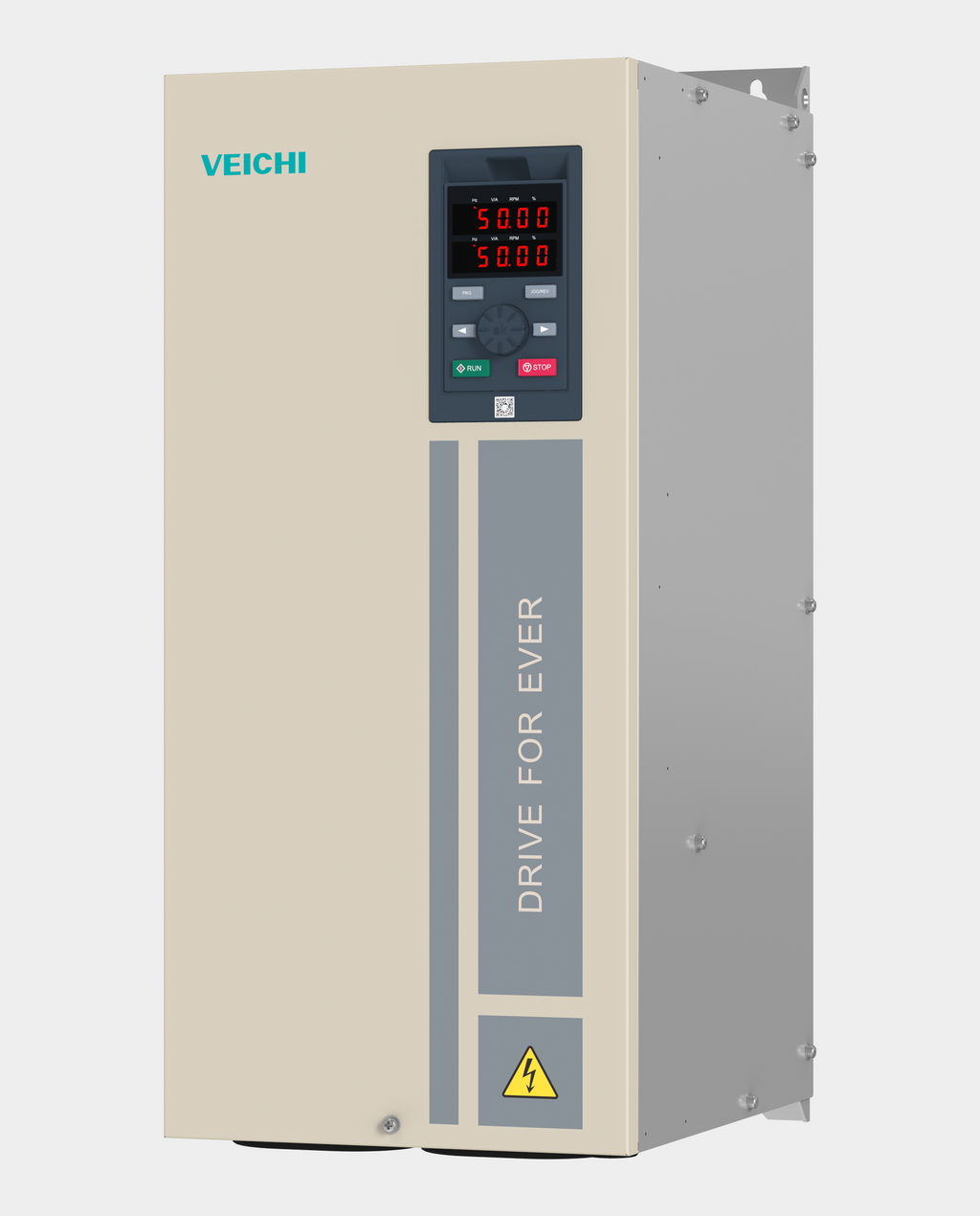

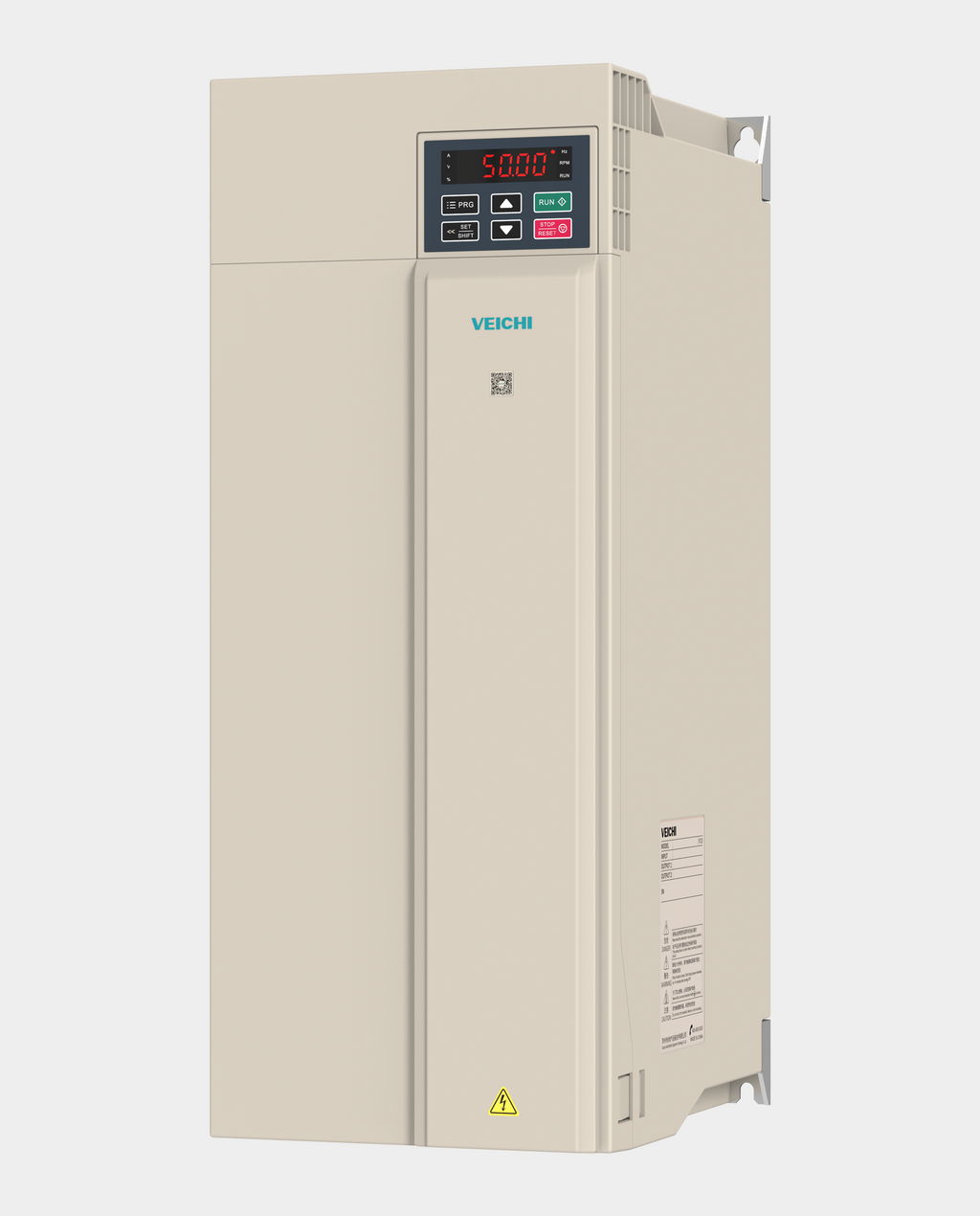

VEICHI AC310 2.2kW 380V 3PH VSD/VFD
VEICHI AC310 2.2kW 380V 3PH VSD/VFD

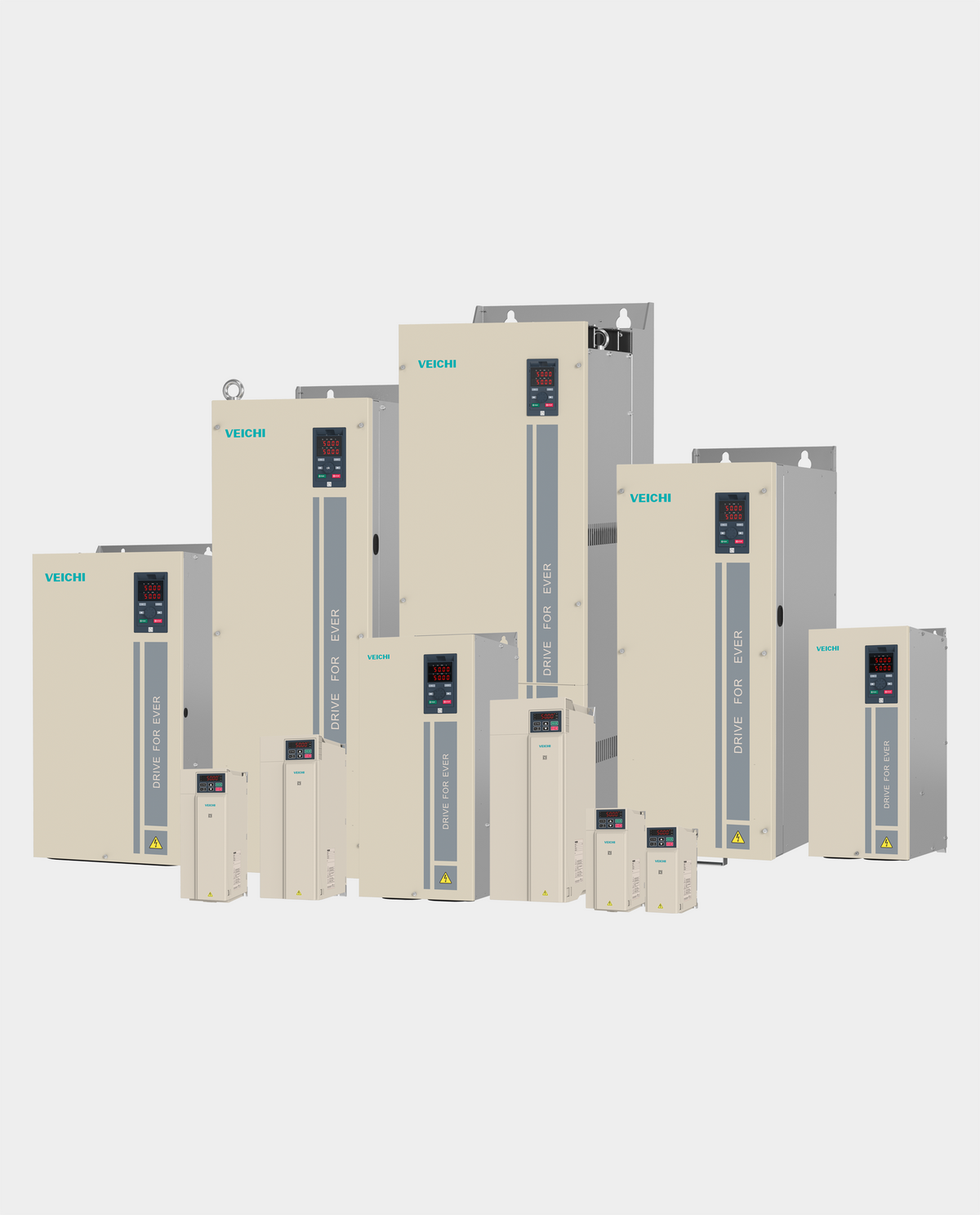

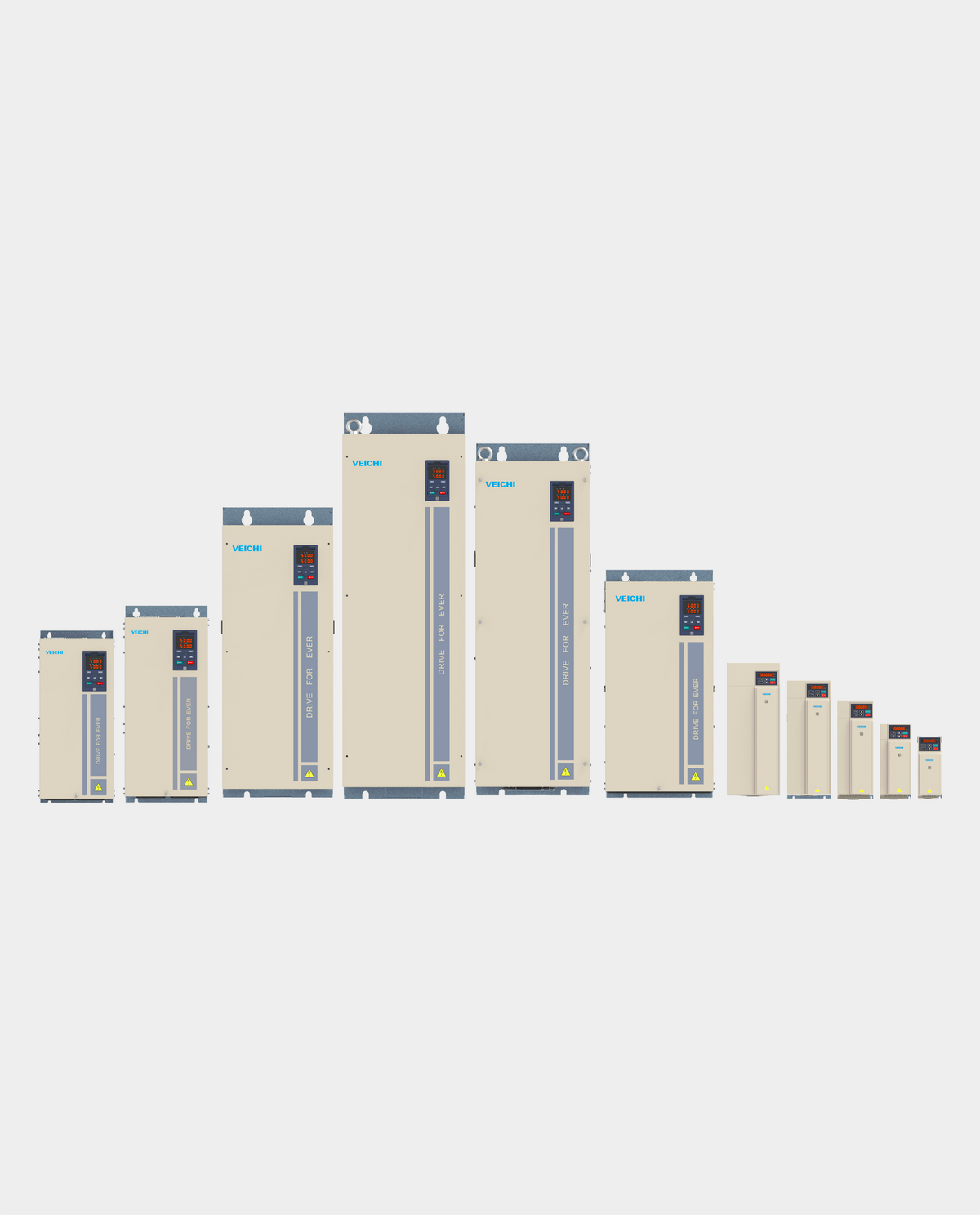

VEICHI AC310 2.2kW 380V 3PH VSD/VFD is a high-performance vector AC drive for industrial motor-speed and process control. The AC310 platform supports asynchronous and compatible permanent-magnet synchronous motors, standard RS485/Modbus RTU communication and a compact book-style design.
Key Features
- Vector control for compatible asynchronous and permanent-magnet synchronous motors.
- V/F, open-loop vector and closed-loop vector options; feedback modes require matching hardware.
- Standard Modbus RTU communication.
- Optional network expansion for PROFIBUS-DP, CANopen and PROFINET.
- PID/process functions, motor parameter learning and drive protection.
Technical Specifications
| Series | AC310 |
|---|---|
| Rated power | 2.2kW |
| Input | 380V AC three phase, 50/60Hz |
| Rated output current | 6A |
| Control modes | V/F and high-performance vector control |
| Motor support | asynchronous and compatible PMSM motors |
| Communication | RS485 / Modbus RTU |
| Optional networks | PROFIBUS-DP, CANopen and PROFINET with applicable expansion hardware |
| Manufacturer | Veichi |
| Supply frequency | 50/60 Hz |
| Output voltage | Three phase, 0 V to input voltage |
| Enclosure | IP20 |
| Ambient temperature | −10 to +50 °C; derate above +40 °C |
| Installation altitude | Derating required above 1,000 m |
| Output frequency | 0–599 Hz (G-type series specification) |
| Store SKU | V-AC310-2,2-380-3PH |
Typical Applications
Suitable for pumps, fans, conveyors, mixers, compressors, machinery and other industrial AC motor applications requiring variable-speed control.
Technical Resources
Browse our Technical Resources & Manuals page for manufacturer documents and information on requesting the cut sheet, datasheet or manual for your exact model.
- VEICHI AC310 product information and catalogue
- VEICHI AC310 user manual
- VEICHI AC310 manuals, software and technical downloads
Use the documentation for the exact ordered model. Family manuals may cover options and ratings that are not included with this unit.
Selection & Compatibility
- Confirm motor full-load current, duty type, braking requirements and installation conditions before commissioning.
- Select by motor nameplate voltage and full-load current, load duty, supply phase, braking requirement, cable length, environment and altitude. Confirm required accessories and the exact manual revision before installation.
Availability & Ordering
Special-order product. Availability and delivery lead time are confirmed on quotation.
Supplied by Softcore Group Industrial Solutions. Request a quotation with the model number and application requirements. Programming, installation and commissioning are included only where expressly quoted.
