VEICHI AC10 22kW 380V 3PH VSD/VFD
VEICHI AC10 22kW 380V 3PH VSD/VFD

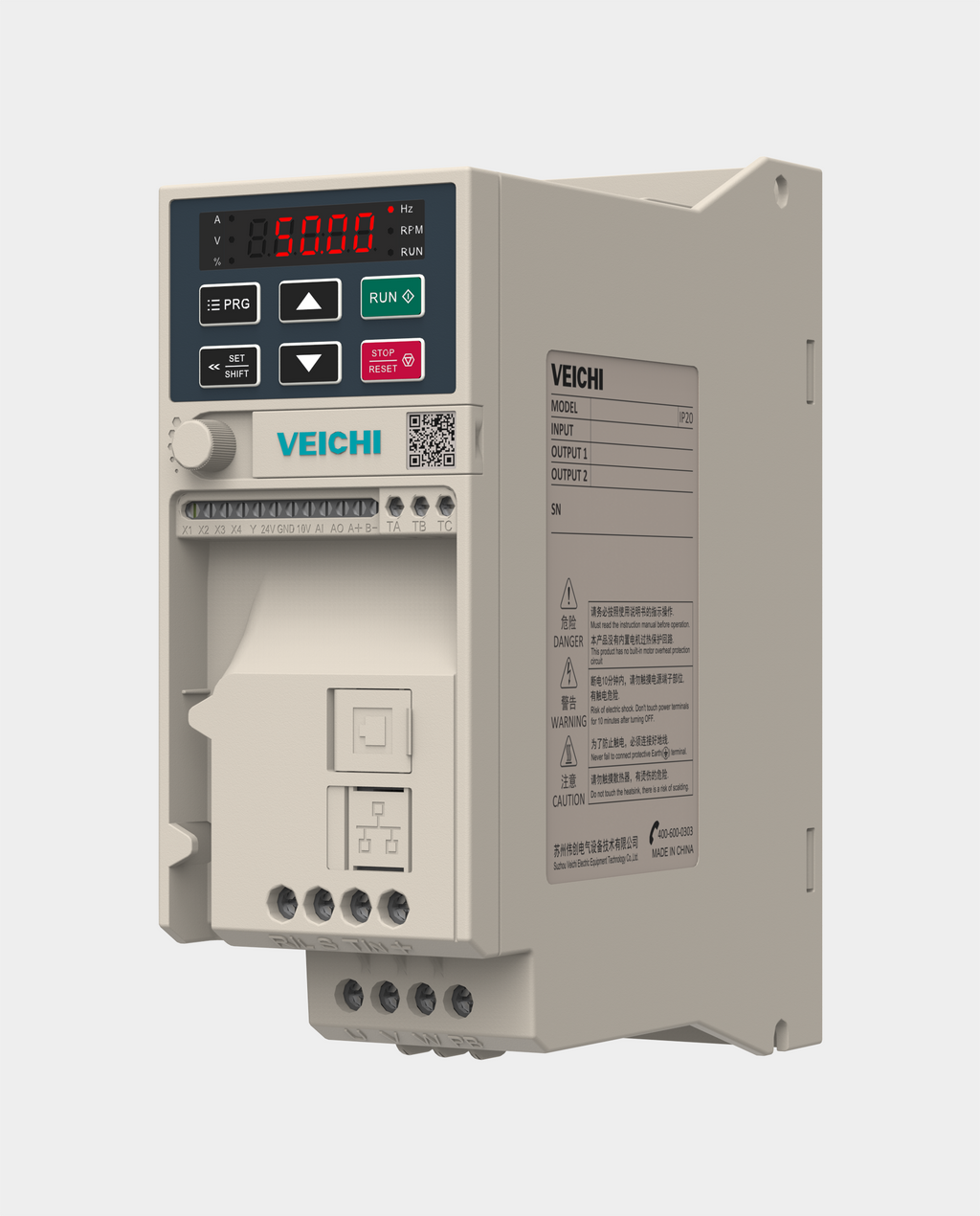

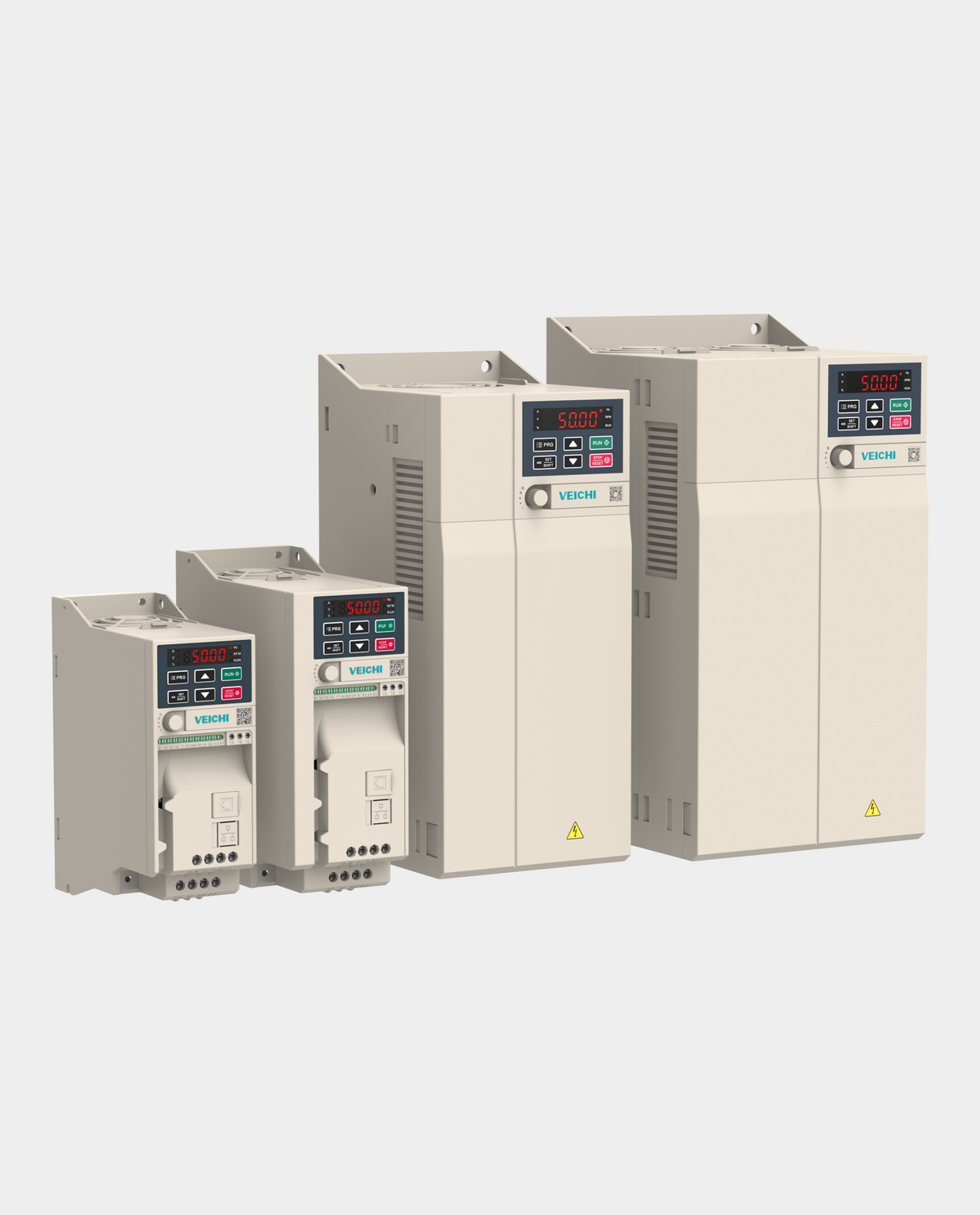

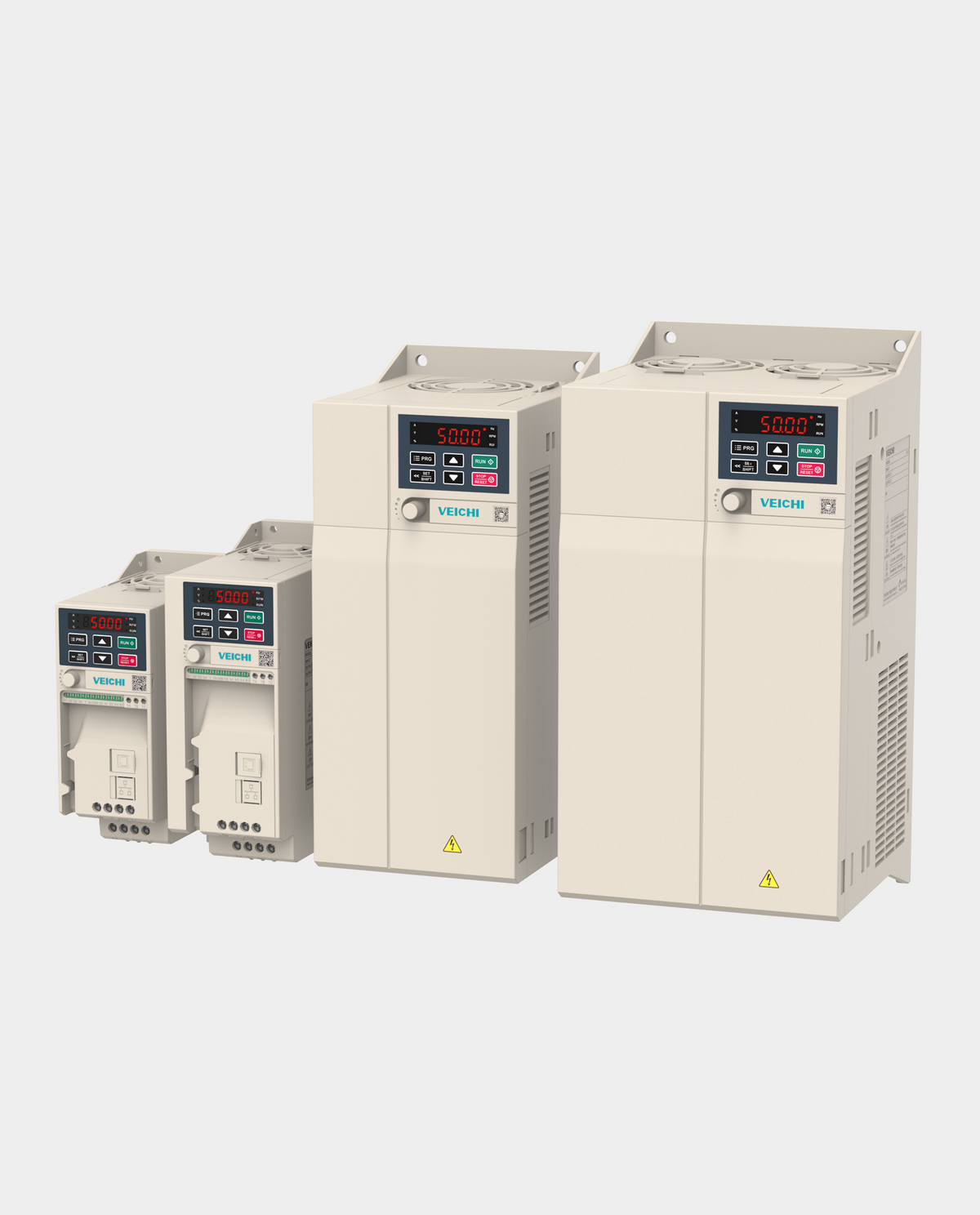

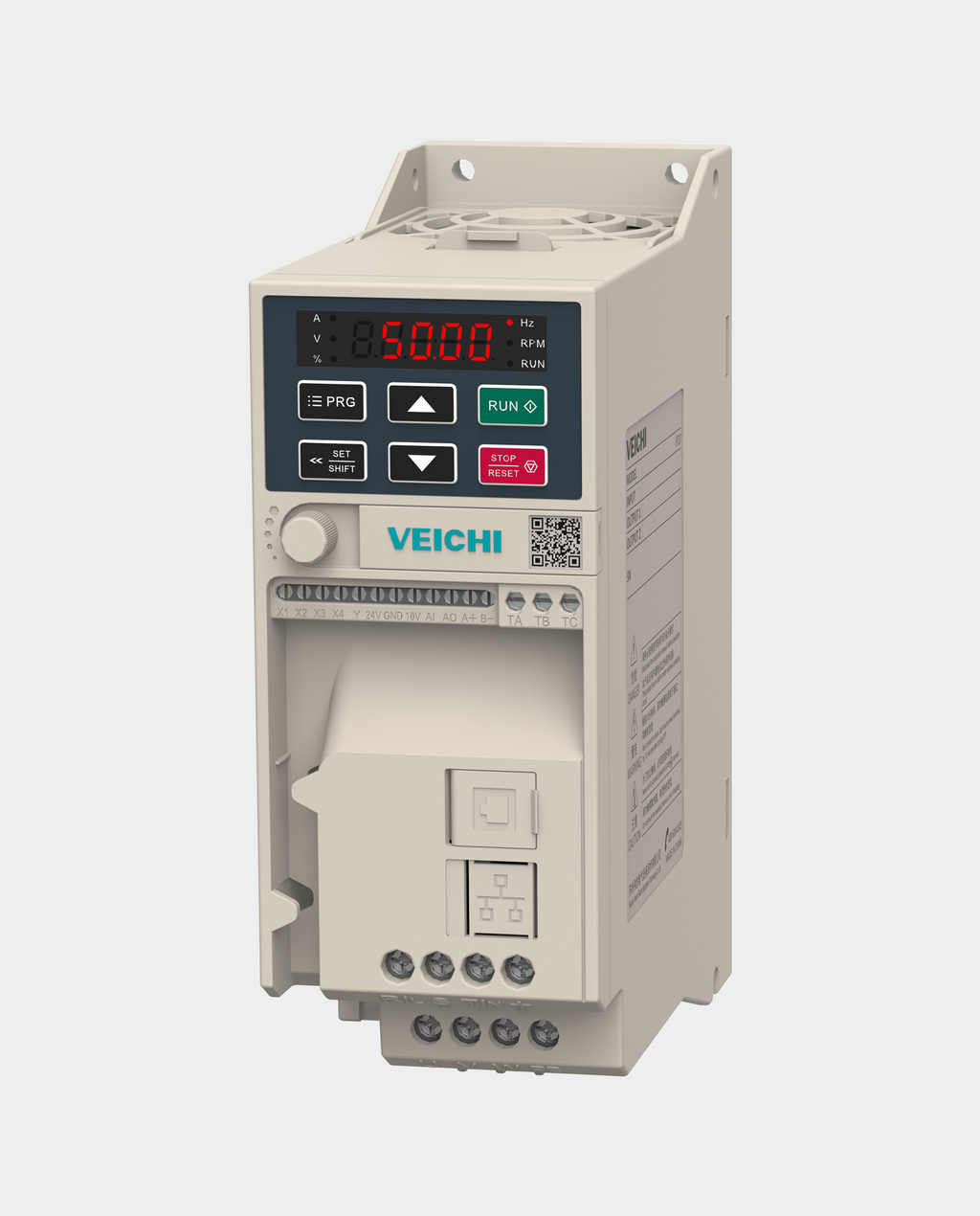

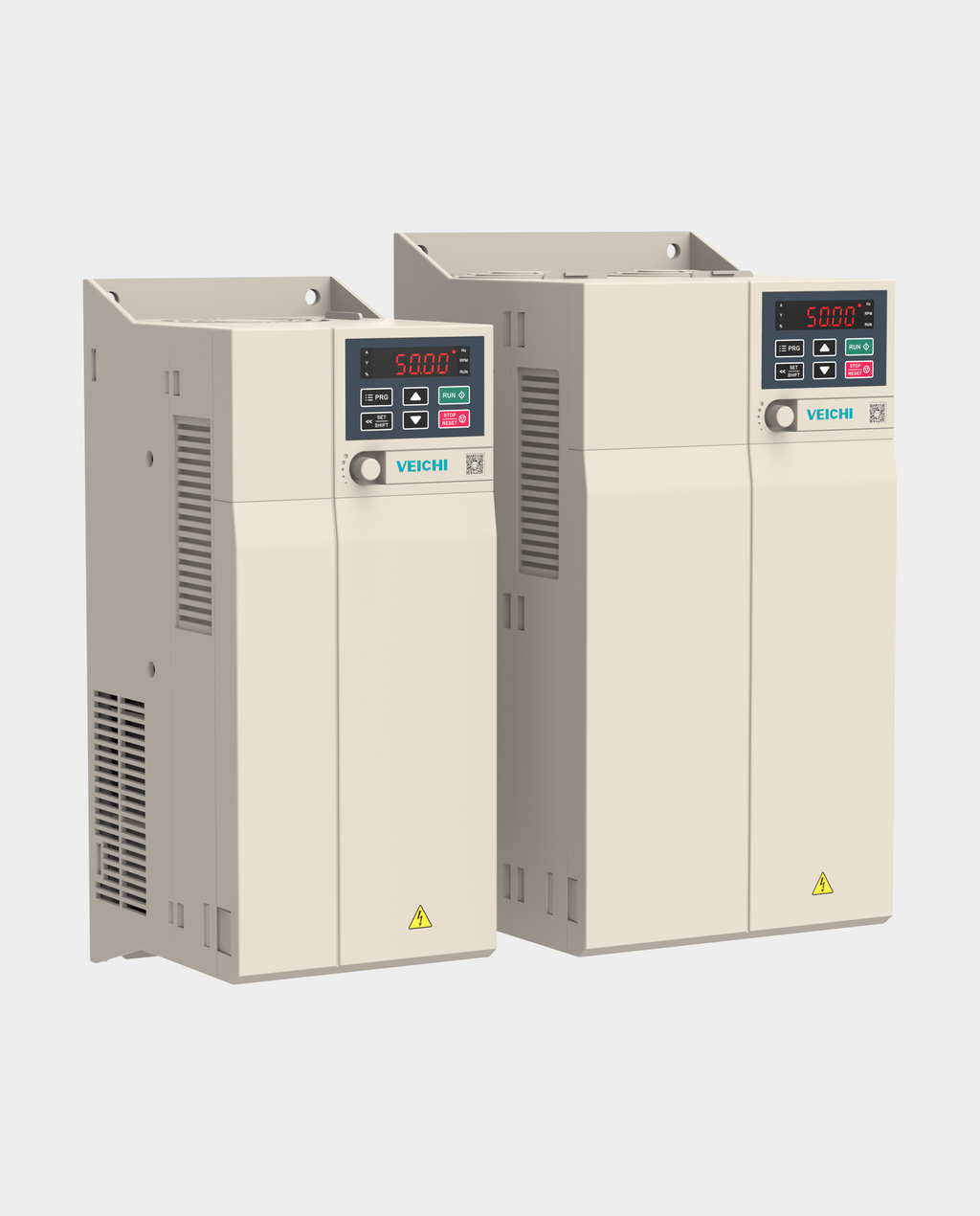

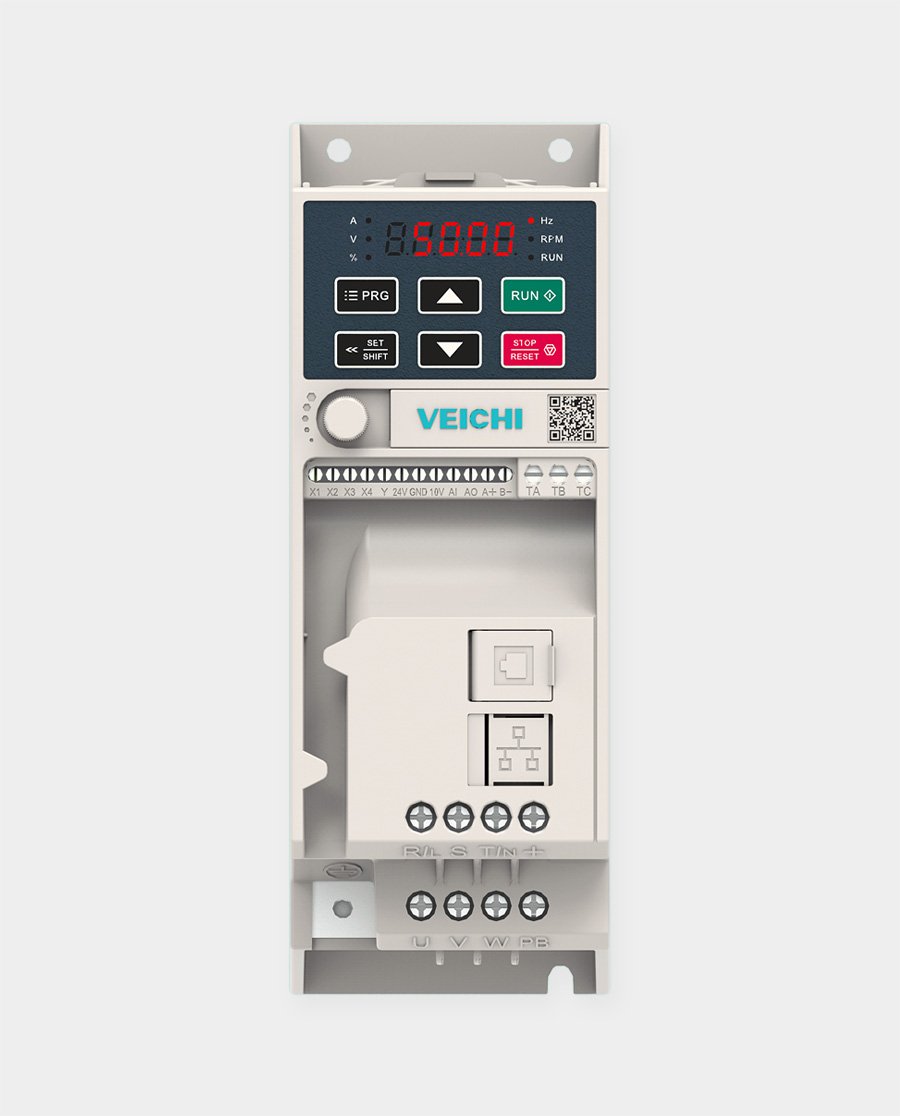

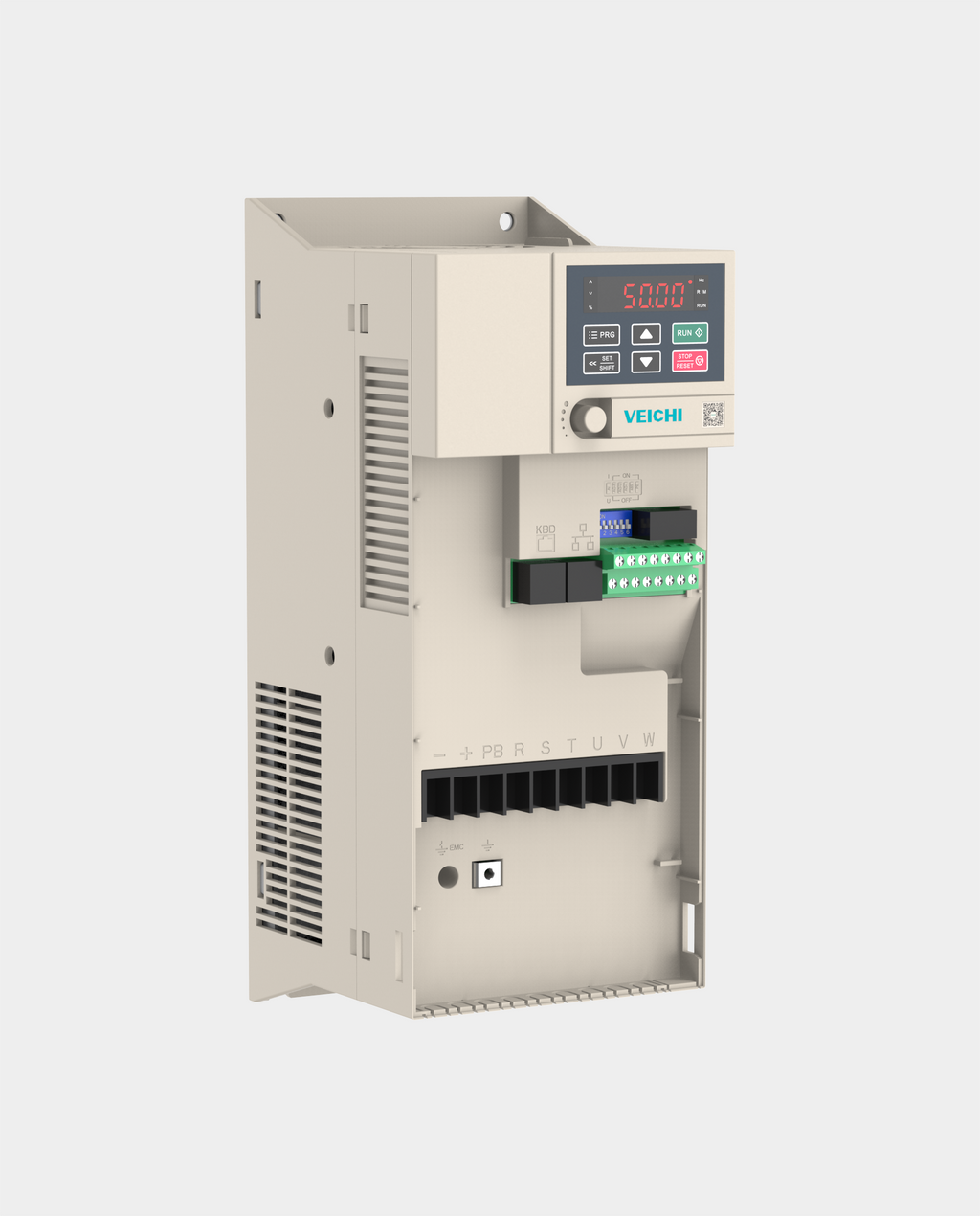

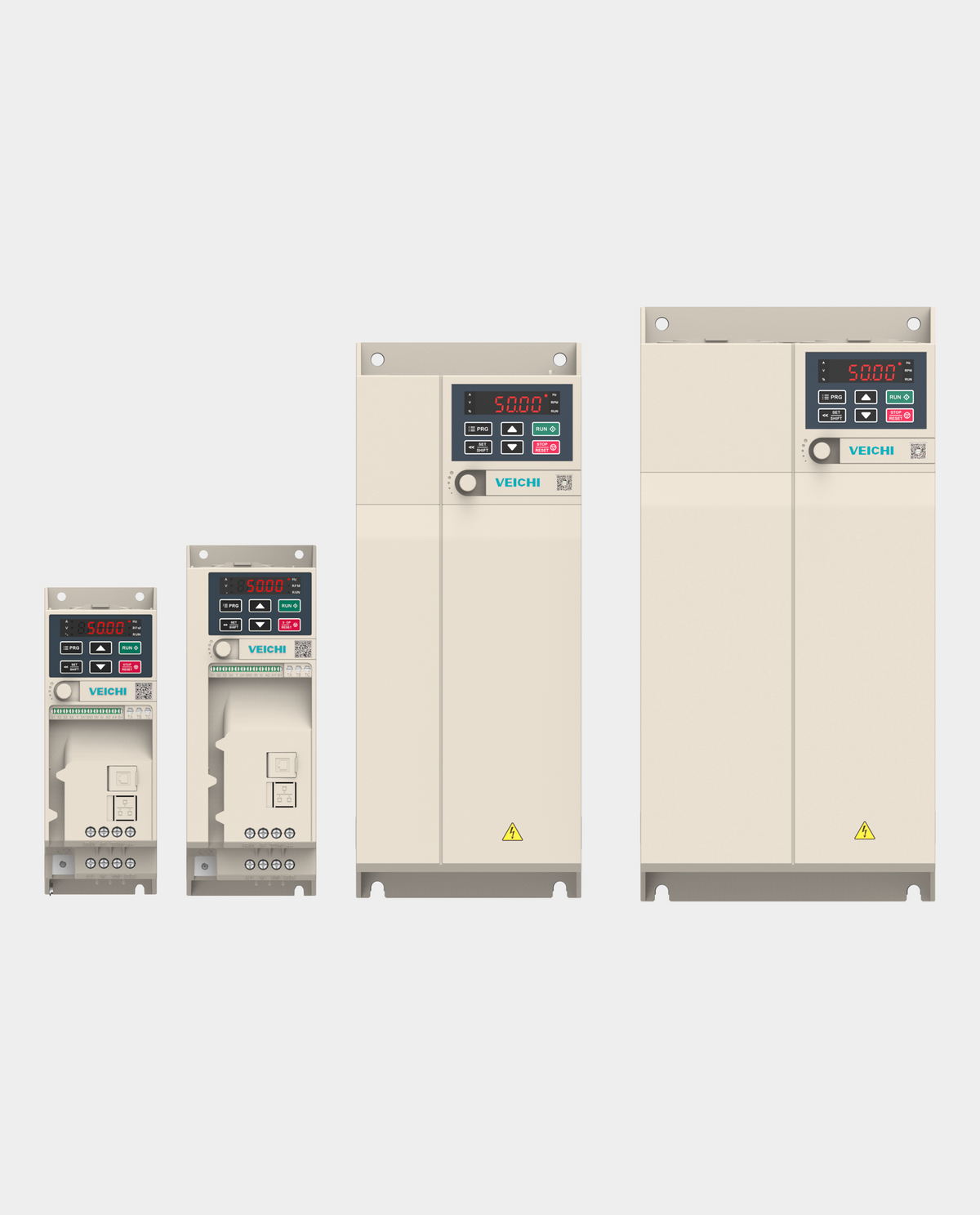

VEICHI AC10 22kW 380V 3PH VSD/VFD is a compact general-purpose AC drive for industrial motor-speed control. This configuration uses three-phase 380V input and is suited to compatible three-phase motor applications requiring adjustable speed and reliable process control.
Key Features
- Compact drive for variable-speed operation of compatible three-phase motors.
- V/F and sensorless-vector control.
- PID, multi-speed and configurable motor-control functions.
- Serial communication for compatible control and monitoring systems.
- Drive protection and configurable acceleration/deceleration.
Technical Specifications
| Series | AC10 |
|---|---|
| Rated power | 22kW |
| Input | 380V AC three phase, 50/60Hz |
| Rated output current | 45A |
| Output frequency | 0-599Hz |
| Control modes | V/F control and sensorless vector control |
| Drive efficiency | ≥96% |
| Manufacturer | Veichi |
| Output | Three-phase AC; output voltage does not exceed input voltage |
| Supply frequency | 50/60 Hz |
| Store SKU | V-AC10-22-380-3PH |
Typical Applications
Suitable for compatible pumps, fans, conveyors, mixers and general industrial machinery requiring variable-speed motor control.
Technical Resources
Browse our Technical Resources & Manuals page for manufacturer documents and information on requesting the cut sheet, datasheet or manual for your exact model.
- VEICHI AC10 product information and catalogue
- VEICHI AC10 simplified user manual
- VEICHI low-voltage-drive manuals and technical downloads
Use the documentation for the exact ordered model. Family manuals may cover options and ratings that are not included with this unit.
Selection & Compatibility
- Confirm motor voltage, full-load current, duty, braking requirements and installation conditions before commissioning. Not sure of the right size? Contact Softcore Group Industrial Solutions for a quotation.
- Select by motor nameplate voltage and full-load current, load duty, supply phase, braking requirement, cable length, environment and altitude. Confirm required accessories and the exact manual revision before installation.
Availability & Ordering
Special-order product. Availability and delivery lead time are confirmed on quotation.
Supplied by Softcore Group Industrial Solutions. Request a quotation with the model number and application requirements. Programming, installation and commissioning are included only where expressly quoted.
