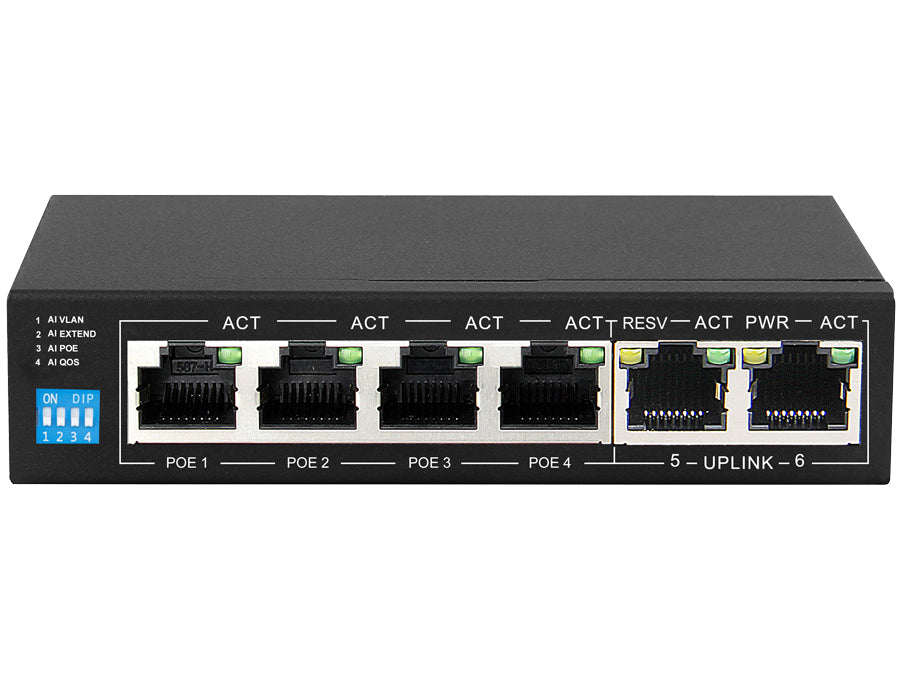

SPS-4F2F 6 Port Fast Ethernet 4 PoE 60W Switch
SPS-4F2F 6 Port Fast Ethernet 4 PoE 60W Switch
The SPS-4F2F 6 Port Fast Ethernet 4 PoE 60W Switch is a locally sourced PoE network switch for commercial and industrial-support network infrastructure. It combines powered Ethernet access with the uplink configuration stated for the model, supporting structured deployments in cabinets, control rooms and remote sites.
Key Features
- 6 Port switch configuration
- 4 PoE ports
- 60W total PoE budget
- IEEE 802.3af/at powered-device support
- VLAN, extender, PoE watchdog and QoS operating modes
Benefits
- Powers compatible network devices without separate local adaptors.
- Supports organised expansion of commercial and infrastructure networks.
- Provides practical operating modes for long-distance and managed-priority installations.
Technical Specifications
| Brand | Locally Sourced |
|---|---|
| SKU | SPS-4F2F |
| Product category | PoE Network Switches |
| Ethernet Ports | 6x 10/100 |
| Hardware Button | VLAN; Extender; PoE; QOS |
| Max. Power Consumption | 3W |
| Mounting | Desktop |
| Operating System | None |
| Operating Temperature | 0°C to 40°C |
| PoE Input | None |
| PoE Output | 802.3af/at PoE on Ports 1~4 |
| Power Input | 52V 1.15A Power Supply (Included) |
| Serial Interface | None |
| SFP Ports | None |
| Supported Voltage Range | 52V |
| Dimensions | 125 x 75 x 27mm |
Typical Applications
Wireless access points, telemetry networks, IP devices, equipment cabinets, commercial networks and structured-cabling projects.
What’s Included
1 × SPS-4F2F 6 Port Fast Ethernet 4 PoE 60W Switch. Other equipment and accessories are included only where explicitly stated.
Recommended Related Products
Cat5e/Cat6 solid-copper cable, SFP modules where applicable, network cabinets, surge protection and UPS systems.
Important: Confirm the total connected PoE load and per-port power requirement before commissioning.
