Structured Cabling Explained: Cat5e, Cat6, Cat6A, Patch Panels and Industrial Ethernet Cabling

Quick overview: This guide explains structured cabling and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Network performance depends on more than the switch, router or access point. The cabling between devices is part of the communication channel, and poor cable selection, termination or installation can create intermittent faults that are difficult to diagnose.

Structured cabling provides an organised approach to copper network infrastructure using standardised cable, outlets, patch panels, patch leads and termination hardware. In industrial environments, the same basic Ethernet principles apply, but additional factors such as electrical noise, vibration, temperature, chemicals, mechanical damage and equipment movement can influence the cabling design.

This guide explains Cat5e, Cat6 and Cat6A cabling, shielding, patch panels, connectors, PoE, industrial Ethernet cable selection, installation and testing.

What Is Structured Cabling?

Structured cabling is a planned telecommunications cabling system designed around defined pathways, termination points and distribution areas rather than individual point-to-point cables installed without an overall structure.

A typical copper Ethernet system can include:

• Horizontal cable
• Patch panels
• Network outlets
• Keystone jacks or modules
• Patch leads
• Network cabinets or racks
• Cable-management hardware

The objective is to create an infrastructure that is organised, maintainable and capable of supporting compatible network equipment.

Permanent Link vs Channel

It is useful to distinguish between the permanent installed cabling and the complete communication channel.

The permanent link generally covers the fixed cable and its terminations. The channel includes the permanent link plus patch cords and other permitted connection components.

Performance limits and maximum lengths depend on the applicable cabling standard and category, so the complete installed channel should be considered rather than only the cable printed with a category rating.

What Does Category Cable Mean?

Category ratings define performance requirements for balanced twisted-pair cabling and connecting hardware.

Common categories include Cat5e, Cat6 and Cat6A.

The category of the cable alone does not guarantee the category performance of the installed link. Connectors, patch panels, patch leads, termination quality and installation practices also affect performance.

Cat5e

Category 5e remains widely encountered in existing Ethernet installations and can support Gigabit Ethernet within the limits of the applicable standards and correctly installed channel.

It can remain suitable for some applications, but new projects should consider current bandwidth requirements, expected equipment life, PoE loads and future expansion before defaulting to an older category.

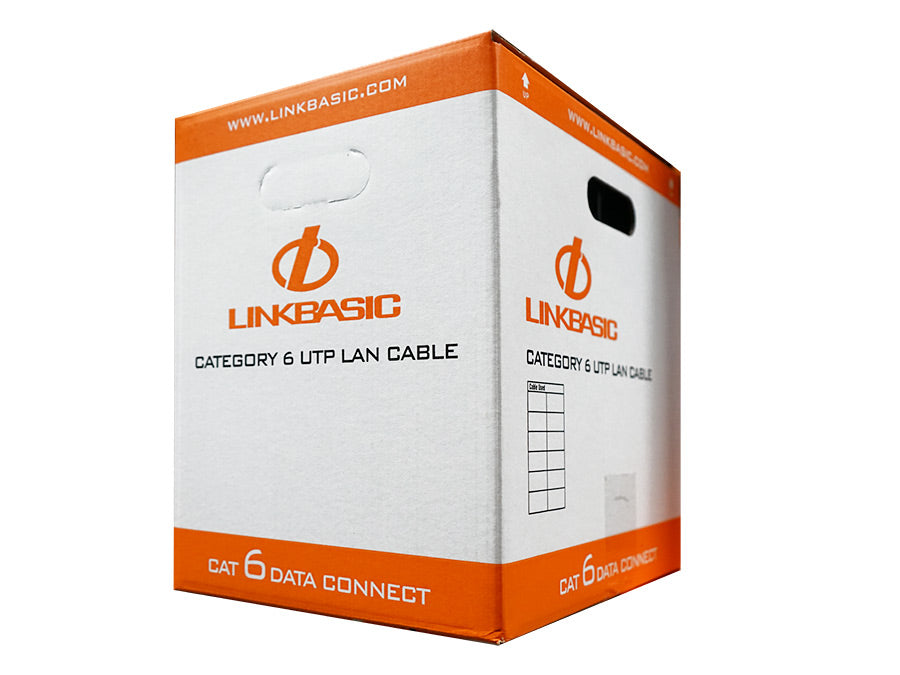

Cat6

Cat6 provides higher specified transmission performance than Cat5e and is common in modern commercial and industrial network installations.

It is widely used for Gigabit Ethernet and can support higher Ethernet speeds over defined distances when the complete channel meets the required specifications.

For many new structured cabling installations, Cat6 provides a practical balance between capability, availability and installation cost.

Cat6A

Cat6A is designed for higher-frequency performance and supports 10 Gigabit Ethernet over the standard maximum horizontal channel distance when correctly designed and installed.

Cat6A cable and connecting hardware are generally larger than Cat6, so pathways, bend radius, patch-panel density and termination space need to be considered.

It can be appropriate for higher-bandwidth backbones, access points, high-performance work areas and installations where 10 Gigabit capability is required over full structured-cabling distances.

Should Every New Installation Use Cat6A?

Not necessarily.

Cat6A can provide additional performance headroom, but it also affects cable diameter, containment fill, termination hardware, installation effort and cost.

The correct choice should reflect actual network speed, distance, PoE requirements, future plans and project specification.

Ethernet Cable Construction

Common balanced copper Ethernet cable contains four twisted pairs.

Twisting helps control electromagnetic coupling and crosstalk. Pair geometry is therefore part of the cable's electrical performance.

Excessive untwisting during termination can reduce performance, which is why termination workmanship matters.

Solid vs Stranded Conductors

Horizontal permanent cabling commonly uses solid conductors because they are suited to fixed installation and termination into insulation displacement contacts.

Patch leads commonly use stranded conductors because repeated flexing is expected.

Using the wrong connector type for the conductor construction can result in unreliable termination.

UTP and Shielded Cabling

Network cabling is available in unshielded and shielded constructions.

Unshielded twisted pair relies primarily on pair balance and twisting to control interference.

Shielded cable adds metallic screening around pairs, groups of pairs or the overall cable depending on construction.

Understanding Cable Shielding Names

Cable designations can describe an overall screen and individual pair screening.

Examples commonly encountered include U/UTP, F/UTP and S/FTP.

The exact construction should be checked on the manufacturer's datasheet rather than assuming all cables described casually as shielded are equivalent.

When Is Shielded Ethernet Useful?

Shielding can be useful in environments with elevated electromagnetic interference, including some industrial installations near drives, motors, switching equipment and power cables.

However, shielded cable is not a substitute for good routing, separation, bonding and installation practice.

The complete screened cabling system should be designed and terminated correctly.

Industrial Electrical Noise

Industrial sites can contain significant sources of electromagnetic interference, including:

• Variable speed drives
• Large motors
• Contactors
• Welding equipment
• High-current conductors
• Switchgear

Network cabling should be routed with appropriate separation from power circuits and noise sources according to applicable standards and equipment requirements.

Why Cable Separation Matters

Running data cable immediately alongside power cable can increase electromagnetic coupling and can also create safety or regulatory issues depending on the circuits and containment system.

Separation requirements depend on factors such as power level, cable construction, containment and applicable standards.

Project-specific requirements should therefore be followed rather than relying on one universal separation distance.

Crossing Power Cables

Where data and power routes must cross, installation practices commonly aim to minimise parallel exposure. The correct arrangement should follow the relevant cabling and electrical standards for the project.

Patch Panels

A patch panel provides an organised termination point for fixed network cabling.

Each installed cable terminates at the rear of the panel, while the front provides ports that can be connected to switches using patch leads.

Patch panels improve organisation and allow network equipment to be changed without repeatedly disturbing permanent cable terminations.

Loaded vs Unloaded Patch Panels

Loaded patch panels include fixed or supplied connection modules.

Unloaded or modular panels accept individual keystone-style modules.

Modular designs can provide flexibility where different media types or port quantities are required.

Patch Panel Category

The patch panel should be suitable for the required cabling category.

A high-category cable terminated on lower-performance hardware can limit the performance of the complete link.

The system should be considered end to end.

Keystone Jacks

Keystone jacks or similar modular outlets provide termination points at work areas, cabinets and equipment locations.

They should match the cable category, conductor size and shielding arrangement.

Termination should follow the manufacturer's specified wiring scheme and preparation dimensions.

T568A and T568B

T568A and T568B are recognised pair-assignment schemes used for eight-position modular Ethernet terminations.

Either scheme can be used where permitted, but the same scheme should be applied consistently within the link unless a specific crossover arrangement is intentionally required.

Modern Ethernet equipment generally supports automatic pair handling, but consistent termination remains essential for maintainability and testing.

RJ45 Is a Common Informal Term

The familiar eight-position modular Ethernet connector is often called RJ45 in everyday industry language.

For purchasing and installation, the important issue is compatibility with the required cable category, conductor type, shielding and equipment interface.

Field-Terminated Plugs

Some industrial installations use field-terminable modular plugs so horizontal or industrial cable can connect directly to equipment.

These plugs should be selected for the specific cable outside diameter, conductor size, shielding and category.

Not every plug is suitable for every Ethernet cable.

Patch Leads

Patch leads connect patch panels, switches, outlets and end devices.

They form part of the complete channel and should meet the required category and environmental conditions.

In industrial cabinets, very long or poorly managed patch leads can obstruct airflow and make troubleshooting difficult.

Patch Lead Length

Structured cabling standards place limits on channel configuration and overall length.

Adding unusually long patch leads can reduce the allowable fixed-cable length or push the complete channel beyond its design limits.

For critical installations, channel length should be checked rather than assuming any combination under a rough total is acceptable.

What Is PoE?

Power over Ethernet, or PoE, allows compatible network cabling to carry both data and DC power to devices.

Typical PoE-powered equipment includes:

• Wireless access points
• VoIP devices
• Industrial radios
• Selected sensors and controllers

Both the power sourcing equipment and powered device must support a compatible PoE method.

PoE and Cable Heating

Current flowing through copper conductors produces heat.

In large cable bundles, higher PoE power levels can increase bundle temperature. Cable conductor size, ambient temperature, bundle size, containment and installation method can therefore become important.

PoE design should follow the applicable cabling standard and cable manufacturer's guidance.

Copper-Clad Aluminium

Copper-clad aluminium, often abbreviated CCA, uses an aluminium conductor with a copper coating rather than a solid copper conductor.

For standards-based structured cabling and PoE applications, correctly specified solid copper cable is generally the appropriate choice.

CCA products can have higher resistance and different mechanical characteristics and should not be assumed equivalent to compliant copper category cable.

Industrial Ethernet Cabling

Industrial Ethernet uses Ethernet communication in environments where ordinary office cable may not be mechanically or environmentally suitable.

Industrial cable can be designed for conditions such as:

• Oil exposure
• UV exposure
• Higher or lower temperatures
• Continuous flexing
• Vibration
• Abrasion
• Moisture
• Chemical exposure

The required construction depends on the application.

Fixed Industrial Cable

Fixed industrial Ethernet cable is intended for stationary installation in trays, conduits, cabinets or machinery.

It can have tougher jackets and different shielding compared with ordinary commercial horizontal cable.

Flexible and Continuous-Flex Ethernet Cable

Machine applications can require cables that move repeatedly.

A standard patch lead is not automatically suitable for continuous flexing in cable chains or robotic systems.

Where repeated movement is expected, cable specifically rated for the required flexing duty and bend radius should be used.

Industrial Cable Jackets

Jacket material influences resistance to environmental conditions.

Depending on the product, industrial cables may be designed for improved resistance to oil, chemicals, abrasion, UV radiation or temperature.

The manufacturer's environmental ratings should be checked against site conditions.

Indoor vs Outdoor Ethernet Cable

Outdoor cable should be designed for the expected environment.

UV resistance is particularly important for exposed routes. Moisture protection can also be required for ducts, underground pathways or outdoor cabinets.

Ordinary indoor PVC cable should not be assumed suitable for prolonged outdoor exposure.

Direct Burial Cable

Where cable is intended for direct burial, the cable construction must specifically support that installation method.

Even when direct-burial cable is used, mechanical protection, route marking, separation from other services and local installation requirements still need to be considered.

Water-Blocked Cable

Some outdoor cables incorporate water-blocking materials to reduce longitudinal moisture migration.

This can be useful in wet ducts and outdoor infrastructure, but the cable's actual datasheet should be checked for the intended installation environment.

Industrial Connectors

Industrial Ethernet connections are not limited to standard office-style modular connectors.

Depending on the equipment and environment, systems can use ruggedised modular connectors, M12 Ethernet connectors or other manufacturer-specific interfaces.

Connector coding, pinout, Ethernet speed and environmental rating must match the equipment.

M12 Ethernet Connectors

M12 connectors are common on industrial machinery because their threaded or locking construction can provide improved mechanical security and environmental protection.

Different M12 codings support different applications and Ethernet performance levels, so connector type must be matched to the device and network.

Cable Bend Radius

Ethernet cable should not be bent more tightly than the manufacturer's minimum bend radius.

Excessive bending can change pair geometry, damage shielding or stress conductors.

Bend radius becomes particularly important with larger Cat6A and industrial cables.

Pulling Tension

Excessive pulling force can damage cable internally even when the outer jacket appears intact.

Installers should follow the manufacturer's maximum pulling tension and avoid crushing, kinking or twisting cable during installation.

Cable Ties and Compression

Overtightened cable ties can deform twisted-pair cable and affect electrical performance.

Cable support should secure the bundle without crushing it. Hook-and-loop fastening is often useful where frequent changes are expected.

Cable Tray and Trunking Fill

Containment should have sufficient capacity for the cable quantity and bend requirements.

Overfilled pathways make installation difficult, increase cable compression and leave no room for future expansion.

Larger Cat6A cable can materially increase required pathway size compared with smaller cable types.

Network Cabinets

Structured cabling usually terminates in a network cabinet or rack containing equipment such as:

• Patch panels
• Ethernet switches
• Fibre trays
• Routers
• UPS equipment
• Power distribution units

Cabinet depth, rack-unit capacity, ventilation and cable-management space should be planned together.

Horizontal and Vertical Cable Management

Cable-management hardware keeps patch leads organised and reduces strain on ports.

Good management also makes tracing, moves, additions and changes easier.

Patch leads should not obstruct switch ventilation or create excessive tension on connectors.

Labelling

Every permanent cable should have a consistent identifier at both ends.

A useful labelling system can identify:

• Cabinet or telecommunications room
• Patch-panel number
• Port number
• Outlet or field location

Labels should correspond with drawings or cable schedules where these are maintained.

Why Documentation Matters

Network infrastructure can remain in service through several generations of switches and connected devices.

Accurate records reduce the time required to identify cable routes and ports during faults or upgrades.

Useful documentation can include rack layouts, patch-panel schedules, outlet schedules, cable test results and network drawings.

Continuity Testing vs Certification

A basic wiremap tester can identify problems such as opens, shorts, reversals and some pair faults.

Certification testing goes further by measuring the transmission parameters required by the applicable cabling category and standard.

A cable that passes simple continuity is not automatically a standards-compliant Cat6 or Cat6A link.

Common Cabling Test Parameters

Depending on the category and test standard, certification can assess parameters such as insertion loss, return loss, near-end crosstalk and propagation characteristics.

Certification results provide evidence that the installed link meets the required performance specification.

What Is a Split Pair?

A split pair can occur when conductors are connected to the correct pin numbers but the original twisted pair relationships are not maintained.

A simple DC continuity check can sometimes appear correct while Ethernet performance is severely affected.

Proper wiremap testing helps identify this type of fault.

Common Termination Problems

Frequent causes of poor copper cabling performance include:

• Too much pair untwist
• Incorrect wiring scheme
• Wrong plug for conductor type
• Poor shield termination
• Damaged conductors
• Excessive jacket removal
• Improper strain relief
• Contaminated or damaged connectors

Industrial Ethernet and VSD Installations

Variable speed drives can be significant sources of electrical noise because of their high-frequency switching.

Ethernet cable should be routed thoughtfully around drive input and motor-output cabling, and the overall installation should follow the drive, network-equipment and cabling manufacturers' EMC guidance.

Shielding alone should not be relied upon to correct poor cable routing.

Industrial Ethernet in Control Panels

Inside control panels, Ethernet cable can connect PLCs, HMIs, VSDs, remote I/O, industrial switches and gateways.

Good panel layout should maintain practical separation between communication wiring and high-noise power circuits while allowing adequate bend radius and service access.

Copper vs Fibre for Industrial Networks

Copper Ethernet is convenient and can also support PoE, but fibre has important advantages for certain links.

Fibre can be preferable where:

• Distances exceed practical copper Ethernet limits
• Electrical isolation is desirable
• Electromagnetic interference is severe
• Building-to-building links are required
• Higher backbone bandwidth is needed

Many industrial networks use copper locally and fibre for backbone or long-distance links.

Building-to-Building Copper Links

Outdoor copper links between buildings require careful consideration of lightning, surge potential, grounding and differing earth potentials.

Fibre is often attractive for inter-building data links because it provides electrical isolation between network endpoints.

The appropriate solution depends on the site and system design.

Surge Protection

Outdoor copper Ethernet routes can be exposed to transient voltages.

Where surge protection is required, protective devices should be compatible with the Ethernet speed, PoE requirements and grounding arrangement.

Surge protection does not replace a properly designed lightning-protection and earthing system.

Ethernet Distance

Standards-based balanced copper Ethernet structured cabling is designed around defined maximum channel lengths.

Projects requiring longer distances should not simply extend copper cable indefinitely. Fibre, additional active network equipment or another suitable transmission method should be considered.

Intermediate Couplers

Every additional connection introduces another interface into the channel.

Where couplers are necessary, they should be category-rated and included within the permitted channel configuration.

Multiple improvised joins should not be used as a substitute for correctly sized permanent cabling.

PoE Extenders

PoE extenders can serve specialised applications, but they are active devices with their own environmental, bandwidth, power-budget and reliability considerations.

For permanent industrial infrastructure, the overall architecture should be evaluated rather than treating extenders as a universal solution to distance limits.

Network Cabling for Wireless Access Points

Modern wireless access points can require high data rates and substantial PoE power.

The cable category, switch port capability, PoE standard and installation temperature should therefore be considered together.

Installing suitable cabling during construction can avoid recabling when access points are upgraded later.

Network Cabling for Industrial Wireless Radios

Outdoor radios and point-to-point wireless devices frequently use Ethernet and PoE.

Outdoor-rated cable, proper gland sealing, drip loops where appropriate, surge protection and correct grounding can be important parts of the installation.

Fire Performance and Cable Sheath Ratings

Cable jacket requirements can vary according to building regulations, project standards and installation location.

Low-smoke or flame-performance requirements should be confirmed for the specific project.

A cable's data category does not by itself define its fire-performance classification.

Halogen-Free Cable

Low-smoke zero-halogen or similar cable constructions may be specified where smoke and corrosive gas emissions during fire are a concern.

The exact required classification should come from the project or applicable standard rather than assuming all LSZH-labelled products have identical performance.

Industrial Network Cabling Selection Mistakes

• Buying cable based only on a Cat6 label
• Using CCA where compliant copper cable is required
• Mixing categories of cable and connecting hardware without understanding the channel limitation
• Ignoring shielding and bonding requirements
• Running Ethernet alongside noisy power cables without considering separation
• Using indoor cable outdoors
• Using ordinary fixed cable in continuous-flex applications
• Ignoring PoE heating in large bundles
• Using the wrong plug for solid or stranded conductors
• Overtightening cable ties
• Ignoring bend radius
• Failing to label both ends
• Assuming a continuity test proves Cat6 or Cat6A performance
• Installing copper beyond the designed Ethernet channel distance
• Using copper between buildings without considering surge and earth-potential issues
• Failing to allow cabinet and pathway capacity for future expansion

A Practical Planning Checklist

For an accurate structured cabling quotation, provide as much of the following information as possible:

• Application: office, factory, plant, warehouse, outdoor infrastructure, machine network or other
• Required category: Cat5e, Cat6, Cat6A or unsure
• Ethernet speed: 100 Mbps, 1 Gbps, 2.5/5 Gbps, 10 Gbps or other
• Number of network points: ___
• Approximate cable lengths: ___
• Indoor or outdoor: ___
• Fixed or moving cable: ___
• Shielding required: yes/no/unsure
• PoE required: yes/no
• PoE device type and power requirement if known: ___
• Cable jacket requirement: PVC, LSZH, UV resistant, oil resistant or project specification
• Patch panels required: ___ ports
• Network outlets or keystones required: ___
• Patch leads required: quantity and lengths
• Network cabinet or rack required: yes/no
• Industrial connectors required: RJ45-style, M12 or other
• Existing cable tray or trunking: yes/no
• High electrical-noise environment: yes/no
• VSDs or large motors nearby: yes/no
• Testing requirement: wiremap, certification or project specification
• Labelling requirement: ___
• Quantity: ___

For upgrades, photographs of existing patch panels, cabinets, cable markings, outlets and network equipment can help identify compatibility and required accessories.

How This Fits Into the Wider System

A typical industrial communication path can look like:

PLC or field device → industrial Ethernet cable → industrial switch → copper or fibre backbone → router or gateway → SCADA or remote network

Other installations connect PoE access points, radios and telemetry equipment through network cabinets, patch panels and structured copper infrastructure.

For a new requirement, the cable category, environment, distance, number of points, shielding, PoE requirements and termination hardware are useful starting points. For existing installations, cable markings and photographs of patch panels, outlets and connected equipment can help identify suitable components.

Technical Note

This article provides general industrial networking information. Structured cabling category performance, cable length, PoE loading, pathway fill, fire performance, separation from power circuits, EMC, earthing, surge protection and testing requirements must be assessed for the specific installation. Manufacturer documentation, applicable cabling and electrical standards, engineering specifications, site requirements and statutory requirements take precedence. Network and electrical infrastructure should be designed, installed, terminated and tested by appropriately competent persons within the required scope.

Related catalogue examples: Structured Cabling. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
