SFP modules are small removable transceivers used in network switches, routers, media converters and other communications equipment. They provide a flexible way to connect network equipment to fibre optic or, in some cases, copper links without permanently fixing one interface type into the device.
That flexibility is useful, but it also means an SFP cannot be selected simply because it physically fits into the slot. Network speed, fibre type, wavelength, connector, link distance and equipment compatibility all need to match.
This guide explains the practical specifications purchasing and technical teams should check when selecting or replacing an SFP transceiver.
What Does SFP Mean?
SFP stands for Small Form-factor Pluggable.
An SFP is a compact transceiver that plugs into a compatible network port and provides the physical interface required for the communications link.
SFP slots are commonly found on:
- Industrial Ethernet switches
- Managed network switches
- Media converters
- Routers and gateways
- Fibre access equipment
- Other network infrastructure
One advantage of an SFP-based design is that the same switch family may be used with different optical interfaces depending on the application.
Why Doesn't the Switch Just Have a Fixed Fibre Port?
Some switches do have fixed optical ports. SFP slots provide additional flexibility because the transceiver can be selected according to the required fibre type, wavelength, distance and speed.
For example, one installation may require a short multimode fibre link while another requires a longer single-mode connection. A suitable SFP-based switch can potentially support either application by using the correct compatible transceiver.
SFP vs SFP+
SFP and SFP+ modules are commonly associated with different Ethernet speeds.
Standard SFP modules are widely used for Gigabit Ethernet applications, while SFP+ modules are commonly used for 10 Gigabit Ethernet.
However, physical similarity does not mean automatic compatibility.
A switch port must support the required module type and data rate. An SFP+ slot may support certain lower-speed modules on some equipment, but this should never be assumed without checking the manufacturer's documentation.
Other Pluggable Transceiver Formats
Higher-speed network equipment can use other transceiver formats such as SFP28, QSFP+ and QSFP28.
These are relevant to faster network interfaces and are not simply alternative names for an ordinary SFP.
Always identify the exact port and speed requirement before ordering a transceiver.
Single-Mode vs Multimode Fibre
One of the most important SFP specifications is whether it is designed for single-mode or multimode fibre.
Multimode fibre is commonly used for shorter optical links within buildings, plants, data rooms and local infrastructure.
Single-mode fibre is widely used for longer links and network backbones.
The correct choice depends on the installed fibre infrastructure, required distance and compatible optics at both ends of the link.
A single-mode transceiver should not be ordered merely because its distance rating is higher. The transceiver must match the actual fibre system.
What Does Wavelength Mean?
Optical transceivers transmit light at specified wavelengths, commonly expressed in nanometres.
Examples encountered in fibre networking can include 850 nm, 1310 nm and 1550 nm, although many other wavelengths are used depending on the optical technology.
The wavelength must be appropriate for the transceiver type and link design.
For a conventional duplex fibre link, the transceivers at both ends normally need compatible optical characteristics.
850 nm SFPs
850 nm optics are commonly associated with short-range multimode fibre Ethernet applications.
The exact supported distance depends on the Ethernet standard, transceiver and fibre type.
Do not use the wavelength alone to determine compatibility. Check the complete module specification.

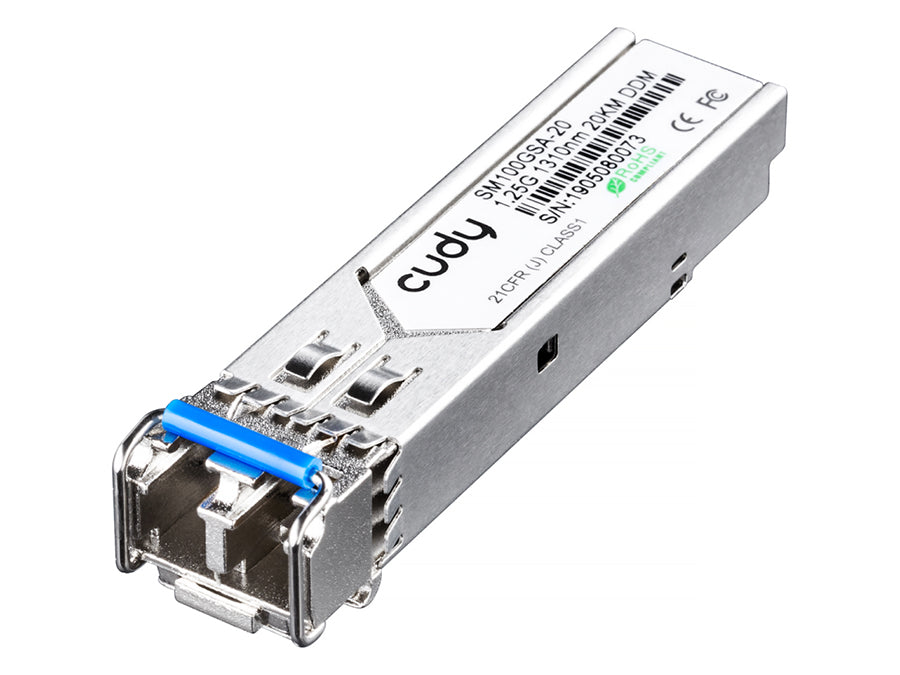

1310 nm SFPs
1310 nm is commonly used in single-mode Ethernet transceivers and is also encountered in other optical applications.
Single-mode SFPs using 1310 nm can support substantially longer distances than typical short-range multimode optics, depending on the module specification and link loss.
1550 nm and Longer-Distance Optics
1550 nm and other optical wavelengths are commonly encountered in longer-distance fibre systems and specialised optical applications.
Long-reach optics need to be selected according to both distance and optical budget. A module should not be chosen solely because its advertised maximum distance exceeds the cable length.
What Does the Distance Rating Mean?
SFP modules are often described with approximate reach categories such as 550 m, 2 km, 10 km, 20 km, 40 km or longer.
These figures are useful selection indicators, but the real link must still satisfy the transceiver's optical specifications.
Actual performance depends on factors including:
- Fibre type
- Fibre length
- Connector losses
- Splice losses
- Patch panels
- Transmitter output
- Receiver sensitivity
- Other components in the optical path
What Is an Optical Budget?
The optical budget represents the amount of optical loss that can be tolerated between the transmitter and receiver while maintaining a reliable link.
Every connector, splice and length of fibre introduces some loss.
The link should therefore be assessed against the transmitter and receiver specifications rather than relying only on a nominal kilometre rating.
For critical or complex fibre links, proper optical design and testing are important.
What Connector Does an SFP Use?
Many Ethernet SFP transceivers use LC fibre connectors, particularly duplex optical modules.
Other connector arrangements exist, especially for specialised or bidirectional optics.
When ordering, confirm the connector on the transceiver and the connector used by the installed fibre patching infrastructure.
If the fibre terminates in SC connectors but the SFP uses LC, an appropriate SC-to-LC patch lead may be required.
Duplex Fibre SFPs
A conventional duplex fibre Ethernet transceiver normally uses two fibre paths: one for transmit and one for receive.
The two ends must be connected so that the transmitter at one end reaches the receiver at the other.
If transmit is connected to transmit rather than receive, the link will not establish.
What Is a BiDi SFP?
BiDi means bidirectional.
A BiDi transceiver can transmit and receive over a single fibre strand by using different optical wavelengths in each direction.
This can be useful where fibre core availability is limited or where a single-strand architecture has been designed.
BiDi Modules Must Be Used as Matching Pairs
BiDi transceivers are normally paired so that the transmit wavelength of one module corresponds with the receive wavelength of the module at the opposite end.
For example, one side might transmit on one wavelength and receive on another, while its partner uses the opposite arrangement.
Two identical BiDi modules are therefore not automatically a valid pair.
When replacing a BiDi module, identify the exact module at the opposite end before ordering.
What Is a Copper SFP?
Not every SFP uses optical fibre.
Copper SFP transceivers are available for certain Ethernet applications and provide an RJ45 interface from a compatible SFP slot.
Compatibility, speed, cable distance and power requirements should be checked carefully because not every switch supports every copper SFP.
Switch Compatibility Matters
A transceiver can be electrically and optically appropriate yet still not be accepted by a particular network device.
Some manufacturers validate or restrict supported transceivers, and equipment firmware can check module identification information.
Before ordering, check the switch or device manufacturer's supported transceiver list where available.
This is especially important for managed industrial switches and critical network infrastructure.
Does the SFP Brand Have to Match the Switch Brand?
Not always, but compatibility must be confirmed.
Some network equipment works with a broad range of standards-compliant transceivers, while other equipment expects approved or coded modules.
A third-party module being physically compatible does not guarantee that the switch will recognise or support it.
For purchasing, the safest approach is to specify the exact switch model together with the required optical link.
Industrial Temperature SFPs
Industrial switches can be installed in outdoor cabinets, plant rooms and other environments with wider temperature ranges than a typical office.
If the switch is specified for an extended operating temperature but the installed SFP is only rated for a narrower commercial range, the transceiver can become the limiting component.
Where environmental conditions require it, specify an industrial-temperature transceiver compatible with the switch.
Data Rate Must Match
The SFP must support the data rate required by the network port and link.
Common examples include 100 Mbps optical modules, 1 Gigabit SFPs and 10 Gigabit SFP+ modules.
Do not assume that a higher-speed module will automatically negotiate down to every lower speed.
The port, transceiver and remote equipment must support a compatible operating mode.
What Do SX, LX and Other Labels Mean?
Ethernet optical interfaces are often described with terms such as SX, LX and other reach-specific designations.
These labels relate to particular Ethernet physical-layer specifications and are useful when matching equipment.
However, purchasing should still confirm speed, wavelength, fibre type, connector and distance rather than relying only on an abbreviated product name.
Can You Mix Different SFP Manufacturers at Opposite Ends?
In many standards-based Ethernet links, the transceivers at opposite ends do not need to be from the same manufacturer provided their optical and Ethernet specifications are compatible with each other and each host device supports its installed module.
However, host-device compatibility remains important at both ends.
For BiDi links, wavelength pairing also has to be correct.
Why a Fibre Link Might Stay Down After Replacing an SFP
A failed link does not automatically mean the replacement SFP is faulty.
Possible causes include:
- Wrong fibre type
- Incorrect wavelength
- Wrong data rate
- Unsupported transceiver
- Transmit and receive fibres reversed incorrectly
- Dirty optical connectors
- Damaged patch leads
- Excessive optical loss
- Incorrect BiDi pairing
- Remote equipment failure
- Port configuration
- Fibre break or poor splice
Dirty Fibre Connectors
Contamination is a common cause of fibre problems.
Dust, oil or debris on an optical connector can increase loss and cause intermittent or failed links.
Appropriate inspection and cleaning procedures should be used before connecting fibre interfaces.
Unused optical ports and patch leads should remain protected with suitable dust caps.
Never Look Directly Into a Fibre Transceiver
Optical communications equipment can emit light that is not visible to the human eye.
Do not look into an active fibre port, transceiver or connector. Follow the manufacturer's safety instructions and appropriate fibre handling procedures.
Replacing an Existing SFP
The easiest way to source a replacement is usually to provide the complete manufacturer and part number from the existing transceiver.
If that module is obsolete or unavailable, useful information includes:
- Switch manufacturer and model
- Existing SFP part number
- Port speed
- Single-mode or multimode fibre
- Wavelength
- Connector type
- Link distance
- Duplex or BiDi operation
- Remote transceiver model
- Operating temperature requirement
Clear photographs of the existing module label can be particularly helpful.
Do Not Replace Only From the Colour of the Pull Tab
SFP modules often use coloured labels or pull tabs, but colour conventions are not a reliable substitute for reading the specification.
Two modules can look almost identical while using different wavelengths, distances or fibre types.
Always use the part number and technical specification.
Common SFP Selection Mistakes
Common mistakes include:
- Ordering by connector type only
- Confusing SFP and SFP+
- Ordering single-mode optics for multimode fibre
- Not checking wavelength
- Ignoring link distance
- Assuming every SFP works in every switch
- Ordering two identical BiDi modules instead of a matched pair
- Ignoring operating temperature
- Not checking the remote-end transceiver
- Assuming a physically fitting module supports the required speed
- Buying a long-reach module without checking the optical design
A Practical Planning Checklist
When requesting an SFP quotation, provide as much of the following as possible:
- Switch or device manufacturer: ___
- Switch or device model: ___
- Existing SFP part number: ___
- Required speed: ___
- Module type: SFP, SFP+ or other
- Fibre type: single-mode, multimode or unknown
- Wavelength: ___
- Connector: LC, SC or other
- Link distance: ___
- Duplex or BiDi: ___
- Remote-end SFP model: ___
- Operating temperature: ___
- Industrial environment: yes, no or details
- Quantity: ___
If you are unsure of the optical specification, provide photographs of the existing transceiver labels and the exact models of the network equipment at both ends of the link.
For replacement SFP enquiries, send the exact switch model, existing transceiver part number and clear photographs of the module label where possible. This greatly reduces the risk of ordering an incompatible optical interface.
Technical Note
This article provides general networking information. Fibre type, optical budget, wavelength, equipment compatibility, connector configuration and environmental suitability must be assessed for the specific installation. Manufacturer documentation and applicable project requirements take precedence, and critical fibre network design, testing and troubleshooting should be undertaken or verified by appropriately competent personnel.
