Remote I/O Explained: How Remote I/O Modules Work in Industrial Automation

Quick overview: This guide explains remote i/o and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

As industrial machines and processes grow, it is not always practical to run every sensor, switch, transmitter and actuator cable back to one central PLC panel. Remote I/O provides another approach by placing input and output modules closer to the field equipment and exchanging the resulting data with the controller over an industrial communications network.

This can reduce long field-cable runs, simplify distributed machine architecture and make expansion more practical. However, selecting remote I/O involves much more than counting inputs and outputs. Signal type, voltage, analogue range, isolation, communications protocol, network architecture, environmental conditions, module density and PLC compatibility all matter.

This guide explains the fundamentals of remote I/O and the information purchasing and technical teams should establish before selecting or replacing remote I/O equipment.

What Is Remote I/O?

I/O stands for input and output.

Inputs bring information from the field into the control system. Outputs allow the control system to command field devices.

Remote I/O places these input and output channels away from the main PLC or controller and connects them back through a communications network.

A simplified architecture can look like:

Field devices → Remote I/O station → Industrial network → PLC

The PLC still executes the control logic in a typical architecture, while the remote I/O station provides the physical connection to distributed field signals.

Local I/O vs Remote I/O

Local I/O is installed directly with or adjacent to the PLC, commonly on the same rack, backplane or local expansion system.

Remote I/O is physically separated from the controller and communicates over a supported network or fieldbus.

Neither approach is automatically better. A compact machine with all field devices close to one panel may be well suited to local I/O. A large conveyor, process plant, water installation or distributed machine can benefit from remote I/O positioned closer to field equipment.

Why Use Remote I/O?

Remote I/O can provide several practical benefits when correctly applied:

• Reduced long-distance field wiring
• Smaller cable bundles between plant areas
• Distributed control-panel architecture
• Easier expansion in remote sections of a machine or process
• Local termination of field devices
• Potentially simpler fault isolation
• Flexible integration of different signal types

The benefit depends on the installation. Remote I/O introduces network, power and communications dependencies that also need to be engineered correctly.

Remote I/O vs a PLC

A remote I/O station is not necessarily a PLC.

A PLC normally contains a processor that executes a control program. A remote I/O station commonly collects and distributes field signals under the control of a PLC or other controller.

Some modern products blur this distinction by combining control, I/O and communications functions, so the actual product architecture should always be checked.

Remote I/O vs HMI

An HMI provides the operator interface. Remote I/O provides physical field signal interfaces.

For example, a level transmitter may connect to a remote analogue input module. The remote I/O communicates the measured value to the PLC, and the PLC data can then be displayed on the HMI.

A simplified path can therefore be:

Level transmitter → Remote analogue input → PLC → HMI

These devices perform different functions but work together in the complete automation architecture.

Digital Inputs

A digital input represents a discrete state such as on or off, open or closed, true or false.

Typical digital input devices include:

• Limit switches
• Pushbuttons
• Proximity sensors
• Float switches
• Pressure switches
• Auxiliary contacts
• Relay contacts

When selecting a digital input module, confirm the required input voltage, wiring arrangement and sensor type.

Digital Outputs

Digital outputs provide discrete control signals to devices such as:

• Relays
• Contactors
• Solenoid valves
• Indicator lamps
• Buzzers
• Interposing relays

The output module must be suitable for the load type, voltage and current.

PLC and remote I/O outputs should not be assumed capable of switching every field load directly. Interposing relays or other interface devices may be required.

Transistor vs Relay Outputs

Digital output modules can use different output technologies.

Transistor outputs are electronic outputs commonly used for DC loads and can support faster switching depending on the module.

Relay outputs use electromechanical contacts and can provide electrical isolation and switching flexibility within their ratings, but have mechanical life and switching-speed limitations.

The correct output type depends on the field device and application.

Sourcing and Sinking

Sourcing and sinking describe current flow and wiring conventions commonly encountered in DC industrial I/O.

In simplified terms, a sourcing device supplies current while a sinking device provides the return path.

PNP sensors are commonly associated with sourcing outputs, while NPN sensors are commonly associated with sinking outputs.

The field device and I/O module wiring must be compatible. A module should not be selected merely because both products are described as 24 V DC.

PNP vs NPN Sensors

PNP and NPN describe transistor output arrangements used by many industrial sensors.

PNP sensors are widely used in many industrial control systems, but existing equipment can use either arrangement.

When replacing a digital input module or sensor, verify the existing wiring and device type rather than assuming the convention.

Dry Contact Inputs

A dry contact is a voltage-free contact provided by a relay, switch or other device.

Whether a remote I/O module can directly accept a dry contact depends on the module's input circuit and external wiring arrangement.

The term dry contact does not by itself define the voltage that should be applied through the contact.

Analogue Inputs

Analogue inputs measure continuously varying electrical signals representing process values.

Common industrial analogue signals include:

• 4–20 mA
• 0–20 mA
• 0–10 V
• ±10 V
• RTD resistance inputs
• Thermocouple millivolt signals

The analogue input module must support the exact signal type and range used by the field device.

4–20 mA Inputs

4–20 mA is widely used for industrial process instrumentation.

A transmitter converts the measured variable into a current signal, with 4 mA normally representing the lower end of the configured measurement range and 20 mA the upper end.

When selecting a remote analogue input module, confirm whether the input is designed for current, whether the transmitter is two-wire, three-wire or four-wire, and how loop power is provided.

Voltage Analogue Inputs

Voltage inputs such as 0–10 V are used in many control applications.

Voltage signals can be more sensitive to wiring resistance, reference potential and electrical noise over long cable routes than current-loop signals.

Signal cable routing, shielding and grounding practices should follow the equipment manufacturer's requirements and site standards.

Analogue Outputs

Analogue outputs provide variable command signals to compatible field devices.

Examples include:

• VSD speed references
• Control valve position commands
• Actuator references
• External controllers

Common analogue output ranges include 4–20 mA and 0–10 V.

The output type, load impedance and field device requirements must be compatible.

RTD Input Modules

RTD modules are designed to measure resistance temperature detectors such as Pt100 or Pt1000 sensors where supported.

Important specifications can include:

• Supported RTD type
• 2-wire, 3-wire or 4-wire connection
• Measurement range
• Resolution
• Accuracy
• Channel isolation

A standard voltage or current analogue input should not automatically be substituted for a dedicated RTD input.

Thermocouple Input Modules

Thermocouples generate small voltage signals related to temperature and require suitable input electronics.

A thermocouple module should support the required thermocouple type, such as Type J, K or another specified type.

Cold-junction compensation, accuracy, wiring and extension-cable type are important considerations.

Analogue Resolution

Analogue modules convert continuous electrical signals into digital values.

Resolution describes how finely the module can represent the input range and is commonly expressed in bits or counts.

Higher resolution can provide finer measurement granularity, but resolution alone does not determine overall measurement accuracy.

Accuracy, noise, sensor performance, wiring and calibration also matter.

Accuracy vs Resolution

Resolution and accuracy are different specifications.

A module can provide many digital counts while still having a larger overall measurement error due to its analogue circuitry and environmental conditions.

Where process accuracy is important, review the manufacturer's complete accuracy specification rather than comparing products only by bit resolution.

Channel Isolation

Isolation electrically separates parts of the I/O circuitry.

Depending on the module, isolation can exist between:

• I/O and the communications bus
• Groups of channels
• Individual channels
• Power and signal circuits

Isolation can help manage ground-potential differences and electrical noise, but the exact isolation architecture varies substantially between products.

Do not assume that every channel is individually isolated because the module is described as isolated.

Common vs Individually Isolated Channels

Some modules group several inputs around a common reference. Others provide greater isolation between channels.

This can become important when instruments are powered from different supplies or are located in electrically different parts of a plant.

Review the module wiring diagram before final selection.

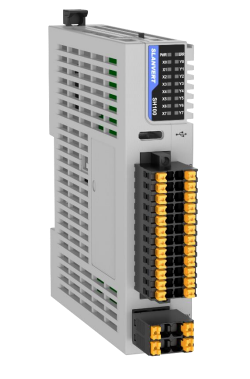

Modular Remote I/O

Modular remote I/O systems use a communications head, bus coupler or adapter together with separate I/O modules.

A station can therefore be assembled according to the application, for example:

• 16 digital inputs
• 16 digital outputs
• 8 analogue inputs
• 4 analogue outputs
• 4 RTD inputs

This architecture can provide flexibility and easier future expansion.

Fixed Remote I/O

Fixed remote I/O products provide a predetermined combination of inputs and outputs in one device.

They can be economical and compact where the required signal count closely matches the unit.

The trade-off is usually less expansion flexibility than a modular station.

What Is a Bus Coupler?

A bus coupler or remote I/O adapter connects the local I/O modules to the industrial network.

It can provide functions such as:

• Network communications
• I/O bus management
• Station diagnostics
• Addressing or configuration
• Power distribution depending on the platform

The coupler must support the required network protocol and the selected family of I/O modules.

Remote I/O Communications

Remote I/O can communicate using many industrial protocols and networks.

Examples include:

• PROFINET
• EtherNet/IP
• Modbus TCP
• Modbus RTU
• PROFIBUS
• CAN-based systems
• Manufacturer-specific fieldbuses
• Other industrial Ethernet systems

The PLC and remote I/O station must support a compatible communications architecture.

Ethernet Port Does Not Mean PLC Compatibility

Two devices having RJ45 Ethernet ports does not guarantee that they can exchange I/O data.

The devices need compatible protocols, device descriptions, configuration methods and controller support.

Always identify the PLC model and required industrial protocol when requesting remote I/O.

Remote I/O Over Modbus TCP

Modbus TCP is commonly used to exchange I/O data over Ethernet.

A remote I/O device can expose digital and analogue data through Modbus registers or coils, which a PLC, SCADA system or other Modbus TCP client can read or write depending on the device architecture.

Register maps, data types, scaling, addressing and communication timeouts need to be configured correctly.

Remote I/O Over Modbus RTU

Modbus RTU commonly operates over RS-485 serial networks.

Remote I/O stations using Modbus RTU require correct serial configuration including:

• Baud rate
• Parity
• Stop bits
• Device address
• RS-485 wiring
• Termination where required

Serial network topology and grounding practices should follow the equipment documentation.

PROFINET Remote I/O

PROFINET remote I/O is widely used in Ethernet-based automation systems.

Compatibility involves more than physical Ethernet connectivity. The PLC engineering platform normally requires the appropriate device description and configuration for the remote station.

For replacement or expansion work, confirm the controller platform, engineering software and existing network architecture.

EtherNet/IP Remote I/O

EtherNet/IP remote I/O exchanges industrial control data using the EtherNet/IP protocol.

The controller, adapter and engineering environment need to support the required device profile and connection configuration.

Network switches, addressing and industrial network design should also be appropriate for the application.

Remote I/O and Industrial Ethernet Switches

Ethernet-based remote I/O often connects through industrial Ethernet switches.

The switch may need to support:

• Required port count
• Suitable speed
• Managed network functions
• VLANs where used
• Redundancy features where required
• Fibre uplinks
• Industrial temperature and power requirements

The remote I/O station and network infrastructure should be considered together rather than as unrelated purchases.

Remote I/O Over Fibre

The remote I/O module itself may use copper Ethernet while the longer network path uses fibre.

A typical architecture could be:

Remote I/O → Industrial Ethernet switch → Fibre link → Industrial Ethernet switch → PLC network

Fibre can be useful for long distances, electrical isolation and environments with significant electromagnetic interference.

Remote I/O and Gateways

A gateway can be used where devices use different communications protocols, provided the gateway specifically supports the required conversion.

For example, a gateway may exchange data between a serial Modbus RTU device and a Modbus TCP network.

A gateway should not be assumed capable of converting arbitrary industrial protocols. Exact protocol support and data mapping must be verified.

Remote I/O and VSDs

VSD control can use hardwired I/O, network communications or a combination of both.

Remote I/O can provide distributed digital or analogue signals for drive commands and feedback where this architecture is appropriate.

Alternatively, the PLC may communicate directly with the VSD over an industrial network.

The choice depends on the required control, diagnostics, network architecture and existing equipment.

Remote I/O and Instrumentation

Remote I/O is particularly useful in process applications because transmitters and sensors can terminate near the field area instead of running individual signal cables all the way to the central control room.

Typical signals can include:

• Pressure transmitters
• Level transmitters
• Flow instruments
• Temperature sensors
• Valve feedback
• Pump status

Signal type and instrument power requirements must be considered when selecting the I/O modules.

Powering a Remote I/O Station

Remote I/O requires a suitable local power supply.

Many industrial systems operate from 24 V DC, but the actual voltage and current requirements depend on the platform.

The power design can need to support:

• Bus coupler or adapter
• I/O modules
• Field sensors
• Output loads or interposing devices
• Network equipment

Module power and field power can be separated on some platforms.

Power Budget

Modular I/O platforms can have limits on the amount of current available through the internal bus or power contacts.

A large station may require additional power-feed or segmentation modules.

When building a modular station, verify the manufacturer's station power calculations rather than assuming modules can be added indefinitely.

Redundant Power

Some remote I/O and network devices support redundant DC power inputs.

This can improve availability when connected to appropriately independent supplies.

Two terminals connected to the same failed power source do not create meaningful power redundancy.

Network Redundancy

Critical applications can require network redundancy so a single cable or switch failure does not isolate the remote station.

Supported redundancy mechanisms depend on the PLC, remote I/O platform and network equipment.

Do not assume that adding a second Ethernet cable automatically creates a valid redundant control network.

Update Time and Determinism

Remote I/O adds a communications path between the field signal and controller.

For general process monitoring, timing requirements may be modest. High-speed machine control can require predictable update times and carefully selected network architecture.

Where timing is critical, verify the remote I/O system's update performance and controller integration rather than treating every Ethernet I/O product as equivalent.

High-Speed Inputs

Standard digital inputs are not necessarily suitable for high-frequency pulse counting or very fast events.

Applications involving encoders, flow pulses or high-speed sensors may require specialised counter or high-speed input modules.

Specify the required pulse frequency and function before selecting the module.

High-Speed Outputs

Applications requiring pulse trains, stepper control or other fast output functions can require specialised modules.

Ordinary relay outputs are particularly unsuitable for high-speed repetitive switching.

Check the controller architecture and module function for motion-related requirements.

Safety I/O

Safety-related inputs and outputs require specially designed safety control equipment and an appropriate safety architecture.

An ordinary remote I/O module should not be used as a safety I/O module simply because it can read an emergency-stop contact.

Safety PLCs, safety I/O, approved network protocols and validated machine safety design may be required depending on the application.

Remote I/O in Harsh Environments

Remote stations can be installed in control panels, field enclosures or distributed machine locations.

Consider:

• Operating temperature
• Humidity
• Dust
• Water exposure
• Vibration
• Corrosive atmosphere
• Electrical noise
• Altitude where relevant

Standard DIN-rail modules normally rely on the surrounding enclosure for environmental protection.

IP-Rated Distributed I/O

Some distributed I/O products are designed for installation directly on machinery and provide higher ingress-protection ratings.

These can reduce the need for local field enclosures in suitable applications.

The connectors, cabling and installation method must maintain the required environmental rating.

DIN-Rail Remote I/O

Many remote I/O systems are designed for DIN-rail mounting inside electrical or control panels.

When planning the enclosure, allow for:

• Module width
• Wiring ducts
• Terminal access
• Network connectors
• Power supplies
• Heat dissipation
• Future expansion

A modular station that fits numerically across the DIN rail still needs practical wiring and maintenance clearance.

Terminal Blocks and Removable Connectors

I/O products use different field-wiring arrangements, including fixed terminals and removable terminal blocks.

Removable connectors can simplify module replacement, but they are not necessarily interchangeable between product families.

When replacing a module, confirm whether the terminal block is included or ordered separately.

Channel Density

Modules can provide different numbers of channels, such as 4, 8, 16 or 32 digital points.

Higher-density modules reduce panel space and cost per point, but can concentrate more field wiring into one module and reduce spare-channel flexibility.

Choose channel density based on panel layout, maintenance needs and expansion strategy, not only the lowest cost per input.

Spare I/O Capacity

Providing some spare I/O can make future plant changes easier.

However, spare capacity should be planned deliberately. Adding unused modules simply for possible future use increases cost and panel space.

Modular remote I/O can allow future modules to be added if the station, power and network architecture support expansion.

Diagnostics

Modern remote I/O platforms can provide diagnostics beyond a simple input or output state.

Depending on the module, diagnostics can include:

• Communication failure
• Module failure
• Channel fault
• Wire break detection
• Short-circuit indication
• Overload
• Power-supply status

The exact diagnostic functions depend on the product and signal type.

Wire-Break Detection

Selected analogue and specialised modules can detect certain open-circuit or wire-break conditions.

For a 4–20 mA loop, current below the normal measurement range can also be used by appropriately designed systems to identify some fault conditions.

The instrument, I/O module and PLC logic must be configured consistently for meaningful diagnostics.

Fail-Safe Behaviour

When communication between the PLC and remote I/O is lost, outputs need a defined behaviour.

Depending on the system, outputs may:

• Turn off
• Hold their last state
• Move to configured substitute values
• Follow another defined fallback strategy

The correct behaviour is application-specific and must be considered during control-system design.

Safety functions require separate safety engineering and should not rely on ordinary communications fallback alone.

Addressing and Configuration

Remote I/O stations require configuration within the PLC or control system.

This can involve:

• IP address
• Device name
• Node address
• Module order
• Channel parameters
• Data mapping
• Device description files

The exact process depends on the protocol and manufacturer.

Module Order Can Matter

In modular systems, the physical order of modules can determine the I/O mapping or station configuration.

Replacing or inserting modules can therefore affect the PLC project depending on the platform.

Document the station layout before making changes.

Device Description Files

Industrial Ethernet devices can require manufacturer-provided device description files for engineering software.

Examples include GSDML files for PROFINET and EDS files for EtherNet/IP devices.

The required file type depends on the network.

Use the correct file for the exact product and firmware where required.

Firmware Compatibility

Firmware revisions can affect supported features and compatibility with controllers or engineering software.

When replacing a failed module in an established system, check whether the current replacement revision is supported by the existing PLC project and software environment.

Replacing Discontinued Remote I/O

Older remote I/O families can eventually become obsolete.

A replacement can involve more than swapping one module because the new platform may use different:

• Bus couplers
• I/O modules
• Terminal blocks
• Network protocols
• Device description files
• Physical dimensions
• PLC configuration

For obsolete systems, the complete station should be assessed before purchasing individual replacement components.

Replacing a Single Failed Module

For a single failed module, collect the exact manufacturer and part number from the label.

Also record the module's position in the station, adjacent module models, terminal block and PLC/controller information.

A visually similar module can have a different input type, output technology or electrical rating.

Document the Existing Station Before Removing Anything

Before dismantling a remote I/O station, record:

• Module order
• Part numbers
• Wire numbers
• Terminal positions
• Network connections
• Power connections
• Station address
• Configuration where available

Clear photographs can be valuable during replacement and troubleshooting.

Common Remote I/O Selection Mistakes

• Counting I/O points without identifying signal types
• Ordering digital input modules with the wrong voltage
• Ignoring PNP/NPN or sourcing/sinking requirements
• Choosing relay outputs where high-speed transistor outputs are needed
• Using standard analogue inputs for RTDs or thermocouples
• Assuming all analogue channels are individually isolated
• Confusing resolution with accuracy
• Assuming Ethernet ports guarantee PLC compatibility
• Ordering the wrong communications adapter
• Ignoring internal bus power limits
• Forgetting field power requirements
• Not allowing panel and wiring space
• Ignoring terminal-block requirements
• Replacing a module without checking firmware and PLC configuration
• Using ordinary I/O for safety functions

A Practical Planning Checklist

For an accurate remote I/O quotation, provide as much of the following information as possible:

• Application: ___
• PLC/controller manufacturer: ___
• PLC/controller model: ___
• Required protocol: PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU or other
• Digital inputs: ___
• Digital input voltage/type: ___
• Digital outputs: ___
• Output type: transistor, relay or unsure
• Analogue inputs: ___
• Analogue input ranges: 4–20 mA, 0–10 V or other
• Analogue outputs: ___
• Analogue output ranges: ___
• RTD inputs: ___
• RTD type: Pt100, Pt1000 or other
• Thermocouple inputs: ___
• Thermocouple type: ___
• Isolation requirements: ___
• High-speed counters or special modules: ___
• Supply voltage: ___
• Modular or fixed I/O preferred: ___
• DIN-rail or machine-mount: ___
• Operating environment: ___
• Fibre/network infrastructure required: yes or no
• Existing remote I/O model if replacing: ___
• Existing module part numbers: ___
• Engineering software/version if known: ___
• Quantity: ___

If the exact requirements are unknown, provide photographs of the existing station, module labels, PLC and field wiring together with a description of what the system controls.

How Remote I/O Fits Into a Complete Automation System

Remote I/O sits between field devices and the control network. It can operate alongside PLCs, HMIs, VSDs, servo systems, instrumentation, industrial Ethernet switches, gateways and fibre infrastructure.

Understanding those relationships is important during purchasing because a remote I/O station must be compatible with both the electrical field signals and the communications architecture.

Softcore Group Industrial Solutions's Knowledge Centre covers these technologies individually to help customers, engineers and purchasing teams identify the specifications needed before products are selected or quoted.

Products listed in our active online catalogue can be purchased or quoted through the Softcore Group Industrial Solutions store. Other brands, models and project-specific requirements can be quoted on request, with pricing, availability and lead time confirmed separately.

For remote I/O enquiries, provide the PLC manufacturer and model, required communications protocol, number and type of I/O points, signal ranges and existing equipment details wherever possible. This helps narrow the requirement and reduces the risk of selecting incompatible modules.

Technical Note

This article provides general industrial automation information. Remote I/O selection, field wiring, analogue signal design, communications, control-system behaviour, network architecture and safety functions must be assessed for the specific application. Manufacturer documentation, applicable standards, machine or process risk assessments and site requirements take precedence. Safety-related functions require appropriately designed and validated safety equipment and should not rely on ordinary remote I/O unless the equipment and complete architecture are specifically approved for the required safety function.

Related catalogue examples: Remote I/O & Automation Modules. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
