Network Cabinets and Racks Explained: How to Choose the Right Size, Depth and Accessories

Quick overview: This guide explains network cabinets and racks and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

A network cabinet is more than a metal box for mounting a switch. The cabinet becomes the physical home of the network infrastructure, and its size, depth, load capacity, ventilation, cable management and accessory layout can determine how easy the installation is to operate and maintain.

Choosing a cabinet only by the number of rack units can lead to problems. A cabinet can have enough vertical rack space and still be too shallow for the equipment, too small for the cable bend radius, poorly ventilated or unsuitable for the weight of a UPS.

This guide explains the practical specifications to consider when selecting network cabinets, racks and related accessories.

What Is a Network Cabinet?

A network cabinet or rack provides a structured mounting system for compatible communications and network equipment.

Depending on the installation, it can contain equipment such as:

• Ethernet switches
• Patch panels
• Fibre termination equipment
• Routers and gateways
• PoE switches
• UPS systems
• Power distribution units
• Cable-management accessories
• Network appliances
• Media converters and other communications equipment

Not every device is directly rack mountable. Shelves, DIN-rail accessories or other mounting solutions can be used where appropriate.

What Does 19 Inch Rack Mean?

Many network and communications products are designed for the standard 19-inch rack mounting format.

The 19-inch dimension refers to the nominal width of the rack mounting interface rather than the external width of the cabinet.

The cabinet itself is wider because space is required for the frame, doors, side panels and cable routing.

What Is a Rack Unit?

Vertical rack space is commonly measured in rack units, abbreviated as U.

One rack unit is 44.45 mm high.

Equipment can therefore be described as 1U, 2U, 3U and so on.

A 1U switch occupies one rack unit of vertical mounting space, while a 2U UPS occupies two rack units.

Why You Should Not Fill Every U on Paper

If the equipment list adds up to exactly the cabinet's total U capacity, the cabinet is normally too small for a practical installation.

Additional space can be needed for:

• Cable managers
• Ventilation gaps where required
• Future equipment
• Fibre trays
• Patch panels
• Shelves
• Power equipment
• Improved maintenance access

Reasonable spare capacity makes future changes substantially easier.

Common Cabinet Sizes

Network cabinets are available in many heights, from compact wall-mounted units to full-height floor-standing racks.

Typical cabinet sizes can include 6U, 9U, 12U, 15U, 18U, 22U, 27U, 32U, 37U, 42U and other configurations depending on the manufacturer.

The correct size should be determined from the equipment schedule and anticipated expansion rather than selecting a familiar cabinet size by default.

Wall-Mount vs Floor-Standing Cabinets

Wall-mounted cabinets are useful for smaller network installations where equipment count and weight are limited.

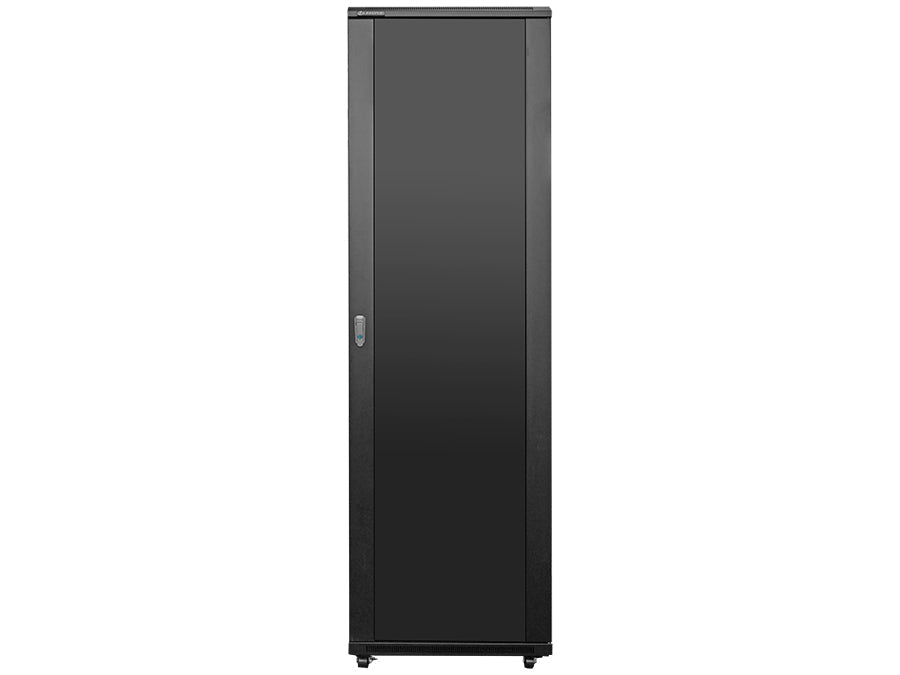

Floor-standing cabinets provide greater capacity and are generally more appropriate for larger switches, UPS systems, servers, extensive patching and heavier equipment.

Wall strength, cabinet load rating and the total installed weight must be considered for wall-mounted equipment.

Cabinet Depth Is Just as Important as Height

A common purchasing mistake is to specify only the U height.

Network equipment has physical depth, and additional clearance is required for power connectors, fibre patch leads, copper cables and airflow.

A deep switch or rack UPS can physically fit within the available U space but still be impossible to install correctly in a shallow cabinet.

Always check the deepest item in the equipment list.

Equipment Depth vs Cabinet Depth

The external depth of a cabinet is not necessarily the same as the usable mounting depth.

Internal mounting rails, doors, cable space and frame construction reduce the available equipment space.

When equipment depth is critical, compare the manufacturer's stated usable mounting depth with the equipment dimensions and connector clearances.

Front and Rear Clearance

Space is required not only for the equipment chassis but also for connections.

A switch may need front clearance for fibre or copper patch leads. A UPS may need rear clearance for power connectors. Servers and deeper appliances can require substantial rear space.

Cables should not be crushed against a closed cabinet door.

Fibre Bend Radius

Fibre optic cables and patch leads have minimum bend-radius requirements.

Excessively tight bends can increase optical loss or damage the fibre.

Cabinet depth and cable-management design should therefore provide enough space for fibre routing without forcing sharp bends around doors, rails or equipment.

Copper Patch Cable Management

Structured cabling installations can contain large numbers of patch leads.

Horizontal and vertical cable managers help organise these cables, reduce strain and improve access to switch and patch-panel ports.

Good cable management also makes future tracing and changes easier.

Patch Panels

Patch panels provide an organised termination and presentation point for structured cabling.

A typical copper network installation can terminate permanent horizontal cables on a patch panel and then use short patch leads to connect the required ports to an Ethernet switch.

The patch panel should match the cabling category, port count and termination system used in the installation.

24-Port vs 48-Port Patch Panels

The correct patch-panel density depends on the number of cable runs, available rack space and preferred cable-management layout.

Higher port density can save rack space but can also make patch-cord management more congested.

For larger installations, the complete patching arrangement should be planned rather than selecting panels only by maximum port density.

Cat5e, Cat6 and Cat6A

Patch panels, keystone modules, patch leads and installed cable should be selected as part of a compatible structured cabling system.

Using a higher-category component in one part of the channel does not automatically upgrade the performance of all the other components.

For example, installing a Cat6 patch panel does not turn existing lower-category cabling into a Cat6 channel.

Fibre Patch Panels and Fibre Trays

Fibre termination equipment can also be rack mounted.

Depending on the system, this can include fibre trays, splice management, adapters, pigtails and patching interfaces.

Fibre management should provide appropriate protection, labelling and bend-radius control.

Rack Shelves

Not every device has rack ears.

Fixed or sliding shelves can support suitable non-rack-mount equipment such as small routers, media converters or other devices.

Shelf load capacity, depth and ventilation should be checked against the equipment.

DIN Rail Inside a Network Cabinet

Industrial network installations sometimes combine standard rack equipment with DIN-rail devices.

Suitable DIN-rail mounting accessories can provide a structured way to mount industrial switches, DC power supplies, media converters and other compatible devices inside an enclosure or rack environment.

Electrical segregation, earthing, wiring and heat dissipation still need to be considered.

Cabinet Load Capacity

Every cabinet has a maximum permitted load.

UPS systems and battery equipment can be particularly heavy. Large switches, servers and multiple shelves also add substantial weight.

The combined installed equipment weight should remain within the cabinet and mounting-system ratings.

For floor-standing cabinets, floor loading and site conditions can also matter.

Why UPS Equipment Changes the Cabinet Requirement

A rack-mounted UPS can affect several aspects of cabinet selection:

• Depth
• Weight
• Rail requirements
• Ventilation
• Power distribution
• Available U space
• Battery access

UPS equipment should therefore be included in the cabinet design from the beginning rather than added after the networking equipment has already filled the rack.

Heavy Equipment Should Normally Be Mounted Low

Where permitted by the manufacturer's installation requirements, heavier rack equipment is generally positioned lower in a floor-standing cabinet to improve stability and handling.

Equipment layout should also consider service access, cable routing and airflow.

Power Distribution Units

A rack PDU distributes electrical power to equipment within the cabinet.

PDUs are available in different socket configurations, current ratings, mounting formats and monitoring capabilities.

A PDU is not automatically a UPS or surge protector. Its actual functions depend on the product.

Horizontal vs Vertical PDUs

Horizontal PDUs occupy rack-unit space and can be suitable for smaller installations.

Vertical PDUs can be mounted along the side or rear of compatible full-height cabinets and can provide many outlets without consuming the same front equipment U space.

Cabinet compatibility and available mounting space should be confirmed.

Do Not Overload the PDU

The PDU, upstream circuit, connectors and UPS output all have electrical ratings.

The connected load must remain within the permitted ratings of the complete power path.

Adding more outlets does not create more available electrical capacity.

Ventilation and Heat

Network equipment produces heat.

PoE switches, UPS systems and high-density network equipment can generate significant heat inside a cabinet.

Cabinet selection should consider the equipment's airflow requirements, ambient temperature and expected heat load.

Perforated vs Solid Doors

Cabinets can use perforated, mesh, glass or solid door arrangements depending on their intended application.

Perforated doors generally support greater passive airflow than sealed solid doors.

A glass-front cabinet can be suitable for many lower-density network installations, but ventilation still needs to be assessed against the actual equipment load.

Cabinet Fans

Fan trays can assist air movement in suitable cabinets, but adding fans is not a substitute for proper thermal design.

Air needs an appropriate path into and out of the enclosure.

For high heat loads, conditioned room cooling or another thermal-management approach may be required.

Outdoor Cabinets Are Different

A normal indoor network rack should not automatically be used outdoors.

Outdoor installations can require consideration of:

• Ingress protection
• Rain and dust
• Solar heating
• Condensation
• Corrosion
• Temperature
• Ventilation or cooling
• Cable glands and sealing
• Earthing
• Surge protection
• Physical security

The enclosure and installed equipment must both be suitable for the environment.

IP Ratings

Ingress Protection, or IP, ratings describe specified levels of protection against solid objects and water.

An IP rating applies to the tested enclosure configuration. Drilling holes, fitting unsuitable cable entries or leaving doors improperly sealed can compromise the intended protection.

Select an enclosure according to the actual environmental requirement rather than simply choosing the highest available IP number.

Dust and Industrial Environments

Industrial sites can contain conductive dust, fine particles, oil mist or other contaminants that are not typical of an office network room.

The enclosure, cooling strategy and installed equipment should be selected for those conditions.

Using an indoor office cabinet in a harsh plant environment can reduce equipment reliability.

Cabinet Earthing

Metal network cabinets and associated electrical equipment may require protective earthing and bonding according to the installation design and applicable electrical requirements.

Doors and removable panels can have bonding provisions depending on the cabinet.

Earthing should be implemented by appropriately competent personnel in accordance with the site and equipment requirements.

Shielded Structured Cabling

Where shielded copper cabling is used, the complete shielding and bonding design matters.

Simply using a shielded patch panel or shielded cable does not guarantee correct electromagnetic performance if the overall system is not installed appropriately.

Follow the cabling-system and project requirements.

Cable Entry

Cables can enter cabinets from above, below or through designated entry points depending on the cabinet and site.

Plan the route before selecting and positioning the cabinet.

A cabinet can become difficult to use if a large cable bundle must enter through an area occupied by a UPS, fan tray or other equipment.

Brush Panels and Cable Entry Panels

Brush panels can provide an organised cable passage while helping reduce large open gaps in the rack layout.

They are useful for patch leads and other low-voltage cabling where appropriate.

They should not be treated as an environmental seal for outdoor or high-IP enclosures.

Blanking Panels

Blanking panels cover unused rack spaces.

Besides improving appearance, they can assist airflow management in certain rack configurations by reducing unintended recirculation through unused front openings.

The benefit depends on the cooling architecture.

Front and Rear Doors

Large floor-standing racks often provide both front and rear access.

This is valuable for deep equipment, rear power connections and cable management.

Ensure there is enough room around the installed cabinet for the doors to open and for technicians to work safely.

Removable Side Panels

Removable side panels can simplify equipment installation and cable management.

Where physical security is important, check the locking arrangements and whether side panels can be secured.

Cabinet Security

Network cabinets can contain equipment that provides access to critical communications infrastructure.

Lockable doors and controlled physical access can form part of the site's security approach.

Cabinet locks should not be considered a substitute for broader physical and cybersecurity controls.

Castors and Levelling Feet

Floor-standing cabinets can be supplied with castors, levelling feet or both depending on the model.

Castors simplify movement during installation but must be rated for the loaded cabinet.

Once positioned, the cabinet should be stabilised according to the manufacturer's instructions and site requirements.

Rack Rails and Cage Nuts

Rack equipment attaches to mounting rails using compatible hardware.

Cabinets can use square-hole rails with cage nuts or other mounting arrangements.

Confirm whether cage nuts, screws, rail kits and other hardware are included with the cabinet or equipment.

Server Rails Are Not Universal

Servers, UPS systems and other deep equipment can use manufacturer-specific sliding rail kits.

Check the rail-kit compatibility with the cabinet's mounting depth and rail arrangement.

A device being described as 19-inch rack mountable does not guarantee that every rail kit fits every cabinet depth.

Patch Lead Length

Patch leads should be long enough to route neatly through the intended cable managers without tension, but excessive cable length creates unnecessary congestion.

Planning patch-panel and switch positions together can reduce the amount of loose cable stored inside the cabinet.

Labelling

Clear labels make maintenance significantly easier.

Useful identification can include:

• Patch-panel port numbers
• Switch ports
• Fibre cores
• Power circuits
• Equipment names
• Cabinet identifiers
• Cable destinations

A consistent labelling scheme is particularly valuable across multiple cabinets or remote sites.

Allow for Future Expansion

A cabinet is normally expected to outlast several generations of smaller network devices.

Leaving appropriate spare U space, power capacity, patch-panel capacity and cable-management space can reduce the cost and disruption of future expansion.

However, excessively oversized cabinets can create unnecessary cost and space requirements. Expansion should be based on a realistic network plan.

Common Cabinet Selection Mistakes

• Specifying only the U height
• Not checking equipment depth
• Forgetting rear connector clearance
• Ignoring fibre bend radius
• Filling every rack unit with no expansion space
• Not allowing space for cable managers
• Ignoring UPS weight and depth
• Assuming shelves or rail kits are included
• Not checking cabinet load capacity
• Ignoring ventilation and heat load
• Using indoor cabinets outdoors
• Forgetting cable-entry requirements
• Not planning power distribution
• Assuming all 19-inch equipment fits every 19-inch cabinet
• Not considering physical access around the installed cabinet

Replacing an Existing Cabinet

When replacing an existing network cabinet, do not use only its external dimensions as the new specification.

Record the installed equipment and identify any problems with the current cabinet.

Useful information includes:

• Existing cabinet U height
• External width and depth
• Usable mounting depth
• Equipment list
• Deepest equipment item
• Total equipment weight
• Patch-panel count
• Switch count
• UPS and battery equipment
• PDU arrangement
• Cable entry
• Ventilation
• Wall or floor mounting
• Indoor or outdoor environment

Photographs of the existing cabinet can also be useful when preparing a replacement quotation.

A Practical Planning Checklist

For an accurate cabinet quotation, provide as much of the following as possible:

• Application: ___
• Required U height: ___U
• Wall mount or floor standing: ___
• Required cabinet depth: ___ mm
• Deepest equipment: ___ mm
• Equipment list: ___
• Number of switches: ___
• Patch panels: ___
• Fibre equipment: ___
• UPS installed in cabinet: yes or no
• UPS model/weight if known: ___
• PDU required: yes or no
• Shelves required: ___
• Cable managers required: ___
• Fan tray required: yes, no or unsure
• Indoor or outdoor: ___
• Environmental/IP requirement: ___
• Cable entry: top, bottom or other
• Castors/levelling feet required: ___
• Quantity: ___

If the correct size is unknown, provide the equipment models and quantities. This allows the physical space, depth and accessory requirements to be considered before a cabinet is selected.

For cabinet enquiries, provide the required U height, equipment depth, equipment list and whether the installation is wall mounted, floor standing, indoor or outdoor wherever possible.

Technical Note

This article provides general purchasing and network-infrastructure information. Cabinet loading, mounting, electrical power distribution, earthing, ventilation, environmental protection, structured cabling, fibre routing and equipment clearances must be assessed for the specific installation. Manufacturer documentation, applicable standards, site requirements and competent technical assessment take precedence.

Related catalogue examples: Network Cabinets & Racks. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
