Industrial Power Supplies Explained: 24V DC, DIN Rail PSUs, Redundancy and DC Control Power

Quick overview: This guide explains industrial power supplies and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Industrial automation systems depend on reliable control power. PLCs, sensors, remote I/O, industrial Ethernet switches, relays, instrumentation and many HMIs commonly operate from 24 VDC, which means the power supply behind them is a fundamental part of the control system.

A power supply can appear simple: AC goes in and DC comes out. In practice, correct selection requires attention to input voltage, output voltage, load current, starting and inrush demands, ambient temperature, mounting, redundancy, protection, diagnostics and the consequences of a power interruption.

An undersized or poorly selected power supply can create intermittent PLC resets, communication failures, unstable sensors, nuisance shutdowns and difficult-to-diagnose machine faults. An oversized unit is not automatically a complete solution either, because distribution, protection and backup architecture still need to be considered.

This guide explains industrial 24 VDC control power and how DIN rail power supplies, redundancy modules, DC UPS systems, buffer modules and electronic circuit protection fit into modern automation panels.

What Is an Industrial Power Supply?

An industrial power supply converts available electrical power into the voltage required by control and automation equipment.

A common example is converting 230 VAC mains power into regulated 24 VDC for a control panel.

Industrial power supplies are designed for environments and applications where reliability, temperature performance, electrical protection and panel mounting are important.

Why Is 24 VDC So Common in Automation?

24 VDC is widely used for industrial control circuits and is supported by a large range of automation equipment.

Typical 24 VDC loads include:

• PLCs
• Remote I/O
• Proximity and photoelectric sensors
• Industrial Ethernet switches
• HMIs
• Relays and interface modules
• Solenoid valves
• Instrumentation
• Gateways and communication modules
• Control electronics

Not every device operates at 24 VDC, so the exact equipment ratings must still be checked.

What Is a DIN Rail Power Supply?

A DIN rail power supply is designed to mount onto standard DIN rail inside an electrical or automation enclosure.

This mounting format allows the PSU to sit alongside PLCs, circuit protection, relays, terminal blocks and other control components.

DIN rail power supplies are available in many output ratings and input configurations.

AC Input and DC Output

A typical industrial PSU may accept an AC input and provide a regulated DC output.

Common arrangements include:

• Single-phase AC to 24 VDC
• Three-phase AC to 24 VDC
• DC to DC conversion
• Wide-range AC/DC input designs depending on the product

The permitted input range should always be checked against the actual site supply.

Single-Phase Power Supplies

Single-phase DIN rail power supplies are widely used in control panels where a suitable single-phase AC supply is available.

They are common for small and medium automation loads including PLCs, sensors, relays and networking equipment.

The input voltage range, frequency, current and protective requirements are manufacturer-specific.

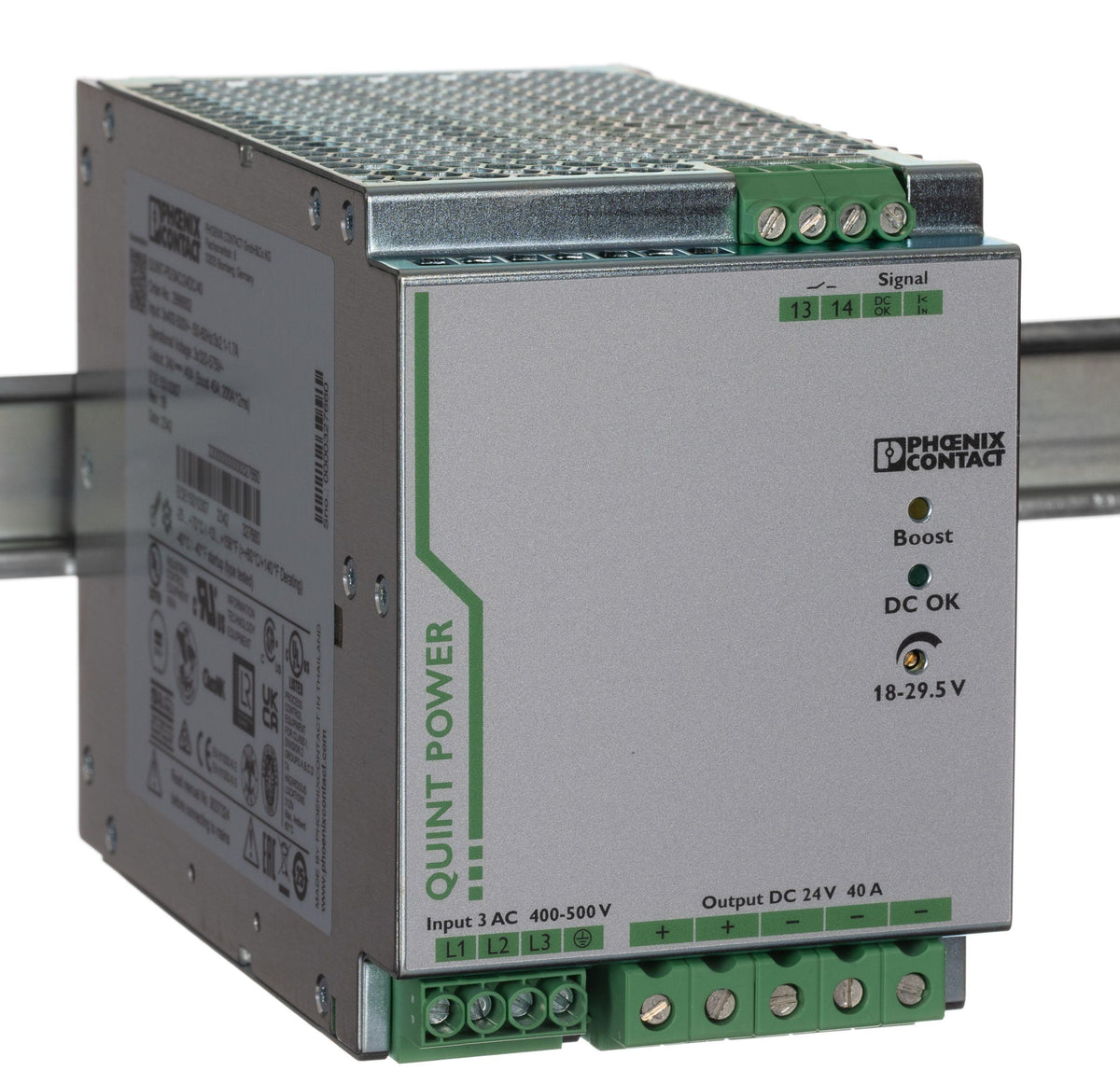

Three-Phase Power Supplies

Three-phase input power supplies can be useful in larger industrial control systems or where the panel architecture is based primarily on a three-phase supply.

Depending on the design, they can provide high DC output power and avoid the need to derive a separate single-phase supply for control power.

Phase-loss behaviour and permitted input conditions should be checked for the selected model.

What Does a 24 VDC Power Supply Rating Mean?

A power supply is normally specified by output voltage and maximum output current or power.

For example:

24 VDC, 10 A

represents a nominal 24 VDC output capable of supplying up to the specified current under the manufacturer's rated conditions.

The equivalent nominal output power can be estimated using:

Power = Voltage × Current

Therefore:

24 V × 10 A = 240 W

Actual usable output can be affected by derating and operating conditions.

How Do You Size a 24 VDC Power Supply?

Start by identifying every load supplied by the PSU and its maximum expected current.

For example:

• PLC and modules: 1.2 A
• HMI: 0.8 A
• Industrial switch: 0.5 A
• Sensors: 0.6 A total
• Relays and solenoids: 2.4 A

The estimated running load would be:

1.2 + 0.8 + 0.5 + 0.6 + 2.4 = 5.5 A

A PSU should not simply be selected at exactly 5.5 A without considering starting loads, future expansion, temperature derating and the manufacturer's recommended operating conditions.

Why Design Margin Matters

Some spare capacity can accommodate expected load variation and reasonable future expansion.

However, there is no universal percentage that is correct for every industrial system.

The appropriate margin depends on the connected equipment, PSU overload capability, ambient conditions and project requirements.

Good sizing is based on the actual load profile rather than an arbitrary oversized PSU.

Continuous Load vs Peak Load

Not every 24 VDC device draws constant current.

Some loads have brief peaks when switching, starting or charging internal capacitors.

A power supply may therefore need to support both:

• Continuous operating current
• Short-duration peak current

Manufacturer overload and boost specifications are important when the system contains dynamic loads.

What Is Inrush Current?

Inrush current is a temporary current surge that occurs when certain electrical equipment is energised.

Power supplies themselves can draw input inrush current as internal capacitors charge, while connected DC equipment can also present startup current peaks.

Input protective devices and upstream supply arrangements should account for the PSU's specified inrush behaviour.

Power Boost and Overload Capability

Some industrial PSUs can temporarily provide more than their nominal rated current.

This capability may be described using terms such as power boost, dynamic boost or overload reserve.

It can help start capacitive or electromechanical loads without unnecessarily increasing the continuous PSU rating.

The duration and magnitude of the boost are model-specific and should be checked in the datasheet.

Current Limiting

Power supplies commonly include some form of output current limiting or overload protection.

Behaviour can include constant-current limiting, foldback, hiccup or shutdown modes depending on the product.

This behaviour matters because different loads respond differently when the supply reaches its limit.

Hiccup Mode

In hiccup-style protection, the PSU can shut down its output during an overload and periodically attempt to restart.

This can protect the supply, but it can also make a fault appear as repeated power cycling of PLCs or other loads.

Understanding PSU protection behaviour can therefore help with troubleshooting.

Output Voltage Adjustment

Many industrial 24 VDC power supplies provide a limited adjustment range around the nominal output voltage.

This can be useful for compensating for controlled voltage drop or meeting particular load requirements.

It should not be used as a substitute for correctly sized conductors or proper distribution design.

Voltage Drop in 24 VDC Circuits

Voltage drop occurs as current flows through cable and connections.

It becomes particularly important in low-voltage DC circuits because even a relatively small absolute drop can represent a meaningful percentage of the nominal 24 V supply.

Long cable runs, high load currents and undersized conductors increase voltage drop.

Why Voltage Drop Causes Automation Problems

A PSU can measure a healthy 24 VDC at the panel while a remote field device receives significantly less voltage under load.

This can cause:

• Sensor instability
• Communication equipment resets
• Solenoids failing to operate reliably
• Remote I/O undervoltage alarms
• Intermittent controller faults

Voltage should be assessed at the load under realistic operating conditions when troubleshooting these problems.

DC Distribution

Once 24 VDC is produced, it normally needs to be distributed to multiple circuits.

Typical groups can include:

• PLC and control electronics
• Sensors
• Remote I/O
• Industrial networking
• Instrumentation
• Relays and solenoids

Separating loads into appropriately protected branches can improve fault isolation and maintenance.

Why One Fuse for the Entire 24 VDC System Can Be a Problem

If every control load is supplied through one protective device, a short circuit in a minor field component can remove power from the entire automation system.

Dividing the DC distribution into suitable protected circuits can limit the effect of individual faults.

The final protection arrangement must be coordinated with conductor sizes, PSU characteristics and the connected equipment.

Fuses and Miniature Circuit Breakers on DC Circuits

Fuses and circuit breakers used on DC circuits must be suitable for the applicable DC voltage, current and fault conditions.

AC ratings should not automatically be assumed to apply identically to DC interruption.

Coordination with the power supply's current-limiting behaviour is also important because an electronic PSU may not provide the same fault current characteristics as a transformer-fed supply.

Electronic Circuit Protection

Electronic circuit protection modules are designed specifically for distributing and protecting DC control circuits.

Depending on the model, they can provide:

• Multiple protected output channels
• Adjustable current limits
• Selective shutdown
• Remote reset
• Status contacts
• Digital diagnostics

These devices can help prevent one overloaded branch from collapsing the complete 24 VDC control bus.

Selective Protection

Selectivity means that the protective device closest to the fault operates while healthy upstream or parallel circuits remain energised where the design allows it.

This can be difficult in low-voltage DC systems because switch-mode power supplies limit their output current.

Electronic circuit protection can provide more predictable branch isolation in suitable designs.

What Is a Redundant Power Supply System?

A redundant power architecture uses more than one power source so that the loss of a single PSU does not necessarily remove control power.

A common arrangement uses two power supplies feeding a redundancy module or suitable decoupling system.

If one PSU fails, the remaining source can continue supplying the load if it has sufficient capacity and the system is correctly designed.

N+1 Redundancy

N+1 means the system contains the capacity required for the load plus one additional unit or capacity element.

For example, if one PSU can carry the complete required load, a second equivalent PSU can provide redundancy.

Other architectures are possible, and redundancy terminology should always be interpreted in the context of the actual design.

Why Simply Paralleling Two Power Supplies Is Not Always Redundancy

Two PSU outputs should not automatically be connected together unless the products and architecture permit it.

Power supplies can require redundancy modules, ORing devices or specific parallel operating configurations.

Without suitable decoupling, a failure in one unit can affect the common DC bus or the other PSU.

Redundancy Modules

A redundancy module decouples power sources so that one supply cannot undesirably feed back into another.

Traditional modules can use diodes, while high-efficiency designs can use active electronic switching to reduce voltage loss and heat.

Some modules also provide monitoring contacts or diagnostic outputs.

Redundancy Is More Than Two PSUs

A system is only as redundant as the rest of its power path.

If both PSUs depend on the same single upstream protective device, terminal connection or AC source, those elements can remain single points of failure.

Critical applications therefore require consideration of the complete architecture, not only the number of power supplies.

What Is a DC UPS?

A DC uninterruptible power supply maintains a DC control bus for a period after the normal input supply is lost.

In a 24 VDC automation system, a DC UPS can keep selected control equipment operating using stored energy.

Typical backed-up loads can include:

• PLCs
• Industrial network switches
• HMIs
• Remote I/O
• Communication gateways
• Selected instrumentation

DC UPS vs General AC UPS

A general AC UPS typically stores energy and recreates an AC supply for downstream equipment.

A DC UPS is integrated directly into a DC control-power architecture and maintains the DC bus.

For equipment that ultimately operates at 24 VDC, this can avoid converting DC battery energy to AC and then back to DC, although suitability depends on the complete system.

This is different from broader facility and equipment backup-power selection, which is covered separately in Softcore Group Industrial Solutions's UPS and backup-power guidance.

Why Back Up the PLC?

A short mains interruption can reset a PLC and stop a process even when the interruption lasts only seconds.

Backing up the controller and essential communications can allow the control system to remain operational or perform an orderly response during a power disturbance.

Whether motors, actuators or other power loads remain available is a separate matter.

Control Power Backup Does Not Keep the Whole Machine Running

A 24 VDC UPS supporting the PLC does not automatically provide backup power for three-phase motors, VSDs, heaters or other large loads.

It protects the control layer selected for backup.

This distinction should be clear when specifying a control-power UPS.

Battery-Based DC UPS Systems

Battery-based DC UPS systems use rechargeable batteries to provide stored energy.

Selection involves more than the UPS module itself and can include:

• Battery chemistry
• Battery voltage
• Capacity
• Charging requirements
• Temperature
• Expected backup time
• Battery life
• Maintenance

The battery system should be compatible with the UPS controller or charging module.

What Is a Buffer Module?

A buffer module stores a smaller amount of energy, often using capacitors or supercapacitors, to bridge short power interruptions.

It is not intended to provide the long backup duration of a large battery system.

For disturbances lasting milliseconds or seconds, however, a buffer can prevent nuisance controller resets without the maintenance requirements associated with batteries.

Buffer Module vs DC UPS

A buffer module is generally suited to short interruptions, while a DC UPS with appropriately sized energy storage can provide longer backup.

The choice depends on the required ride-through time and load.

If the requirement is only to bridge brief dips, a large battery-backed system may be unnecessary.

Calculating Approximate DC Backup Time

Backup time depends on load power, battery or storage capacity, system efficiency, battery condition, temperature and discharge characteristics.

A simple energy calculation can provide an initial estimate, but battery capacity should not be treated as perfectly usable energy under every condition.

Manufacturer sizing tools and discharge data should be used for final selection.

Separate Essential and Non-Essential Loads

One of the most effective ways to improve backup duration is to back up only the loads that genuinely need continuity.

For example, the PLC, industrial switch and communication gateway may need backup while field solenoids do not.

Separating essential and non-essential 24 VDC circuits can reduce UPS size and improve useful runtime.

Power Supply Efficiency

Efficiency describes how much input power is converted into useful output power.

The difference becomes heat inside the power supply.

Higher efficiency can reduce enclosure heat generation and operating losses, particularly in larger or continuously loaded systems.

Heat in Control Panels

Every PSU dissipates some heat.

High enclosure temperature can reduce available output power and shorten component life.

Panel design should therefore consider:

• Ambient temperature
• Ventilation
• Spacing
• Power-supply losses
• Heat from PLCs and drives
• Solar loading for outdoor panels

Temperature Derating

Power supplies can provide their full rated output only within a defined temperature range.

Above a specified temperature, the permitted continuous load can decrease.

A 10 A PSU should therefore not automatically be assumed capable of supplying 10 A continuously inside a very hot enclosure.

The manufacturer's derating curve should be checked.

Altitude Derating

Some power supplies require derating at higher installation altitudes because reduced air density affects cooling and electrical clearances.

Where equipment is installed at significant altitude, the manufacturer's environmental specifications should be reviewed.

Ventilation and Mounting Orientation

DIN rail power supplies are designed for specified mounting orientations and clearances.

Installing a PSU sideways or with inadequate ventilation can affect thermal performance unless the manufacturer explicitly permits that arrangement.

Installation instructions should be followed.

Input Protection

The AC input to a PSU normally requires suitable upstream protection and isolation according to the electrical design.

Selection can involve:

• Protective device rating
• Breaking capacity
• Inrush behaviour
• Conductor size
• Isolation requirements

The PSU manufacturer's recommended upstream protection provides an important reference.

Surge Protection

Industrial sites can experience transient overvoltages caused by switching events, lightning effects and network disturbances.

Appropriate surge protection can form part of the overall panel and power architecture.

A PSU's internal protection should not automatically be treated as a complete site surge-protection strategy.

Regulated DC Output

A regulated PSU maintains its output voltage within specified limits as input voltage and load change.

This provides stable power for sensitive automation electronics.

Output regulation, ripple and noise specifications can matter in applications involving sensitive instrumentation or communications equipment.

Ripple and Noise

Switch-mode power supplies produce a small amount of residual AC variation and high-frequency noise on their DC output.

Industrial PSUs specify permissible ripple and noise under defined measurement conditions.

Most standard automation loads tolerate the output of a suitable industrial PSU, but sensitive measurement equipment can require closer attention to power quality and grounding.

Galvanic Isolation

Many AC/DC industrial power supplies provide galvanic isolation between input and output according to their design and safety rating.

Isolation can help separate control circuits electrically from the incoming mains.

The exact isolation and insulation ratings should be confirmed from the product specification.

SELV and PELV

SELV and PELV are protective extra-low-voltage concepts defined by applicable electrical safety standards.

They involve requirements beyond simply measuring 24 VDC at the output.

Power supply certification, isolation, grounding and installation architecture all affect whether a circuit meets the applicable definition.

Where SELV or PELV compliance is required, the complete system should be assessed against the relevant standard.

Grounding the 24 VDC System

Industrial DC systems can use grounded or floating arrangements depending on the design.

A common PELV-style control architecture may reference one side of the 24 VDC supply to protective earth, but this should not be applied blindly to every system.

Grounding must be coordinated with the equipment, instrumentation, communications and applicable electrical requirements.

Floating DC Systems

A floating DC system is not intentionally referenced to earth.

Such systems can require insulation monitoring or other considerations depending on the application.

The decision between grounded and floating control power is an engineering design choice rather than a preference at installation.

DC/DC Converters

DC/DC converters change one DC voltage level to another and can also provide isolation depending on the product.

Applications include:

• 24 VDC to 12 VDC
• 24 VDC to 5 VDC
• Stabilising a varying DC input
• Providing galvanically isolated DC power
• Creating separate control-power domains

Why Use a DC/DC Converter on a 24 VDC Bus?

A DC/DC converter can provide a tightly regulated local supply where the upstream DC voltage varies, or electrically isolate a sensitive load from the main control bus.

It can also allow equipment with a different DC voltage requirement to be integrated into the panel without a separate AC power supply.

Power Supply Diagnostics

Industrial PSUs can provide diagnostic indicators and outputs such as:

• DC OK LED
• Relay contact
• Transistor status output
• Low-voltage warning
• Digital communication on advanced systems

Monitoring PSU health can allow a PLC or SCADA system to raise an alarm before complete control-power loss.

Why a DC OK Contact Is Useful

Without monitoring, a redundant power system can lose one PSU and continue operating unnoticed.

The plant only discovers the problem when the second PSU later fails.

A DC OK or redundancy alarm contact can alert maintenance while redundancy is still available.

Power Supply Monitoring in PLCs

A PLC digital input can monitor PSU or redundancy-module status contacts.

The program can then generate:

• HMI alarms
• SCADA alarms
• Maintenance notifications
• Event records

This converts a hidden infrastructure fault into actionable diagnostic information.

Power Supplies for PLC Systems

Some PLC families use an integrated or dedicated system power supply, while others accept external 24 VDC directly.

Expansion I/O can also have separate field-power requirements.

When sizing the control PSU, distinguish between:

• PLC electronics power
• Sensor power
• Output load power
• Communication equipment power

Do not assume the PLC's quoted current consumption includes every field load connected to its I/O.

Power Supplies for Sensors

Individual sensors normally draw relatively small currents, but a machine can contain dozens or hundreds of them.

The combined sensor load should be included in the PSU calculation.

Field short circuits should also be considered when designing branch protection.

Power Supplies for Remote I/O

Remote I/O stations can require separate system and field power connections.

The communication electronics might remain powered while output groups are independently supplied.

This distinction is important when designing backup power or emergency-stop architectures.

Power Supplies for Industrial Ethernet Switches

Industrial switches commonly operate from DC power and many models accept redundant DC inputs.

Providing two input terminals does not by itself create complete system redundancy if both inputs originate from the same PSU.

Where network availability is important, the complete supply path should be considered.

Power Supplies for PoE Industrial Networks

Power over Ethernet equipment can significantly increase the power required by an industrial switch.

A PoE switch's own consumption plus the maximum expected powered-device load should be considered.

Some industrial PoE switches require higher DC input voltages or particular power supplies to provide the intended PoE output.

The switch's power budget and input specification should therefore be checked carefully.

Power Supplies for HMIs

Many panel HMIs operate at 24 VDC.

Their normal current consumption and startup characteristics should be included in PSU sizing.

If the HMI is required during a power outage for diagnostics or controlled shutdown, it should be included in the backed-up load calculation.

Power Supplies for Instrumentation

Process transmitters and signal-conditioning equipment often depend on the same 24 VDC control system.

Power quality, grounding and isolation can be particularly important for low-level measurement systems.

Instrumentation loads should therefore be considered both electrically and from a noise-management perspective.

Power Supplies for Relays and Solenoids

Relay coils and solenoid valves can represent a significant portion of a 24 VDC panel's load.

Inductive loads also generate transient voltages when switched off.

Appropriate suppression and output-interface design can reduce electrical stress and interference.

Why Solenoids Can Cause PLC Resets

If several solenoids energise simultaneously, their combined current demand can pull down an inadequately sized DC bus.

The PLC may then reset even though the fault appears to be associated with the field devices.

Separating control electronics from heavy DC actuator loads or correctly sizing the PSU can improve stability.

Separate Power Supplies for Different Loads

Some panels use separate PSUs for sensitive control electronics and higher-current field loads.

This can provide:

• Fault separation
• Reduced voltage disturbance
• Independent shutdown zones
• Improved troubleshooting

Whether this is necessary depends on the machine and control architecture.

Emergency Stop and 24 VDC Power

Emergency-stop functions should not be implemented simply by removing arbitrary 24 VDC power unless that architecture has been properly designed and validated as part of the machine safety system.

Safety relays, safety PLCs, contactors, STO functions and other safety components can form part of the required solution.

Ordinary control power and safety-related power architecture should be distinguished clearly.

Brownouts and Voltage Dips

A complete blackout is not the only power disturbance that can stop automation equipment.

Short voltage dips can cause a PSU's DC output to fall below the operating threshold of connected equipment.

Hold-up time, buffer modules or UPS systems can help bridge suitable disturbances depending on their duration.

Hold-Up Time

Hold-up time describes how long a power supply can maintain its output within specified limits after input power is lost.

The stored energy in the PSU's internal capacitors can bridge very short interruptions.

For longer disturbances, an external buffer or UPS may be required.

Power Quality and Unstable Mains

Industrial sites can experience undervoltage, overvoltage, switching transients and other disturbances.

A wide input range can help a PSU tolerate normal supply variation, but it does not replace proper power-quality assessment where serious disturbances occur.

What Happens When a 24 VDC PSU Fails?

Depending on the system, a failed PSU can remove power from the PLC, communications, sensors and outputs simultaneously.

This is why control-power architecture deserves the same design attention as more visible automation components.

For critical systems, redundancy, monitoring and spare strategy can substantially reduce the operational impact of PSU failure.

Common Causes of Power Supply Problems

• Overloading
• High enclosure temperature
• Blocked ventilation
• Incorrect input voltage
• Loose connections
• Downstream short circuits
• Ageing components
• Surge events
• Incorrect parallel connection
• Excessive field voltage drop

Signs of an Undersized or Failing PSU

Possible symptoms include:

• PLC resets when outputs energise
• HMI restarts
• Industrial switch reboots
• Intermittent sensor faults
• DC voltage dropping under load
• Overload indicators
• Repeated PSU cycling
• Unexpected communication loss

These symptoms can also have other causes, so measurements and systematic troubleshooting are required.

Measuring a 24 VDC Bus

A no-load voltage reading alone does not establish that the supply system is healthy.

Useful troubleshooting can include checking voltage:

• At the PSU output
• At distribution terminals
• At remote loads
• During maximum load
• While problematic devices switch

Appropriate electrical safety procedures and suitable test equipment should be used.

Power Supply Replacement

When replacing an existing PSU, do not match only the 24 VDC output voltage.

Confirm:

• Input voltage and phases
• Output current
• Output voltage adjustment range
• Overload capability
• Physical dimensions
• DIN rail mounting
• Terminal arrangement
• Temperature rating
• Approvals
• Diagnostic contacts
• Parallel or redundancy capability if used

Can a Higher-Current PSU Replace a Lower-Current PSU?

A higher current rating means the PSU is capable of supplying more current; it does not force extra current into a correctly operating load.

However, replacement suitability still depends on protection coordination, wiring, physical fit, input requirements, approvals and system architecture.

Simply installing the largest available supply is not a substitute for checking the design.

Common Industrial Power Supply Selection Mistakes

• Sizing the PSU from only the PLC load and forgetting field devices
• Ignoring solenoid and relay loads
• Ignoring startup or peak current
• Assuming full rated output is available at any ambient temperature
• Ignoring voltage drop to remote equipment
• Using one unsegmented protection device for the entire DC system
• Assuming two PSUs can always be directly paralleled
• Calling two PSUs redundant while leaving major common single points of failure
• Backing up every 24 VDC load when only essential controls require continuity
• Confusing a DC control UPS with backup power for motors and VSDs
• Ignoring diagnostic contacts
• Using AC-only protective devices without checking DC ratings
• Ignoring PoE power budgets
• Replacing a PSU based only on voltage and current
• Ignoring panel temperature and mounting clearances

A Practical Planning Checklist

For an accurate quotation, provide as much of the following information as possible:

• Application: ___
• Input supply: ___ VAC or VDC
• Input phases: single-phase or three-phase
• Required output voltage: ___ VDC
• Required continuous current: ___ A
• Known peak/start current: ___ A
• Required output power: ___ W
• Connected loads: PLC, HMI, sensors, switch, I/O, solenoids or other
• DIN rail mounting required: yes or no
• Redundancy required: yes, no or unsure
• Backup required: yes or no
• Required backup time: ___
• Battery or maintenance-free buffer preferred: ___
• Number of protected DC branches: ___
• Diagnostic contact required: yes or no
• Ambient temperature: ___ °C
• Installation altitude if relevant: ___
• Enclosure/environment: ___
• Required approvals: ___
• Existing manufacturer: ___
• Existing model number: ___
• Quantity: ___

For replacement enquiries, clear photographs of the existing PSU nameplate, terminals and surrounding panel space can help identify an appropriate replacement.

How 24 VDC Power Fits Into a Complete Automation System

Control power is the common foundation behind many automation components.

A simplified architecture can look like:

AC supply → Industrial power supply → 24 VDC distribution and protection → PLC, HMI, sensors, remote I/O, networking and instrumentation

Where continuity is required, redundancy modules, buffer modules or DC UPS systems can be added to the appropriate part of that architecture.

This connects directly with other topics in Softcore Group Industrial Solutions's Knowledge Centre including PLCs, sensors, industrial instrumentation, remote I/O, industrial Ethernet, control panels and UPS and backup power.

Products listed in our active online catalogue can be purchased or quoted through the Softcore Group Industrial Solutions store. Other brands, models and project-specific requirements can be quoted on request, with pricing, availability and lead time confirmed separately.

For replacement enquiries, provide the existing manufacturer and exact model number wherever possible. For new requirements, the input supply, required DC output, connected load, redundancy requirement, backup duration and installation environment are useful starting points before quotation.

Technical Note

This article provides general industrial electrical and automation information. Power supply sizing, electrical protection, conductor sizing, earthing, SELV or PELV requirements, redundancy, battery systems, machine safety and control-panel design must be assessed for the specific application. Manufacturer documentation, applicable electrical and machinery standards, site requirements and engineering specifications take precedence. Electrical systems and safety-related circuits should be designed, installed and verified by appropriately competent personnel.

Related catalogue examples: Industrial Automation. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
