Industrial Instrumentation Explained: 4–20 mA, 0–10 V, RTDs, Thermocouples and Process Signals

Quick overview: This guide explains industrial instrumentation and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Industrial automation depends on more than digital signals that are simply on or off. Many processes need to measure continuously changing conditions such as pressure, temperature, flow, level, position or conductivity and communicate those measurements reliably to a PLC, controller, display or monitoring system.

This is the role of industrial instrumentation.

One of the most common signals in process instrumentation is 4–20 mA, but it is only one of several interfaces used in industry. Equipment can also use 0–10 V and other voltage signals, RTDs, thermocouples, pulse outputs, frequency signals and digital communications.

Understanding the measurement, signal type and control-system interface is essential when selecting instruments or replacement equipment. A pressure transmitter with the correct pressure range but the wrong output signal can be unsuitable for the installed PLC. A temperature sensor can physically fit a process while being electrically incompatible with the input module.

This guide explains the fundamentals of industrial instrumentation and the information that purchasing teams should collect before equipment is selected or quoted.

What Is Industrial Instrumentation?

Industrial instrumentation refers to devices and systems used to measure, transmit, indicate and sometimes control process variables.

Common measured variables include:

• Pressure
• Temperature
• Flow
• Level
• Position
• Weight
• Conductivity
• pH
• Speed
• Humidity

The measurement device converts a physical condition into information that a control system can use.

Sensor vs Transmitter

The terms sensor and transmitter are sometimes used interchangeably, but they do not always describe the same function.

A sensor detects a physical variable. An RTD element, for example, changes resistance according to temperature.

A transmitter converts a measurement into a standardised output such as 4–20 mA for transmission to another device.

Some industrial instruments contain both sensing and transmitting functions in one assembly.

What Is a Process Signal?

A process signal is the electrical or digital representation of a measured process value or control command.

Common industrial signal types include:

• 4–20 mA
• 0–10 V
• 0–5 V
• 1–5 V
• RTD resistance
• Thermocouple millivolt signals
• Pulse or frequency signals
• Digital industrial communications

The instrument output and controller input must support compatible signal types.

What Is a 4–20 mA Signal?

A 4–20 mA current loop represents a process measurement using electrical current.

Typically, 4 mA represents the lower end of the configured measurement range and 20 mA represents the upper end.

For example, a pressure transmitter configured for 0 to 10 bar might represent:

• 4 mA = 0 bar
• 12 mA = approximately 5 bar
• 20 mA = 10 bar

The PLC analogue input converts the measured current into a digital value, and the control program scales that value into engineering units.

Why Does 4–20 mA Start at 4 mA?

The non-zero lower value provides what is commonly called a live zero.

A valid zero process measurement can therefore still produce approximately 4 mA, while a current near zero can indicate conditions such as an open circuit, loss of loop power or wiring problem depending on the system.

Many intelligent transmitters can also use currents outside the normal measurement range to indicate diagnostic conditions according to their configuration and applicable conventions.

Why Is 4–20 mA Common in Industry?

Current-loop signals are widely used because they are well suited to industrial measurement over practical cable distances and are less affected by voltage drop than a simple voltage measurement.

They are also widely supported by PLC analogue input modules, transmitters, indicators, isolators and process-control equipment.

Two-Wire 4–20 mA Transmitters

A two-wire transmitter commonly uses the same two conductors for both power and the measurement signal.

The transmitter regulates the current flowing in the loop according to the measured process value.

This arrangement is common for pressure, level, flow and other process transmitters.

Three-Wire and Four-Wire Transmitters

Not every 4–20 mA instrument is loop-powered.

Three-wire and four-wire devices can use separate supply and signal connections depending on the instrument.

The wiring diagram for the exact model should always be checked rather than assuming that every 4–20 mA device is wired identically.

Loop Power Supply

A two-wire transmitter requires sufficient DC voltage to operate while allowing the required loop current to flow through the total circuit resistance.

24 VDC is common in industrial control systems, but the permitted supply range is device-specific.

The available voltage must account for the transmitter, PLC input or load, barriers, isolators and cable resistance in the loop.

What Is Loop Resistance?

Every device and cable in a current loop contributes electrical resistance or voltage burden.

The power supply must provide enough voltage for the transmitter to operate correctly at the maximum required loop current.

Long cable runs, input resistances, intrinsic-safety barriers and other devices can therefore affect the available loop voltage.

Passive vs Active Analogue Inputs

Terminology varies between manufacturers, but analogue current interfaces are often described as active or passive depending on whether they provide loop power.

A mismatch can result in a loop that has no power or, in some arrangements, inappropriate connection of two powered sources.

When selecting an analogue input module or transmitter, verify the exact wiring architecture rather than relying only on the words active and passive.

What Is a 0–10 V Signal?

A 0–10 V signal represents a process or control value using voltage.

For example, a speed reference could use:

• 0 V = minimum command
• 5 V = approximately 50 percent command
• 10 V = maximum command

Voltage signals are common in control systems but are more sensitive than current loops to voltage drop, grounding differences and electrical noise over long cable runs.

4–20 mA vs 0–10 V

The correct choice depends on the installed equipment and application. Existing systems should normally be matched to the signal architecture already in use unless a redesign is intended.

Analogue Input vs Analogue Output

An analogue input receives a continuously variable signal from a field device.

Examples include a PLC receiving pressure or level from a 4–20 mA transmitter.

An analogue output sends a continuously variable command to another device.

Examples include a PLC sending a 4–20 mA or 0–10 V speed reference to a VSD or valve positioner.

Input and output modules are not interchangeable.

What Is Signal Scaling?

The PLC or controller receives an electrical value and converts it into meaningful engineering units.

For example:

4–20 mA → 0–100 percent tank level

or:

4–20 mA → 0–16 bar pressure

The scaling configured in the controller must match the range configured in the transmitter.

If the transmitter is changed from 0–10 bar to 0–16 bar but the PLC scaling is not updated, the displayed process value will be incorrect even though the electrical signal is functioning correctly.

Engineering Units

Instrumentation specifications should clearly state the required measurement range and engineering units.

Examples include:

• bar, kPa or MPa for pressure
• °C for temperature
• litres per minute or cubic metres per hour for flow
• millimetres or metres for level

A numeric range without units is not enough information for accurate product selection.

Measurement Range

The measurement range defines the lower and upper values that the instrument is intended or configured to measure.

The selected range should suit the normal process conditions while also considering expected operating extremes and permissible overrange.

Oversizing the range unnecessarily can reduce useful measurement resolution in some systems, while selecting too narrow a range can expose the instrument to overrange or damage.

Accuracy

Accuracy describes how closely an instrument's indicated measurement corresponds to the actual value under specified conditions.

Manufacturers can specify accuracy in different ways, such as percentage of span, percentage of reading or a fixed value.

Two instruments both described as 0.5 percent accurate are not necessarily equivalent unless the basis of the specification is understood.

Precision, Accuracy and Repeatability

These terms are related but not identical.

Accuracy concerns closeness to the true value.

Repeatability concerns how consistently the instrument produces the same result under the same conditions.

Resolution describes the smallest change the measurement system can represent or detect.

A system can be highly repeatable while still having a calibration offset.

What Is an RTD?

An RTD, or resistance temperature detector, measures temperature through a predictable change in electrical resistance.

Platinum RTDs are common in industrial applications.

Pt100 is one of the most widely recognised types and has a nominal resistance of 100 ohms at 0 °C.

Pt100 vs Pt1000

Pt100 and Pt1000 sensors use different nominal resistance values.

A Pt100 has a nominal resistance of 100 ohms at 0 °C, while a Pt1000 has a nominal resistance of 1000 ohms at 0 °C.

The PLC input, temperature transmitter or controller must support the specific sensor type.

Two-Wire, Three-Wire and Four-Wire RTDs

Lead-wire resistance affects RTD measurements.

Different wiring arrangements are used to compensate for this effect:

• Two-wire: simplest arrangement, with lead resistance contributing directly to measurement error
• Three-wire: commonly used in industry to compensate for lead resistance under suitable conditions
• Four-wire: provides more complete compensation and is used where higher measurement accuracy is required

The input device must support the chosen wiring configuration.

What Is a Thermocouple?

A thermocouple measures temperature using a small voltage generated by the junction of two dissimilar metals.

Different thermocouple types use different material combinations and have different temperature ranges and characteristics.

Common types include K, J, T, N, R and S, among others.

Thermocouple Type Matters

A Type K thermocouple is not electrically equivalent to a Type J thermocouple.

The receiving instrument must be configured for the correct thermocouple type.

Using the wrong configuration can produce incorrect temperature readings.

Cold Junction Compensation

Thermocouple measurement depends on the temperature difference between the measurement junction and the reference connection.

Industrial thermocouple input modules and transmitters commonly provide cold-junction compensation to account for the reference terminal temperature.

Correct wiring and compatible extension or compensation cable remain important.

RTD vs Thermocouple

RTDs and thermocouples both measure temperature but have different characteristics.

RTDs are commonly selected for good accuracy and stability over moderate industrial temperature ranges. Thermocouples can operate over very wide and high temperature ranges and can provide rapid response depending on construction.

The appropriate technology depends on temperature range, required accuracy, environment, response time, installation and existing control-system input.

Temperature Transmitters

A temperature transmitter accepts a sensor input such as an RTD or thermocouple and converts it to a standard output such as 4–20 mA.

This can simplify long-distance transmission and allow the PLC to use a standard analogue input rather than a dedicated RTD or thermocouple module.

Transmitters can be mounted in a sensor head, enclosure, panel or other suitable location depending on the design.

Pressure Transmitters

Pressure transmitters convert process pressure into an electrical or digital output.

Important selection information includes:

• Pressure range
• Gauge, absolute or differential measurement
• Process connection
• Wetted materials
• Output signal
• Supply voltage
• Accuracy
• Environmental rating

Pressure range alone is not enough to identify the correct replacement.

Gauge vs Absolute Pressure

Gauge pressure is measured relative to atmospheric pressure.

Absolute pressure is measured relative to a vacuum reference.

The distinction matters because instruments with the same numeric range can produce different process information.

Differential Pressure

Differential-pressure transmitters measure the difference between two pressure points.

They are used in applications including filter monitoring, flow measurement and vessel level measurement.

Both process connections and the permitted static pressure should be considered during selection.

Level Instrumentation

Level can be measured using many technologies depending on the material and vessel.

Examples include:

• Hydrostatic pressure
• Ultrasonic measurement
• Radar measurement
• Capacitance
• Float systems
• Conductive probes

The appropriate technology depends on factors such as liquid or solid material, vessel dimensions, foam, vapour, temperature, pressure and required accuracy.

Level Switch vs Level Transmitter

A level switch normally provides a discrete indication when material reaches a defined point.

A level transmitter provides continuous measurement across a range.

For example, a high-level switch can provide an alarm while a continuous transmitter reports the tank level from 0 to 100 percent.

Flow Instrumentation

Industrial flowmeters use different measurement principles including electromagnetic, ultrasonic, vortex, differential pressure, turbine and other technologies.

Selection can depend on:

• Fluid
• Flow range
• Pipe size
• Conductivity
• Pressure
• Temperature
• Required accuracy
• Installation conditions
• Output signal

A flowmeter should be selected for the actual process rather than pipe diameter alone.

Pulse and Frequency Outputs

Some instruments provide pulse or frequency signals rather than analogue current or voltage.

A flowmeter, for example, can produce pulses corresponding to a defined volume.

The receiving PLC input must support the required signal frequency and electrical characteristics.

Digital Instrument Communications

Modern instruments can provide digital communication in addition to or instead of conventional analogue signals.

Depending on the product, communications can provide:

• Process value
• Secondary variables
• Diagnostics
• Configuration
• Device identification

Protocol compatibility must be checked against the PLC, gateway or asset-management system.

HART Communication

HART is commonly used with compatible 4–20 mA process instrumentation to provide digital communication superimposed on the analogue current loop.

This can allow configuration and diagnostic information to be exchanged while the primary process value continues to be represented by 4–20 mA.

Using HART functionality requires compatible field devices and appropriate communication or configuration equipment.

IO-Link in Instrumentation

IO-Link is used by many intelligent sensors and field devices to exchange process data, parameters and diagnostics with an IO-Link master.

It can simplify configuration and device replacement in suitable machine-automation applications.

IO-Link should not be confused with an ordinary digital sensor connection simply because similar M12 connectors may be used.

Signal Isolation

Signal isolators electrically separate parts of an instrumentation circuit while reproducing the measurement signal.

Isolation can be useful for reducing ground-loop problems, protecting control equipment and interfacing circuits with different electrical references.

The isolator must support the required input, output, power arrangement and accuracy.

Signal Converters

Signal converters can translate between compatible measurement signal types.

Examples can include:

• 0–10 V to 4–20 mA
• RTD to 4–20 mA
• Thermocouple to 4–20 mA
• Frequency to analogue output

Conversion range, isolation, accuracy and power requirements should be specified.

Ground Loops

Ground loops can occur when different parts of a measurement circuit are connected to ground at different electrical potentials.

This can introduce unwanted current and measurement error.

Correct grounding, shielding and signal isolation can be important in preventing these problems.

Shielding and Instrument Cable

Low-level analogue and temperature signals can be affected by electromagnetic interference.

Instrumentation cable is commonly shielded and routed separately from high-power conductors where practical.

Shield termination and grounding practices should follow the equipment manufacturer's recommendations and site engineering standards.

Electrical Noise

VSDs, contactors, motors and other switching equipment can generate electrical noise.

Poor cable routing, grounding or shielding can cause unstable analogue readings or communication problems.

Instrumentation wiring should therefore form part of the overall control-panel and field-cabling design.

Analogue Input Resolution

A PLC analogue module converts the continuous electrical signal into a digital value.

Resolution determines how finely the input range can be represented digitally.

Higher resolution can represent smaller changes, but total measurement accuracy also depends on the sensor, transmitter, wiring, input-module accuracy, calibration and process conditions.

Resolution Is Not Accuracy

A system can display many decimal places without actually measuring to that level of accuracy.

The overall measurement chain should be considered rather than relying on the bit resolution of the PLC module alone.

Analogue Module Channel Isolation

PLC analogue modules differ in how channels are electrically isolated from one another and from the system.

Isolation can matter where instruments have different ground references or where high noise immunity is required.

Module specifications should be checked for the intended wiring architecture.

Multiplexed vs Individually Converted Inputs

Analogue input modules can use different internal conversion architectures.

These differences can affect update time and channel-to-channel performance.

For ordinary process measurements the distinction may be minor, while faster control applications can require closer attention to module sampling specifications.

Instrument Response Time

Not every process requires the fastest possible instrument.

Tank level may change slowly, while pressure in a machine hydraulic circuit can change rapidly.

The sensor, transmitter, PLC input and control program all contribute to total measurement response.

Damping and Filtering

Transmitters and controllers can provide damping or filtering to reduce unstable or noisy readings.

Excessive filtering can make a measurement respond too slowly, while insufficient filtering can produce unnecessary variation.

Settings should suit the process dynamics.

Calibration

Calibration compares an instrument against a suitable reference and determines whether its measurement is within the required tolerance.

Calibration requirements depend on the process, industry, quality system and regulatory environment.

Replacing an instrument does not automatically remove the need for commissioning or calibration verification.

Zero and Span

In analogue instrumentation, zero generally relates to the lower measurement point and span is the difference between the upper and lower range values.

For a transmitter ranged 0–10 bar, the span is 10 bar.

For a transmitter ranged -1 to 9 bar, the span is also 10 bar even though the lower range value is different.

Turndown and Ranging

Some intelligent transmitters can be configured for measurement ranges smaller than their sensor's maximum capability.

The permitted turndown and resulting performance are manufacturer-specific.

Do not assume that any transmitter can be re-ranged arbitrarily without affecting accuracy or meeting stated limits.

Process Connections

Instrumentation connects physically to the process using fittings, threads, flanges, hygienic connections, probes and other arrangements.

When replacing an instrument, identify the exact process connection and orientation.

A technically suitable transmitter with the wrong mechanical connection can create unnecessary adaptation work or be unusable.

Wetted Materials

Wetted materials are the instrument materials that come into direct contact with the process medium.

Material compatibility is important for corrosive, hygienic or chemically aggressive applications.

Stainless steel is common but is not universally suitable for every chemical or process.

Environmental Protection

Industrial instruments can be exposed to water, dust, vibration, heat, sunlight, chemicals and washdown.

Important specifications can include:

• IP rating
• Operating temperature
• Housing material
• Vibration resistance
• UV exposure suitability
• Hazardous-area approvals where required

The installation environment should be specified during purchasing.

Hazardous Areas

Instrumentation installed where explosive gas, vapour or dust atmospheres may occur requires appropriate hazardous-area assessment and certified equipment.

Equipment selection can involve protection methods, zones, gas or dust groups, temperature classes and intrinsic-safety barriers.

This is a specialist safety area and equipment should be selected according to the site's hazardous-area classification and applicable standards.

Intrinsic Safety

Intrinsic safety limits electrical energy in circuits used in hazardous areas so that ignition is prevented under defined conditions.

Intrinsic-safety systems can involve field instruments, barriers or isolators, cable parameters and certified system relationships.

An intrinsically safe instrument should not be selected or wired based only on a general product description.

Instrumentation and PLCs

PLCs receive instrumentation through suitable input modules or communication interfaces.

Examples include:

• 4–20 mA analogue input
• 0–10 V analogue input

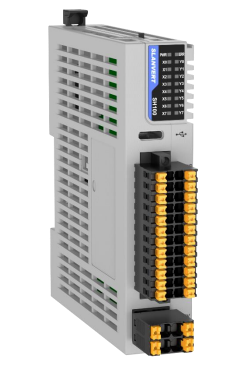

• RTD input
• Thermocouple input
• High-speed pulse input
• Industrial communications

The field instrument and PLC module must be electrically and functionally compatible.

Instrumentation and Remote I/O

Remote I/O allows analogue and temperature signals to be collected closer to field equipment and communicated digitally back to the PLC.

This can reduce long home-run cable requirements in distributed plants.

The remote I/O system still needs the correct analogue, RTD or thermocouple modules for the field signals.

Instrumentation and HMIs

An HMI normally displays process values obtained from the PLC or controller.

It can show pressure, temperature, flow, level, alarms, trends and setpoints.

The accuracy of the displayed value ultimately depends on the entire measurement chain from the field instrument through the PLC configuration.

Instrumentation and VSDs

VSDs can receive analogue process references and can also provide analogue outputs representing operating conditions.

A PLC might send a 4–20 mA speed command to a VSD, or a pressure transmitter might feed a compatible VSD PID function directly in a standalone pumping application.

The signal type, scaling and control architecture must be verified for the specific drive.

Replacing an Existing Instrument

For a replacement instrument, collect the exact existing model number wherever possible.

Also identify:

• Measurement type
• Measurement range and units
• Output signal
• Supply voltage
• Process connection
• Electrical connection
• Probe or insertion length
• Wetted materials
• Accuracy requirement
• Environmental rating
• Hazardous-area approval if applicable

A photograph of the nameplate and installed connection can be extremely useful.

Common Instrumentation Selection Mistakes

• Ordering by measurement range alone
• Confusing 4–20 mA with 0–10 V
• Assuming every 4–20 mA device is two-wire loop-powered
• Ignoring active and passive current-loop arrangements
• Ordering the wrong RTD type
• Ordering the wrong thermocouple type
• Ignoring two-wire, three-wire or four-wire RTD configuration
• Forgetting process connection size and thread type
• Ignoring wetted-material compatibility
• Confusing gauge and absolute pressure
• Replacing a transmitter without checking PLC scaling
• Assuming resolution equals measurement accuracy
• Ignoring hazardous-area certification
• Using unsuitable cable or routing instrumentation with noisy power wiring
• Assuming a digital communication feature is supported by the existing controller

A Practical Planning Checklist

For an accurate instrumentation quotation, provide as much of the following information as possible:

• Measured variable: pressure, temperature, flow, level or other
• Application/process: ___
• Measurement range: ___
• Engineering units: ___
• Output signal: 4–20 mA, 0–10 V, RTD, thermocouple, pulse, digital or other
• Supply voltage: ___
• Two-wire/three-wire/four-wire: ___
• Required accuracy: ___
• Process medium: ___
• Process temperature: ___
• Process pressure: ___
• Process connection: ___
• Electrical connection: cable gland, plug, terminal or other
• Probe/insertion length if applicable: ___
• Wetted materials required: ___
• IP/environmental rating: ___
• Hazardous area: yes, no or unsure
• Required communications: ___
• PLC/remote I/O model: ___
• Existing instrument manufacturer: ___
• Existing model number: ___
• Quantity: ___

For replacement enquiries, clear photographs of the existing instrument nameplate, process connection and electrical connection can help identify the correct product.

How Instrumentation Fits Into a Complete Automation System

Instrumentation is the measurement layer of an industrial control system. Sensors and transmitters convert real process conditions into signals that PLCs, remote I/O systems, controllers and monitoring platforms can use.

A typical measurement path can look like:

Process → Sensor or transmitter → Analogue input or remote I/O → PLC → HMI or SCADA

The reliability of the displayed and controlled process value depends on every part of this chain, including the field instrument, wiring, signal conditioning, PLC input and software scaling.

Understanding these relationships also helps purchasing teams identify the specifications required before equipment is ordered.

Products listed in our active online catalogue can be purchased or quoted through the Softcore Group Industrial Solutions store. Other brands, models and project-specific instrumentation can be quoted on request, with pricing, availability and lead time confirmed separately.

For replacement enquiries, provide the existing instrument model number and a clear photograph of the nameplate wherever possible. For new requirements, the measured variable, range, process conditions, output signal, connection and control-system interface are useful starting points before quotation.

Technical Note

This article provides general industrial instrumentation and automation information. Instrument selection, process compatibility, measurement accuracy, electrical installation, hazardous-area requirements, intrinsic safety, calibration and control-system configuration must be assessed for the specific application. Manufacturer documentation, applicable standards, site requirements and engineering specifications take precedence. Safety-critical and hazardous-area applications should be assessed and implemented by appropriately competent personnel.

Related catalogue examples: PLCs & Programmable Controllers. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
