Industrial Control Panels Explained: PLC Panels, VSD Panels, MCCs and Control Enclosures

Quick overview: This guide explains industrial control panels and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Industrial control panels bring electrical power, automation, motor control, instrumentation and communications together in a structured system. They can range from a relatively small enclosure containing a PLC and a few relays to a large motor control centre serving multiple motors, drives and process areas.

Because so many technologies meet inside the panel, successful panel specification requires more than selecting an enclosure and filling it with components. Supply voltage, fault level, motor loads, control philosophy, environmental conditions, heat dissipation, cable entry, segregation, communications, maintenance access, safety requirements and future expansion can all affect the final design.

This guide explains the main types of industrial control panels, the equipment commonly found inside them and the information that helps when a new panel, replacement panel or panel-related equipment needs to be specified.

What Is an Industrial Control Panel?

An industrial control panel is an enclosure or assembly containing electrical and automation equipment used to control, protect, monitor or distribute power to machinery and industrial processes.

Depending on the application, a panel can contain:

• PLCs and remote I/O
• VSDs and soft starters
• Contactors and motor protection
• Circuit breakers and fuses
• 24 VDC power supplies
• Relays and interface modules
• Industrial Ethernet switches
• HMIs
• Signal isolators and instrumentation interfaces
• Terminal blocks
• Surge protection
• Control transformers
• Safety equipment

Control Panel vs Distribution Board

A distribution board primarily distributes and protects electrical power circuits.

A control panel primarily contains equipment used to control a machine or process, although it can also contain power distribution and protection.

Many industrial assemblies perform both functions, which is why the exact application matters more than the label alone.

What Is a PLC Control Panel?

A PLC panel contains a programmable logic controller and the equipment needed to interface it with the field process.

A typical PLC panel can include:

• PLC CPU
• Digital and analogue I/O
• Remote I/O interfaces
• 24 VDC power supplies
• Industrial Ethernet switches
• Relays
• Signal conditioners
• Terminal blocks
• Circuit protection
• HMI or operator controls

The PLC receives information from sensors and instrumentation, executes the control program and commands outputs such as contactors, solenoid valves, VSDs and actuators.

What Is a VSD Panel?

A VSD panel contains one or more variable speed drives together with the equipment required to safely integrate the drives into the electrical and control system.

Depending on the design, a VSD panel can include:

• Incoming isolation
• Branch circuit protection
• Variable speed drives
• Line reactors or filters where required
• Bypass arrangements where specified
• Control power supplies
• PLC or control relays
• Ventilation or cooling
• Operator controls
• Communication equipment
• Motor terminals

The correct VSD must still be selected for the motor and application. Panel integration does not remove the need to check motor current, supply voltage, duty, overload requirements and environmental conditions.

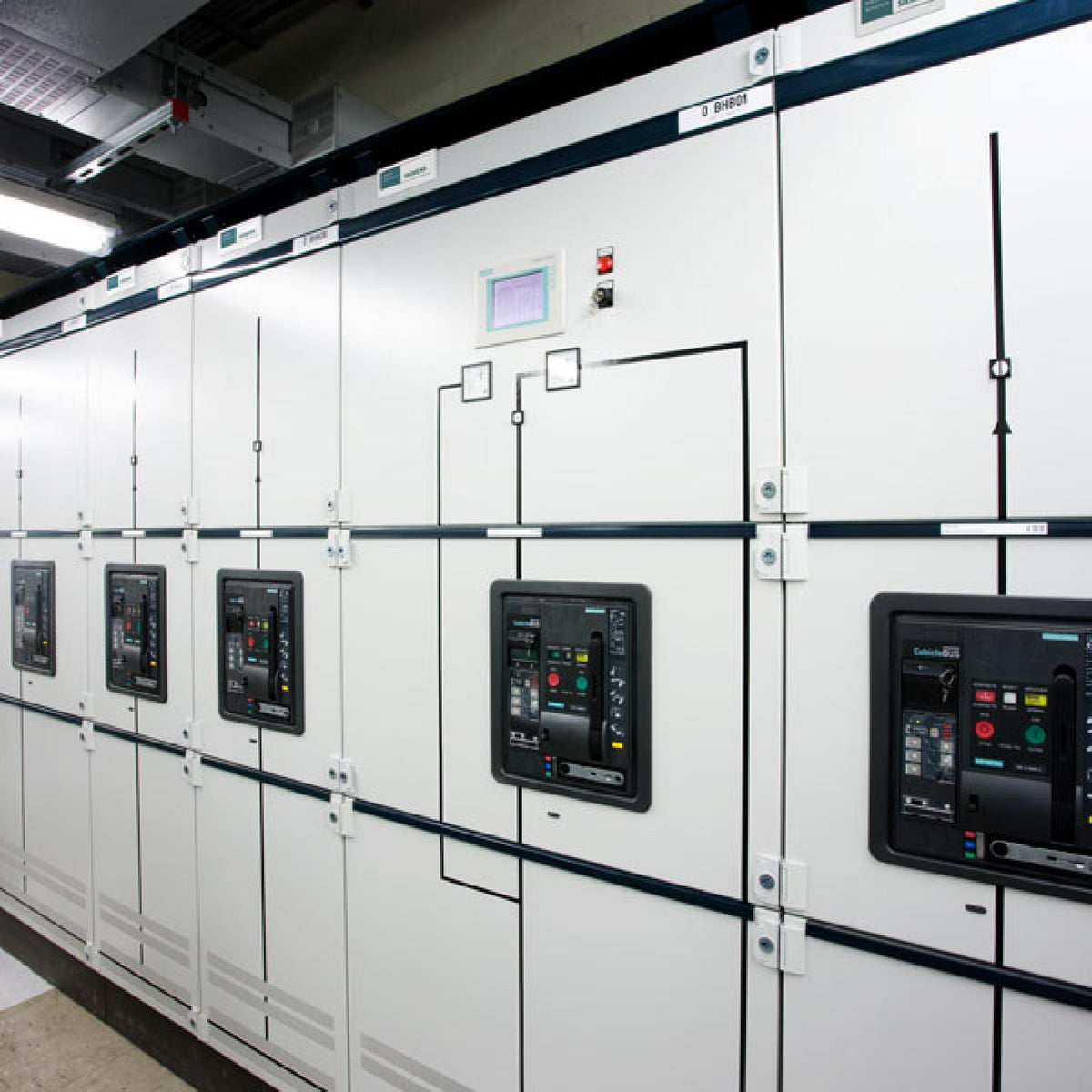

What Is an MCC?

MCC stands for motor control centre.

An MCC is an electrical assembly used to distribute power to and control multiple motors or other industrial loads.

Motor feeders can use:

• Direct-on-line starters
• Star-delta starters
• Soft starters
• Variable speed drives
• Other application-specific motor-control arrangements

Large MCCs are often divided into sections or compartments to organise incoming power, busbars, motor feeders and control equipment.

MCC vs VSD Panel

A VSD panel can serve one motor or a small group of drives, while an MCC is typically a larger assembly containing multiple motor feeders and potentially several motor-control technologies.

An MCC can itself contain VSD feeders.

The terms therefore describe overlapping but not identical equipment.

MCC vs PLC Panel

An MCC focuses primarily on electrical power distribution and motor control. A PLC panel focuses primarily on automation and process control.

In many plants, the PLC panel communicates with the MCC and commands its motor starters or drives.

In other systems, PLC equipment can be integrated into the MCC assembly.

Integrated Control Panels

Smaller systems often combine PLC, VSD, motor starter and distribution equipment in one enclosure.

This can reduce footprint and simplify installation, but it increases the importance of:

• Electrical segregation
• Heat management
• EMC considerations
• Maintenance access
• Correct enclosure sizing

Incoming Electrical Supply

Panel design begins with the available electrical supply.

Important information includes:

• Nominal voltage
• Number of phases
• Frequency
• Earthing arrangement
• Available fault level where relevant
• Upstream protective device

Components must be suitable for the actual electrical system rather than selected from load power alone.

Incoming Isolator

An incoming isolator provides a means of disconnecting the panel or defined section from its electrical supply.

The required device type, rating, locking arrangement and operating handle depend on the electrical and machinery design.

Isolation requirements should be coordinated with applicable standards and site procedures.

Main Circuit Breaker

A main circuit breaker can provide incoming overcurrent and short-circuit protection depending on the panel architecture.

Its selection involves more than the normal operating current.

Important considerations can include:

• Rated current
• Breaking capacity
• System voltage
• Trip characteristics
• Discrimination or selectivity
• Coordination with downstream protection

Short-Circuit Rating

Electrical equipment must be capable of safely handling the prospective fault conditions at its installation point.

A protective device with insufficient breaking capacity can be unsafe even if its current rating appears correct.

Panel fault withstand and short-circuit ratings require engineering assessment based on the supply system and assembly.

Busbars

Busbars distribute electrical power within larger panels and switchboards.

Selection can involve:

• Current carrying capacity
• Short-circuit withstand
• Material
• Temperature rise
• Support spacing
• Clearances and creepage

Busbar design should form part of the engineered assembly rather than being based only on steady-state current.

Motor Feeders

A motor feeder supplies and protects an individual motor circuit.

Depending on the starting method, it can contain:

• Motor protection circuit breaker
• Contactor
• Overload relay
• Soft starter
• VSD
• Control relays
• Fuses or circuit breakers

The feeder must suit the motor, cable, starting method and fault conditions.

Direct-on-Line Motor Starters

A direct-on-line starter connects the motor directly to the supply through a contactor and appropriate protection.

It is relatively simple but produces high starting current and mechanical starting torque.

Whether DOL starting is suitable depends on motor size, supply limitations and driven equipment.

Star-Delta Starters

Star-delta starting reduces motor starting current by initially connecting a suitable motor in star and then changing to delta for normal operation.

The motor must have the correct winding arrangement and terminal accessibility.

Star-delta control also requires correctly coordinated contactors, timing and interlocking.

Soft Starter Panels

A soft starter controls motor voltage during starting and often stopping to reduce electrical and mechanical stress.

A soft starter panel can include bypass contactors, protection and control equipment according to the application and starter design.

Soft starters do not provide the same continuous speed control as VSDs.

VSD Panels and Heat

Variable speed drives generate heat during operation.

Multiple drives inside an enclosure can create a substantial thermal load even when each drive is operating within its electrical rating.

Panel thermal design should consider drive losses, other component losses, ambient temperature and enclosure construction.

Panel Cooling

Cooling methods can include:

• Natural convection
• Filtered fans
• Heat exchangers
• Panel air conditioners
• Other engineered cooling arrangements

The correct method depends on heat load, ambient temperature, dust, moisture and enclosure sealing requirements.

Why a Bigger Fan Is Not Always the Answer

Forced ventilation brings ambient air into the enclosure.

In dusty, corrosive or wet environments, this can introduce contaminants that damage equipment.

Where the enclosure needs to remain sealed, a closed-loop cooling method may be more appropriate.

Enclosure IP Rating

The enclosure must provide suitable protection against the installation environment.

Ingress Protection ratings define levels of protection against solid objects and water under specified test conditions.

Selection should consider actual exposure such as:

• Indoor dust
• Outdoor rain
• Washdown
• Windblown material
• Condensation
• Process contamination

Adding ventilation openings, fans or cable entries can affect the effective protection of the finished assembly.

Enclosure Materials

Common control enclosure materials include:

• Painted mild steel
• Stainless steel
• Polyester or other non-metallic materials

The correct material depends on corrosion, mechanical strength, environment, hygiene requirements and project specification.

Indoor vs Outdoor Control Panels

Outdoor panels face additional conditions including:

• Solar heat gain
• Rain
• UV exposure
• Condensation
• Temperature variation
• Dust and insects

Outdoor enclosure selection should therefore consider more than IP rating alone.

Solar Loading

Direct sunlight can raise the internal temperature of an outdoor enclosure significantly above ambient temperature.

Sunshields, double-skin arrangements, suitable finishes and cooling can form part of the thermal strategy.

Condensation Control

Condensation can occur when enclosure temperature falls below the dew point.

Depending on the application, anti-condensation heaters, thermostats, hygrostats, drainage or controlled ventilation can help manage moisture.

The appropriate method depends on the enclosure and environmental conditions.

Panel Size

A panel should not be sized only by whether the components can physically fit.

Space is also required for:

• Heat dissipation
• Wiring ducts
• Cable bending radius
• Terminal blocks
• Maintenance access
• Component clearances
• Future expansion

An overcrowded panel is harder to build, cool, maintain and modify.

Future Expansion

Where practical, reasonable spare space can allow future additions such as extra I/O, network equipment, terminals or feeders.

The appropriate allowance should be defined by project needs rather than leaving arbitrary empty space.

DIN Rail

DIN rail provides a standard mounting system for many industrial control components.

Typical DIN rail devices include:

• Power supplies
• Relays
• Terminal blocks
• Circuit protection
• PLCs
• Remote I/O
• Industrial Ethernet switches
• Signal isolators

DIN rail arrangement should support wiring access and heat-management requirements.

Wiring Duct

Slotted wiring duct helps route and organise internal panel conductors.

Duct sizing should allow conductors to be installed without excessive crowding and should support separation requirements where applicable.

Good wiring organisation improves maintenance and troubleshooting.

Terminal Blocks

Terminal blocks create organised connection points between internal panel wiring and field cables.

Different terminal types can support:

• Power conductors
• Control signals
• Protective earth
• Fused circuits
• Disconnect functions
• Test connections
• Sensor distribution

Terminal numbering and documentation are important for maintenance.

Protective Earth

Metal enclosures and exposed conductive parts require appropriate protective bonding according to the electrical design.

Doors and removable panels can require bonding conductors where electrical continuity through hinges or mechanical contact is not sufficient for the design.

Earthing should be implemented according to applicable standards and site requirements.

Control Voltage

Industrial panels can contain several control voltages.

24 VDC is widely used for PLCs, sensors, relays and automation equipment, while other voltages can be present for contactor coils, legacy controls or specialised equipment.

Control voltage should be clearly specified and documented.

24 VDC Power Supplies

DIN rail power supplies commonly convert AC power into regulated 24 VDC for control equipment.

Power supply sizing should account for PLCs, sensors, relays, HMIs, networking, remote I/O and other connected loads as well as suitable design margin and peak demands.

Critical systems can also use redundant power supplies, DC UPS systems or buffer modules.

Control Transformers

Control transformers can provide an isolated AC control voltage where required.

Primary and secondary protection, transformer rating, inrush and earthing arrangements should be considered as part of the electrical design.

PLCs in Control Panels

The PLC is often the central automation controller.

Panel design should provide suitable space and environmental conditions for:

• CPU
• I/O modules
• Communication modules
• Expansion modules
• Power supplies

Manufacturer clearance and mounting instructions should be followed.

Remote I/O

Remote I/O can move field connection points away from the main PLC panel and closer to equipment.

This can reduce field cable quantities and distribute the automation architecture across a plant.

The main panel can then contain the PLC and industrial network equipment while remote stations handle local signals.

HMIs and Operator Controls

Panel doors can contain:

• HMI touchscreens
• Pushbuttons
• Selector switches
• Indicator lamps
• Emergency-stop devices
• Meters

Door-mounted equipment affects enclosure cut-outs, wiring, ingress protection and operator ergonomics.

Emergency Stops

An emergency-stop button is only one component of a machine safety function.

The complete safety circuit can involve safety relays, safety PLCs, contactors, drive safe-torque-off functions and monitored devices.

Ordinary PLC logic should not be assumed to provide a required safety function unless the system is specifically designed and rated for that purpose.

Safety Relays and Safety PLCs

Safety-rated control equipment is used where risk assessment identifies required safety functions.

Selection depends on the required safety architecture, inputs, outputs, diagnostic needs and applicable machinery safety standards.

Safety equipment should be engineered as part of the machine safety system rather than treated as ordinary control hardware.

Relays and Interface Modules

Interface relays allow PLC outputs and field circuits to be electrically or functionally interfaced.

They can provide:

• Contact isolation
• Voltage interfacing
• Replaceable switching elements
• Higher switching capacity than some PLC outputs

The relay coil and contact ratings must suit the actual circuit.

Contactors

Contactors are electrically operated switching devices commonly used for motors, heaters and other power loads.

Selection depends on load type, current, voltage, utilisation category, coil voltage and switching duty.

A contactor should not be selected solely from its headline ampere rating.

Overload Relays

Motor overload relays protect against sustained overload conditions according to their design and settings.

They do not replace short-circuit protection.

Motor protection normally requires coordinated devices appropriate to the motor circuit.

Motor Protection Circuit Breakers

Motor protection circuit breakers can combine switching, short-circuit protection and adjustable motor overload protection depending on the product.

They are commonly used in motor starter feeders.

Coordination with contactors and the available fault level should be checked.

Surge Protection Devices

Surge protection devices can help limit transient overvoltages entering or occurring within an electrical system.

SPD selection and coordination depend on the electrical installation, supply system and protection concept.

Panel-level surge protection should form part of a wider site strategy where required.

VSD Input and Output Considerations

VSD installations can require attention to:

• Input protection
• Line reactors
• EMC filters
• Motor cable length
• Output reactors or filters
• Motor insulation
• Earthing and shielding

The required accessories depend on the drive, motor, cable and installation.

EMC and Electrical Noise

Variable speed drives, contactors and switching power electronics can generate electromagnetic interference.

Sensitive analogue signals and industrial communications can be affected by poor panel layout or wiring practices.

EMC-conscious design can include:

• Physical separation
• Correct cable routing
• Shield termination
• Appropriate earthing
• Suitable filters where required

Segregating Power and Control Wiring

High-power conductors should not simply be bundled together with low-level analogue and communication wiring.

Separation can reduce electrical interference and improve maintainability.

Exact separation requirements depend on voltage, signal type, cable construction, manufacturer guidance and applicable standards.

Analogue Instrumentation Wiring

Signals such as 4–20 mA, RTDs and thermocouples can require shielded cable, suitable grounding and separation from noisy power circuits.

Signal isolators or conditioners can be used where required by the measurement architecture.

Panel terminals should clearly distinguish instrumentation circuits from ordinary digital wiring.

Industrial Ethernet Inside Panels

Modern control panels frequently contain industrial Ethernet switches connecting:

• PLCs
• HMIs
• VSDs
• Remote I/O
• Servo systems
• Gateways
• SCADA networks

Managed switches can provide diagnostics, VLANs, redundancy and other network functions where the application requires them.

Fibre in Control Panels

Fibre can be used for uplinks between panels, buildings or process areas where distance, electrical isolation or electromagnetic conditions favour optical communication.

Fibre termination, bend radius, connector type and SFP compatibility should be considered when planning the enclosure.

Industrial Routers and Gateways

Panels used for remote sites can contain industrial routers or gateways for cellular connectivity, telemetry or protocol conversion.

These devices can require antennas, surge protection, network segregation and secure remote-access configuration.

Panel Network Segmentation

Connecting automation equipment to a wider network should be planned rather than treating every Ethernet port as equivalent.

Network architecture can include managed switches, VLANs, firewalls, routers and controlled remote-access systems depending on the site.

Cybersecurity should form part of the overall OT system design.

Panel Labels

Clear labelling improves installation and maintenance.

Labels can identify:

• Panel designation
• Feeders
• Devices
• Terminal numbers
• Cables
• Wire numbers
• Voltages
• Safety warnings

Labelling should correspond with the electrical documentation.

Wire Identification

Consistent wire numbering makes troubleshooting significantly easier.

A technician should be able to follow a conductor from the schematic to the physical terminal or device without relying on memory or colour alone.

Electrical Schematics

Control-panel documentation commonly includes electrical schematics showing how components are connected.

Good schematics support:

• Installation
• Commissioning
• Fault finding
• Future modification
• Replacement component identification

Changes made during commissioning should be reflected in final as-built documentation where required.

General Arrangement Drawings

A general arrangement drawing shows the physical layout of the panel and major components.

It can include enclosure dimensions, mounting plate arrangement, door equipment, cable entries and component locations.

This is useful for both fabrication and site planning.

Bill of Materials

A bill of materials identifies the components used in the assembly.

Useful information includes:

• Manufacturer
• Part number
• Description
• Quantity

An accurate BOM also simplifies future spares purchasing.

Panel Heat Calculations

Heat generated by equipment should be assessed against enclosure size, ambient temperature and cooling method.

Important heat sources can include:

• VSDs
• Soft starters
• Power supplies
• Transformers
• Contactors
• PLCs
• Network equipment

Manufacturer power-loss data provides a better basis for thermal design than guessing from component size.

Panel Space Around VSDs

Drive manufacturers specify minimum clearances for cooling and installation.

Placing drives too close together or against wiring duct can restrict airflow and increase temperature.

Manufacturer mounting instructions should be incorporated into the panel layout.

Top vs Bottom Cable Entry

Panels can be designed for top, bottom or side cable entry depending on site requirements.

Cable entry planning should consider:

• Incoming power cables
• Motor cables
• Control cables
• Instrumentation
• Network and fibre
• Cable gland space
• Bending radius

Large power cables can require substantial termination space.

Cable Glands

Cable glands secure cables entering the enclosure and can contribute to strain relief, environmental sealing and earthing or shielding functions depending on their design.

Gland selection depends on cable diameter, armour, enclosure material, IP requirement and installation environment.

Gland Plates

Removable gland plates can simplify fabrication and cable entry.

The plate must provide sufficient area and mechanical strength for the intended cable population while maintaining the required enclosure protection.

Panel Doors

Door layout should consider operator access, visibility and internal component clearance.

Door-mounted HMIs and switches also require flexible wiring arrangements that tolerate repeated opening.

Heavy door equipment can affect hinge loading and enclosure selection.

Internal Lighting and Service Sockets

Larger panels can include internal lighting and maintenance sockets where specified.

These circuits should be appropriately protected and clearly distinguished from control circuits.

The required voltage and socket standard should be defined for the installation.

Panel Anti-Condensation Heaters

Heaters can keep enclosure temperature above the dew point to reduce condensation during cold or humid conditions.

They are often controlled by thermostats or hygrostats.

Heater sizing and placement should avoid overheating nearby components.

Panel Fans and Filters

Filtered fan systems move ambient air through an enclosure to remove heat.

Filters require maintenance because accumulated dust reduces airflow.

Maintenance accessibility should therefore be considered when fans and filters are selected.

Panel Air Conditioners

Enclosure air conditioners provide closed-loop cooling and can be useful where ambient air is too hot or contaminated for ordinary fan ventilation.

Cooling capacity should be selected from the actual thermal load and ambient conditions.

Condensate management and maintenance access also need consideration.

Form of Separation

Larger switchboard and MCC assemblies can use internal separation between busbars, functional units and terminals.

The required form of separation is project- and standard-dependent and affects safety, maintenance access, size and cost.

It should be specified before fabrication rather than added as an afterthought.

Fixed vs Withdrawable MCC Feeders

Fixed feeders are permanently mounted and wired within the MCC section.

Withdrawable designs allow functional units to be removed or isolated using an engineered draw-out arrangement.

Withdrawable systems can improve maintenance flexibility but add complexity and cost.

The choice depends on plant availability requirements and project specification.

Local vs Remote Control

Motor feeders can be controlled locally from the panel, remotely from a PLC or both.

A local/remote selector can allow maintenance or operational control modes where the process design permits it.

The exact control philosophy should be documented because it affects wiring and PLC logic.

Auto and Manual Modes

Automatic and manual control modes are common in pumps, conveyors and process equipment.

Manual mode does not necessarily mean bypassing all protection or safety functions.

The permitted behaviour should be defined by the control philosophy and risk assessment.

Interlocks

Interlocks prevent equipment from operating when required conditions are not satisfied.

They can be implemented electrically, mechanically, in PLC logic or through safety-rated systems depending on their function.

Critical protection and safety interlocks require appropriate engineering and validation.

Control Panel Testing

Panel assemblies should be inspected and tested according to the project requirements and applicable standards before delivery or energisation.

Testing can include:

• Visual inspection
• Wiring verification
• Protective-earth continuity
• Insulation tests where appropriate
• Functional testing
• I/O simulation
• Network checks
• Device configuration verification

The exact test regime depends on the assembly and project.

Factory Acceptance Testing

A factory acceptance test, or FAT, allows specified panel functions to be checked before equipment is delivered to site.

Depending on scope, it can include:

• Documentation review
• Component verification
• PLC and HMI operation
• Alarm testing
• I/O simulation
• Communication testing
• Motor-control sequence checks

Not every project requires the same FAT scope, so expectations should be agreed in advance.

Site Acceptance and Commissioning

Once installed, the panel must be integrated with actual field equipment, electrical supplies and process conditions.

Site work can include cable checks, I/O testing, motor rotation, instrument verification, network commissioning and control-sequence testing.

Fabrication and site commissioning are distinct project activities and should be scoped accordingly.

Replacing an Existing Control Panel

Replacing an old panel can be more complex than building a new one because the new system must interface with existing field wiring and equipment.

Useful information includes:

• Existing schematics
• Panel photographs
• Incoming supply details
• Motor list
• I/O list
• Instrument list
• Existing PLC and program information
• Network architecture
• Available installation space
• Cable entry locations

A site survey is often valuable for replacement projects.

Obsolete Components

Older panels can contain discontinued PLCs, drives, breakers, relays and communication equipment.

Replacement can involve either finding a compatible spare or redesigning part of the system around a current product.

A new component should not be assumed to be a drop-in replacement simply because it performs a similar function.

Panel Retrofits

A retrofit upgrades selected equipment while retaining the existing enclosure or portions of the installation.

Examples include:

• Replacing obsolete VSDs
• Upgrading a PLC
• Adding industrial Ethernet
• Replacing motor starters
• Adding remote monitoring

The existing panel must have adequate space, cooling, protection and condition for the proposed modification.

Common Control Panel Selection Mistakes

• Specifying only the enclosure dimensions without the electrical requirements
• Providing motor kW but not motor full-load current or supply voltage
• Ignoring prospective fault level
• Underestimating VSD heat dissipation
• Choosing an IP rating without considering fans and cable entries
• Not defining indoor or outdoor installation
• Mixing power and instrumentation wiring without adequate segregation
• Forgetting cable entry and termination space
• Providing an I/O count without signal types
• Not defining communication protocols
• Ignoring future expansion requirements
• Assuming emergency-stop functions can be handled by ordinary PLC logic
• Not specifying required documentation
• Not defining testing or FAT requirements
• Replacing an old panel without verifying existing field wiring and control philosophy

A Practical Planning Checklist

For a useful control-panel quotation, provide as much of the following information as possible:

• Application/process: ___
• Panel type: PLC panel, VSD panel, MCC, distribution/control panel or other
• Incoming voltage: ___
• Number of phases: ___
• Frequency: ___ Hz
• Available fault level if known: ___
• Indoor or outdoor: ___
• Required IP rating: ___
• Enclosure material: mild steel, stainless steel, non-metallic or other
• Ambient temperature: ___ °C
• Panel dimensions or space constraints: ___
• Cable entry: top, bottom, side or unknown
• Motor list: motor kW, voltage, current and application
• Motor starting method: DOL, star-delta, soft starter, VSD or to be determined
• PLC platform: ___
• Digital inputs: ___
• Digital outputs: ___
• Analogue inputs: ___
• Analogue outputs: ___
• RTD/thermocouple inputs: ___
• Required communications: Modbus, PROFINET, EtherNet/IP, EtherCAT or other
• HMI required: yes/no and size if known
• Industrial network equipment required: ___
• Remote access/telemetry required: ___
• Control voltage: ___
• Backup or redundant control power required: ___
• Cooling method: fan, air conditioner, natural or to be determined
• Safety functions: ___
• Local controls: pushbuttons, selectors, lamps or HMI
• Required spare capacity: ___
• Documentation required: schematics, GA, BOM, I/O list or other
• FAT required: yes/no and scope
• Existing panel drawings available: yes/no
• Quantity: ___

For replacement or retrofit enquiries, clear photographs of the existing panel, device nameplates and available drawings can substantially improve the initial assessment.

How This Fits Into the Wider System

A control panel is where many industrial technologies come together.

A typical system can combine:

Electrical supply and protection → 24 VDC control power → PLC and I/O → sensors and instrumentation → industrial communications → VSDs, starters and actuators → HMI or SCADA

Understanding the complete system also makes it easier to select compatible components instead of treating every part as an isolated purchase.

For a new panel enquiry, provide the electrical supply, load or motor list, control requirements, I/O, environment and required documentation where available. For replacement panels, existing drawings and clear panel photographs are particularly useful starting points.

Technical Note

This article provides general industrial electrical and automation information. Control-panel design, fault-level calculations, protection coordination, conductor and busbar sizing, thermal design, earthing, machinery safety, EMC, hazardous-area requirements, testing and compliance must be assessed for the specific application. Manufacturer documentation, applicable standards, site requirements, engineering specifications and statutory requirements take precedence. Electrical and safety-related systems should be designed, manufactured, installed, tested and commissioned by appropriately competent persons within the required scope.

Related catalogue examples: Custom Control Panels | Variable Speed Drives. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
