Fibre Optic Cabling Explained: Single Mode vs Multimode, Connectors, SFPs and Choosing the Right Fibre

Quick overview: This guide explains fibre optic cabling and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Fibre optic cabling is widely used for network backbones, industrial Ethernet, building-to-building links, telecommunications infrastructure and long-distance communications. It provides high bandwidth, long transmission distances and electrical isolation between network locations.

However, fibre components are not interchangeable simply because the connectors appear to fit. Fibre type, connector polish, wavelength, transceiver type, data rate, distance and cable construction all need to be compatible.

This guide explains the main fibre optic specifications purchasing and technical teams should understand when selecting cabling, patch leads, pigtails, enclosures, adapters and optical transceivers.

How Does Fibre Optic Cabling Work?

Fibre optic cable carries information using light transmitted through thin strands of glass or, in some specialised applications, plastic.

Unlike copper Ethernet cable, fibre does not use electrical signals along the optical fibre itself. This makes fibre useful where long distances, high bandwidth or electrical separation are required.

Single Mode vs Multimode Fibre

The first major distinction is between single-mode and multimode fibre.

Single-mode fibre has a small core and is designed to carry a single propagation mode. It is widely used for longer-distance links, network backbones, telecommunications and industrial infrastructure.

Multimode fibre has a larger core and supports multiple propagation modes. It is commonly used for shorter network links within buildings, data rooms, campuses and facilities.

The fibre type must match the optical transceivers at both ends of the link.

What Is OS2 Fibre?

OS2 is a common designation for single-mode optical fibre used in modern communications infrastructure.

It is widely used for outdoor, backbone and long-distance Ethernet applications when paired with appropriate single-mode optics.

When ordering, do not specify only OS2. The cable construction, number of cores, armour, installation environment and termination requirements also matter.

What Are OM1, OM2, OM3, OM4 and OM5?

OM designations describe categories of multimode optical fibre.

OM1 and OM2 are older multimode fibre categories still encountered in existing installations. OM3 and OM4 are widely used for higher-speed multimode Ethernet applications, while OM5 is designed to support additional wavelength-based multimode applications.

The supported Ethernet distance depends on the fibre category, transceiver and data rate.

Do not assume that all multimode fibre supports the same speed over the same distance.

Core and Cladding Size

Common single-mode telecommunications fibre uses a nominal 9/125 micrometre construction, while common modern multimode fibre uses 50/125 micrometre construction. Older OM1 multimode fibre is commonly 62.5/125 micrometres.

These physical differences are one reason single-mode and multimode components should not be mixed without a specifically engineered reason.

Simplex vs Duplex Fibre

Simplex refers to a single fibre strand or single-fibre connection arrangement.

Duplex uses two fibres, commonly one for transmit and one for receive in conventional Ethernet links.

Many Ethernet SFP modules use duplex LC connectors and therefore require two fibre cores for the link.

BiDi optics are an important exception because they can transmit and receive over one fibre strand using different wavelengths.

What Is a Fibre Core?

In purchasing, a fibre cable may be described by the number of cores or fibres it contains, such as 2-core, 4-core, 6-core, 12-core, 24-core or larger.

The number of required cores should consider the active links, redundancy, future expansion and spare capacity.

Installing a cable with exactly the minimum number of fibres can limit future flexibility, particularly on difficult or expensive cable routes.

LC Connectors

LC connectors are compact fibre connectors widely used with SFP and SFP+ transceivers and modern network equipment.

They are commonly supplied as simplex or duplex connectors.

Because LC connectors are relatively small, they allow high port density in switches, patch panels and fibre distribution equipment.

SC Connectors

SC connectors are larger push-pull fibre connectors widely found in telecommunications, industrial and building fibre infrastructure.

SC-terminated infrastructure can connect to LC-based network equipment using an appropriate SC-to-LC patch lead, provided the fibre type and connector polish are compatible.

ST and Other Connectors

ST connectors are still encountered in some older or specialised installations. FC and other connector families are also used in particular fibre systems.

When replacing fibre components, identify the actual connector rather than assuming from a photograph if the connector type is unclear.

UPC vs APC

Connector polish is another critical specification.

UPC means Ultra Physical Contact.

APC means Angled Physical Contact.

APC connectors use an angled end face designed to reduce back reflection in appropriate optical systems.

UPC and APC connectors should not be directly mated to each other. Their end-face geometries differ and improper mating can produce high loss or damage.

Connector Colour Is Useful, but Not Enough

Fibre connectors are often colour-coded. For example, blue is commonly associated with UPC single-mode connectors and green with APC connectors.

However, colour should not replace verification of the actual specification. Manufacturers, legacy installations and specialised equipment can differ.

Use the product description, part number and technical documentation.

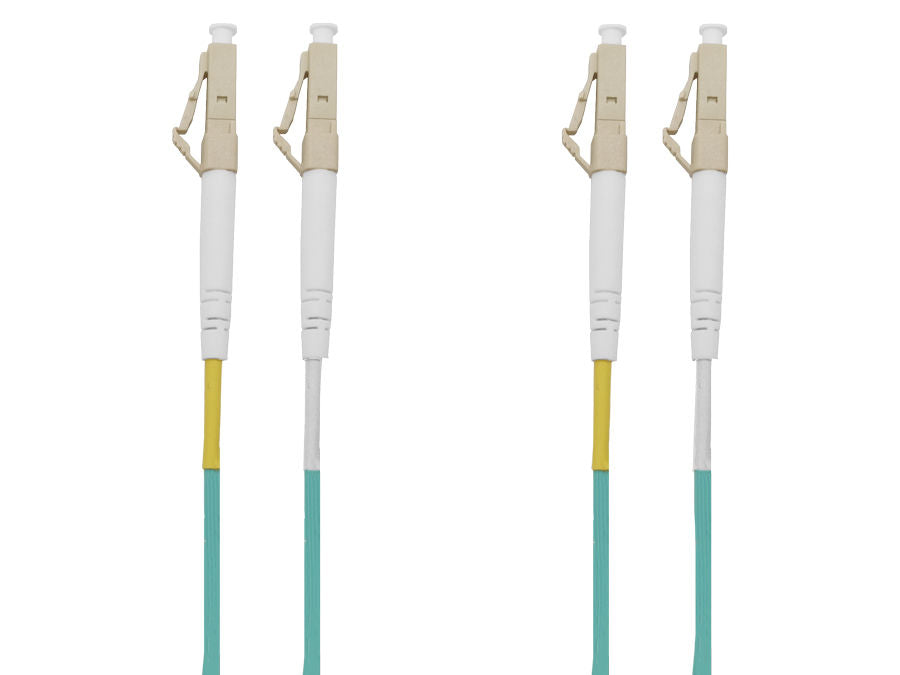

What Is a Fibre Patch Lead?

A fibre patch lead is a pre-terminated length of fibre used to connect equipment, patch panels, termination boxes and other optical interfaces.

A patch lead specification can include:

• Single-mode or multimode
• OM or OS category
• Simplex or duplex
• Connector type at each end
• UPC or APC polish
• Cable length
• Jacket type

For example, 'LC-LC duplex' is not a complete specification unless the fibre type and polish are also known.

Hybrid Fibre Patch Leads

A patch lead can use different connectors at each end, such as LC-to-SC.

This is useful where network equipment uses an LC-based SFP while the installed fibre distribution panel uses SC adapters.

The connector types can differ while the optical fibre itself remains compatible with the link.

What Is a Fibre Pigtail?

A fibre pigtail is a short length of fibre with a connector installed on one end and an unterminated fibre on the other.

The bare end is normally fusion-spliced to a fibre in the installed cable.

Pigtails provide a controlled factory-terminated connector interface while allowing the field cable to be permanently spliced into the termination enclosure.

Patch Lead vs Pigtail

A patch lead is terminated at both ends and is intended to connect two optical interfaces.

A pigtail is terminated at one end and is intended to be spliced to another fibre at the unterminated end.

Confusing the two can result in ordering the wrong component for a fibre termination project.

What Is a Fibre Adapter or Coupler?

A fibre adapter aligns and mates two compatible fibre connectors.

Adapters are commonly installed in patch panels, termination boxes and distribution frames.

The adapter must match the connector family and, where relevant, the connector polish and fibre system.

Fibre Patch Panels and Termination Boxes

Fibre patch panels and termination boxes provide an organised location for terminating, protecting and patching fibre cables.

They can include:

• Adapter plates
• Splice trays
• Pigtails
• Cable management
• Fibre storage
• Cable glands or entries

Rack-mount panels are common in network cabinets, while wall-mount and industrial enclosures are used in field installations.

Splice Trays

Splice trays organise and protect fusion splices inside fibre enclosures.

They help maintain appropriate bend radius and keep individual fibres arranged for maintenance and identification.

The tray capacity should be suitable for the number of splices required.

Fusion Splicing

Fusion splicing permanently joins two optical fibres by accurately aligning and fusing the glass ends.

It is widely used for cable installation, pigtail termination and fibre repair.

Splicing requires specialised equipment and competent workmanship. Completed links should be tested according to the project requirements.

Mechanical Splices

Mechanical fibre splices align fibre ends without permanently fusing the glass.

They can be useful in particular repair or installation situations, but fusion splicing is commonly preferred for permanent communications infrastructure where low loss and long-term reliability are required.

What Is Insertion Loss?

Insertion loss is the reduction in optical power caused by components or sections of the optical path.

Loss can come from:

• Fibre length
• Connectors
• Adapters
• Splices
• Splitters where applicable
• Contamination
• Excessive bending

The total link loss must remain within the optical budget of the transceivers.

What Is Return Loss?

Return loss relates to optical power reflected back toward the source.

Connector polish, cleanliness and fibre interfaces can affect reflections.

Some optical systems have stricter reflection requirements than others, which is one reason APC connectors are used in particular applications.

Fibre Bend Radius

Optical fibre should not be bent more tightly than the manufacturer's specified bend radius.

Excessive bending can increase optical loss and can permanently damage the cable.

Bend radius is particularly important inside crowded network cabinets, splice enclosures, trays and cable routes.

Do Not Pull Fibre Like Ordinary Electrical Cable

Fibre cables have specified tensile limits and installation methods.

Excessive pulling force, crushing, kinking or tight bends can damage the fibres even when the outer jacket appears intact.

Installation should follow the cable manufacturer's pulling, bend-radius and mechanical-protection requirements.

Indoor vs Outdoor Fibre Cable

Indoor and outdoor fibre cables use different constructions for their intended environments.

Outdoor cables can include UV-resistant jackets, water-blocking materials, armour and other protective features.

Indoor cables can have specific flame-performance requirements depending on the installation.

The route and environment should be defined before selecting the cable.

Armoured Fibre Cable

Armoured fibre includes mechanical protection to improve resistance to crushing, rodents or other physical hazards depending on the cable design.

Armour does not make a cable indestructible and does not remove the need for appropriate installation practices.

Metallic armour can also affect electrical bonding and earthing considerations even though the optical fibres themselves are non-conductive.

Direct Burial Fibre

Some fibre cables are specifically designed for direct burial, while others require installation in ducts or conduits.

Before ordering, confirm whether the cable will be installed in a duct, tray, building, aerial route, underground conduit or direct-burial application.

Aerial Fibre

Aerial fibre cables are designed for supported or self-supporting overhead installation depending on the construction.

Wind, span length, mechanical loading, UV exposure and mounting hardware all matter.

A standard indoor fibre cable should not be substituted for an engineered aerial cable route.

ADSS Fibre

All-Dielectric Self-Supporting, or ADSS, fibre is designed for certain aerial installations without metallic conductive elements.

It is widely used in utility and infrastructure environments, but cable selection must consider span, environmental loading and installation requirements.

Loose Tube vs Tight Buffered Fibre

Fibre cable constructions can include loose-tube and tight-buffered designs.

Loose-tube cables are common in outdoor and longer-distance infrastructure. Tight-buffered constructions are frequently used indoors and for distribution applications.

The appropriate construction depends on the installation method and termination approach.

Fibre and Electromagnetic Interference

Optical fibre does not carry electrical data signals and is inherently immune to electromagnetic interference along the optical path.

This makes fibre particularly useful near motors, VSDs, transformers, high-current circuits and other potential sources of electrical noise.

This does not mean the electronic equipment at the ends of the fibre link is immune to electrical disturbances.

Electrical Isolation Between Buildings

Because glass fibre does not provide an electrical communications path, fibre can help avoid conductive network connections between buildings or electrically separate areas.

However, cable armour, strength members and other metallic components need to be considered in the complete installation.

What Is an SFP Module?

An SFP is a removable transceiver installed in compatible network equipment to provide an optical or other communications interface.

The SFP determines characteristics such as:

• Data rate
• Fibre type
• Wavelength
• Connector
• Optical reach

The SFP must be compatible with both the network equipment and the fibre link.

SFP vs SFP+

Standard SFP modules are widely associated with Gigabit Ethernet, while SFP+ modules are commonly used for 10 Gigabit Ethernet.

The modules can look very similar, but physical fit does not guarantee electrical or protocol compatibility.

Always confirm the supported port type and speed.

Single-Mode vs Multimode SFPs

A multimode SFP must be used with suitable multimode fibre, while a single-mode SFP is designed for compatible single-mode fibre.

The optics at both ends also need compatible wavelength and Ethernet characteristics.

Do not choose a single-mode SFP simply because it has a longer advertised distance.

Wavelength

Optical transceivers operate at specified wavelengths.

Common Ethernet examples include 850 nm for many multimode links and 1310 nm for many single-mode links, while 1550 nm and other wavelengths are used for longer-reach and specialised optics.

The exact wavelength must match the link design and remote transceiver.

BiDi Fibre Links

BiDi transceivers transmit and receive over a single fibre strand using different wavelengths in each direction.

They are useful where fibre cores are limited.

BiDi modules normally need to be purchased as complementary pairs. Two identical modules are not automatically a valid link.

Media Converters

Media converters allow copper Ethernet equipment to connect to fibre infrastructure.

They are useful where an existing device has only an RJ45 interface but the communications path needs to use fibre.

Media converters can use fixed optical interfaces or SFP slots depending on the model.

Fibre Distance and Data Rate

The distance supported by a fibre link depends on the fibre type, Ethernet standard and transceivers.

Higher data rates can have different distance limits on the same fibre category.

For this reason, an existing fibre cable that works at 1 Gigabit Ethernet is not automatically guaranteed to support a planned 10 Gigabit upgrade over the same distance.

Optical Budget

The optical budget is the permitted loss between the transmitter and receiver.

Every splice, connector and length of fibre contributes to the link loss.

For long or critical links, the actual optical budget should be calculated and the completed installation tested rather than relying only on the transceiver's nominal kilometre rating.

Fibre Cleaning

Contamination is one of the most common causes of fibre problems.

Dust, skin oils and debris on connector end faces can cause high insertion loss, reflections and intermittent links.

Appropriate fibre inspection and cleaning tools should be used according to proper procedures.

Inspect Before You Connect

Where suitable inspection equipment and procedures are available, fibre connectors should be inspected and cleaned before connection.

Repeatedly unplugging and reconnecting a contaminated connector can transfer contamination to another interface.

Protect unused connectors and ports with appropriate dust caps.

Never Look Into an Active Fibre Port

Optical transmitters can emit light that is invisible to the human eye.

Never look directly into an active fibre connector, transceiver or port. Follow the manufacturer's optical safety instructions and appropriate fibre-handling procedures.

Testing Fibre Links

Different test methods provide different information.

Depending on the project, testing can include:

• Visual inspection
• Continuity and polarity checks
• Optical loss testing
• Optical power measurement
• OTDR testing

The required test method depends on the installation specification and purpose.

What Is an OTDR?

An Optical Time Domain Reflectometer, or OTDR, sends optical pulses into a fibre and analyses reflections and backscatter along the link.

It can help identify events such as splices, connectors, excessive loss and fibre breaks and can estimate their location along the cable.

OTDR interpretation requires appropriate setup and technical competence.

Fibre Labelling

Good fibre infrastructure should be clearly labelled at both ends.

Useful identification can include:

• Cable ID
• Core number
• Origin and destination
• Patch-panel position
• Fibre type
• Service or network assignment

Accurate labelling reduces troubleshooting time and the risk of disconnecting the wrong service.

Fibre Management Inside Network Cabinets

Fibre patch leads need adequate space and bend-radius control inside cabinets.

Use suitable patch panels, organisers, fibre trays and cable-management accessories rather than forcing excess fibre behind active equipment.

Cabinet depth and layout should allow access without crushing or sharply bending fibre leads.

Common Fibre Selection Mistakes

• Ordering by connector type only
• Mixing single-mode and multimode components
• Confusing UPC and APC connectors
• Ordering the wrong OM category
• Not specifying simplex or duplex
• Forgetting connector type at the opposite end
• Ignoring SFP compatibility
• Not checking wavelength
• Ordering two identical BiDi SFPs instead of a complementary pair
• Choosing cable only by core count
• Using indoor cable outdoors
• Ignoring armour or mechanical-protection requirements
• Ignoring bend radius
• Failing to allow spare cores for future expansion
• Assuming a nominal distance rating guarantees the optical link

Replacing Existing Fibre Components

When replacing an existing patch lead, SFP, pigtail or fibre component, provide the exact manufacturer and part number where possible.

Useful information includes:

• Single-mode or multimode
• OS or OM category
• Connector at end A
• Connector at end B
• UPC or APC
• Simplex or duplex
• Length
• SFP model
• Switch model
• Wavelength
• Link distance

Clear photographs of labels and connector ends can also help identify the requirement.

A Practical Planning Checklist

When requesting a fibre quotation, provide as much of the following as possible:

• Application: ___
• Fibre type: single-mode or multimode
• Fibre category: OS2, OM1, OM2, OM3, OM4, OM5 or unknown
• Number of cores: ___
• Cable length: ___ metres
• Installation: indoor, outdoor, duct, direct burial, aerial or other
• Armour required: yes, no or unsure
• Connector end A: ___
• Connector end B: ___
• Polish: UPC, APC or unknown
• Simplex or duplex: ___
• Network speed: ___
• SFP/SFP+ model: ___
• Switch model: ___
• Wavelength: ___
• Link distance: ___
• Patch panel or termination enclosure required: yes or no
• Pigtails/adapters required: yes or no
• Quantity: ___

If you are replacing an existing component and do not know the specification, provide clear photographs of the labels, connectors and network equipment at both ends.

For fibre enquiries, providing the fibre type, connector configuration, required length, installation environment and network equipment details helps reduce the risk of ordering incompatible components.

Technical Note

This article provides general fibre-optic and purchasing information. Fibre selection, optical budgets, installation methods, testing, connector compatibility, cable construction, network speed and transceiver compatibility must be assessed for the specific installation. Manufacturer documentation, applicable standards and project requirements take precedence. Fibre termination, splicing, testing and critical network design should be undertaken or verified by appropriately competent personnel.

Related catalogue examples: Fibre Optic Solutions. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
