Electrical Distribution Explained: DBs, MCCs, Circuit Breakers, Contactors and Protection

Quick overview: This guide explains electrical distribution and the practical checks that help you understand and plan an installation. Use the contents below to go directly to the relevant section.

Electrical distribution is the part of an industrial electrical system that takes incoming power and distributes it safely to machines, motors, control panels, pumps, lighting, instrumentation and other loads.

Although distribution equipment is often discussed in terms of simple ratings such as amps and poles, correct selection involves much more. System voltage, load type, prospective fault current, cable size, earthing arrangement, discrimination, environmental conditions, switching duty and downstream equipment can all affect which device is suitable.

This guide explains the main components found in industrial distribution systems and how distribution boards, MCCs, circuit breakers, isolators, contactors, overload devices, fuses, surge protection and related equipment work together.

What Is Electrical Distribution?

Electrical distribution describes the controlled delivery of electrical power from a supply point to individual loads or sub-distribution points.

A simplified industrial power path can look like:

Utility or generator supply → Main switchboard → Distribution board or MCC → Feeder protection → Machine, motor or control panel

Each stage can provide switching, isolation, protection and distribution functions.

What Is a Distribution Board?

A distribution board, commonly called a DB, contains protective and switching devices that divide an incoming electrical supply into multiple outgoing circuits.

Industrial DBs can supply:

• Control panels
• Machines
• Pumps
• Lighting
• Socket circuits
• HVAC equipment
• Instrumentation
• Sub-distribution boards

The construction and ratings of the board must suit the electrical installation and environment.

Main DB vs Sub-DB

A main distribution board is typically located closer to the primary incoming supply and feeds downstream circuits or sub-distribution boards.

A sub-DB receives power from an upstream board and distributes it further within a building, plant or process area.

The terms describe the board's position in the distribution hierarchy rather than one fixed construction type.

What Is an MCC?

An MCC, or motor control centre, is an electrical assembly focused on distributing power to and controlling motors and related industrial loads.

It can contain multiple feeders using:

• Direct-on-line starters
• Star-delta starters
• Soft starters
• Variable speed drives
• Motor protection circuit breakers
• Contactors and overload relays

MCCs can also contain PLC, remote I/O and industrial communication equipment depending on the project architecture.

DB vs MCC

A distribution board primarily distributes electrical power to general circuits, while an MCC is specifically organised around motor feeders and motor-control functions.

There is overlap between the two. Both can contain circuit breakers, busbars, isolators and protection equipment.

The appropriate assembly depends on the loads and control requirements.

What Is Switchgear?

Switchgear is a broad term covering equipment used to switch, control, isolate and protect electrical circuits.

Depending on voltage level and application, switchgear can include:

• Circuit breakers
• Switch disconnectors
• Fuses
• Contactors
• Protection devices
• Busbar systems

Different product families are designed for different electrical duties and should not be treated as interchangeable.

What Is a Circuit Breaker?

A circuit breaker is a protective switching device designed to interrupt electrical current under specified abnormal conditions.

Depending on its design, a breaker can protect against:

• Overload
• Short circuit
• Other defined electrical faults

Its protective function depends on the breaker type, trip unit and settings.

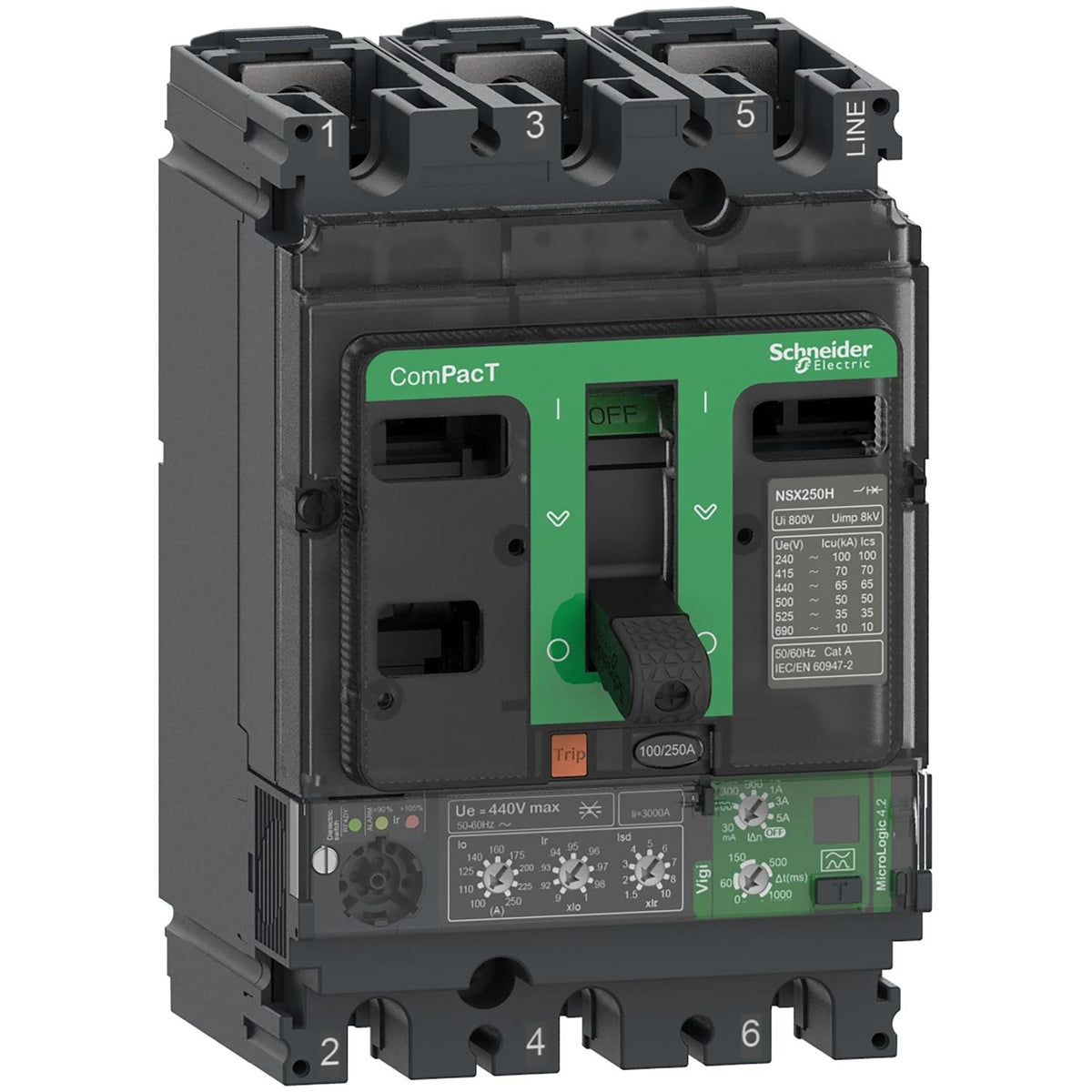

MCB, MCCB and Other Breaker Types

Different circuit breaker families are used at different current levels and for different applications.

Two common categories are:

• MCB: miniature circuit breaker
• MCCB: moulded case circuit breaker

MCCBs generally cover higher current and fault-duty ranges and can offer adjustable protection functions, while MCBs are commonly used for smaller final and distribution circuits.

Exact capabilities vary by manufacturer and product range.

What Does a Breaker's Amp Rating Mean?

The current rating identifies the current level for which the device is designed under specified conditions.

It does not mean the breaker will trip immediately when current exceeds that number.

Overcurrent protection follows a time-current characteristic, meaning the operating time depends on the magnitude and duration of the overcurrent.

Breaking Capacity

Breaking capacity is the maximum prospective fault current that a protective device can safely interrupt under defined conditions.

A breaker can have the correct normal current rating and still be unsuitable if its breaking capacity is below the available short-circuit current at the installation point.

This is one of the most important distinctions in industrial protection selection.

Prospective Short-Circuit Current

The prospective short-circuit current is the fault current that could flow if a short circuit occurred at a particular point in the electrical system.

It depends on factors including:

• Supply transformer
• Transformer impedance
• Generator characteristics
• Cable impedance
• Upstream network
• Distance from the source

Fault-level calculations are required where necessary to verify equipment ratings.

Overload vs Short Circuit

An overload is an excessive current flowing through an otherwise normal circuit path, often caused by too much connected load or a motor operating above its intended load.

A short circuit is a low-impedance fault between conductors or conductive parts that can produce very high current.

Protective devices can respond differently to these conditions.

Thermal and Magnetic Protection

Many circuit breakers use thermal and magnetic principles.

The thermal element responds to sustained overload current, while the magnetic element responds rapidly to high fault current.

Electronic trip units can provide more configurable protection functions on larger breakers.

Trip Curves

Protective devices are designed to operate according to defined time-current characteristics.

Different curves allow circuits with normal starting or inrush currents to operate without unnecessary tripping while still providing required protection.

Trip-curve selection should be based on the actual load and coordination requirements rather than choosing a curve by habit.

What Is an Isolator?

An isolator or switch disconnector provides a means of disconnecting a circuit for maintenance or safety according to its rated function.

Isolation and overcurrent protection are different functions.

Some devices combine switching and protective functions, while a pure isolator may not provide overload or short-circuit protection.

Load-Break Switching

Not every isolating device is intended to interrupt load current under all conditions.

A switch disconnector designed for load switching has specified making and breaking capabilities.

The device's utilisation category and manufacturer rating should be checked for the intended switching duty.

What Is a Fuse?

A fuse contains an element designed to melt when current exceeds its time-current characteristic, interrupting the circuit.

Fuses remain widely used in industrial systems because they can provide high fault-interruption capability and effective current limitation.

Different fuse classes and characteristics are designed for different applications.

Fuse vs Circuit Breaker

Both can provide overcurrent protection, but they operate differently.

A fuse must be replaced after operation, while a circuit breaker can normally be reset after the fault has been investigated and cleared.

Fuses can offer very fast fault clearing and high current-limiting performance. Breakers can provide convenient reset, switching and adjustable protection depending on the model.

The correct choice depends on the electrical design.

Fuse Holders and Switch Fuses

Fuses must be installed in suitable holders or switching assemblies rated for the fuse type, current, voltage and fault duty.

Switch-fuse combinations can provide both isolation and fused protection.

The complete assembly rating matters, not only the fuse element.

What Is a Contactor?

A contactor is an electrically operated switching device used to repeatedly switch power circuits.

Contactors are common in:

• Motor starters
• Pump panels
• Heating systems
• Lighting control
• Capacitor switching
• Industrial machinery

A contactor is not automatically an overcurrent protective device.

Contactor Coil Voltage

The contactor coil must match the control voltage.

Common control arrangements can use 24 VDC, 24 VAC, 110 VAC, 230 VAC or other specified voltages.

Ordering the correct contactor frame with the wrong coil voltage can make the device unusable in the intended panel.

Contactor Utilisation Categories

Contactor ratings depend on the type of load and switching duty.

A contactor's headline current rating should not be assumed to apply equally to motors, resistive heaters, lighting and other loads.

For motor applications, the applicable utilisation category and motor rating should be checked against the manufacturer's data.

AC-1 and AC-3

AC-1 is commonly associated with non-inductive or slightly inductive loads, while AC-3 is commonly associated with squirrel-cage motor starting and switching during normal running conditions.

A contactor can therefore have different current ratings for AC-1 and AC-3 duty.

Motor contactors should be selected using the appropriate motor-duty rating.

What Is an Overload Relay?

An overload relay protects a motor against sustained overload conditions and, depending on the device, phase-loss or imbalance conditions.

It is commonly used together with a contactor in a motor starter.

An overload relay does not normally provide the high fault-interruption capability required for short circuits, so coordinated short-circuit protection is also needed.

Setting a Motor Overload

Overload settings should be based on the motor and application requirements, including the motor nameplate current and the manufacturer's instructions.

The setting should not simply be increased to stop nuisance tripping without investigating why the motor is drawing excessive current.

Electronic Motor Protection

Electronic motor-protection devices can provide additional functions such as:

• Overload protection
• Phase-loss monitoring
• Current imbalance detection
• Stall protection
• Jam protection
• Ground-fault functions
• Communication and diagnostics

Available functions vary significantly by product.

Motor Protection Circuit Breakers

A motor protection circuit breaker, or MPCB, is designed specifically for motor circuits.

Depending on the product, it can provide:

• Manual switching
• Motor overload protection
• Short-circuit protection
• Phase-failure sensitivity

It can be combined with a contactor to create a compact motor starter.

Coordination Between MPCB and Contactor

Motor starter components should be selected as a coordinated combination.

Manufacturers publish coordination data showing compatible protective devices and contactors for specified motor ratings and fault conditions.

Using individually adequate components does not automatically prove that the complete starter is correctly coordinated.

What Is Selectivity?

Selectivity, also called discrimination, is the coordination of protective devices so that the device nearest the fault operates while upstream healthy circuits remain energised where possible.

For example, a fault on one machine should ideally trip that machine's feeder rather than the entire production area's main breaker.

Achieving selectivity requires analysis of protective-device characteristics and available fault currents.

Why Selectivity Matters

Poor coordination can turn a small downstream fault into a plant-wide outage.

Selective protection can improve:

• Availability
• Fault isolation
• Maintenance
• Troubleshooting

Complete selectivity is not always technically or economically achievable, so the required level should be defined by the project.

Cascading and Backup Protection

Some manufacturers provide tested combinations where an upstream protective device increases the permissible short-circuit capability of a downstream device.

This is often referred to as cascading or backup protection.

It should only be applied using manufacturer-tested and documented combinations rather than assumed from ratings.

Earth Leakage and Residual Current Protection

Residual current devices detect imbalance between conductors caused by current flowing through an unintended path such as earth.

They can provide additional protection against electric shock or fire risks depending on device type and application.

Residual-current protection does not replace overload and short-circuit protection unless combined in a device designed to provide those functions.

RCD, RCCB and RCBO

Terminology varies by device type:

• RCD: broad term for residual current device
• RCCB: residual current circuit breaker without integral overcurrent protection
• RCBO: residual current breaker with overcurrent protection

Exact application and legal requirements depend on the installation and applicable electrical standards.

Residual Current Protection and VSDs

Variable speed drives can produce leakage currents and DC or high-frequency components that affect residual-current protection.

The correct RCD type, if required, should be selected according to the drive manufacturer's instructions and applicable standards.

A standard residual-current device should not automatically be assumed suitable for every VSD circuit.

Surge Protection Devices

Surge protection devices, or SPDs, limit transient overvoltages caused by events such as lightning effects and electrical switching.

They are commonly installed at selected points in an electrical distribution system to protect downstream equipment.

SPD selection depends on system voltage, earthing arrangement, location in the installation and required protection level.

Type 1, Type 2 and Type 3 SPDs

Surge protection devices are classified for different positions and duties within an installation.

Type 1 devices are associated with high-energy surge conditions including partial lightning current, Type 2 devices are commonly used for distribution-level transient protection, and Type 3 devices provide finer protection near sensitive loads.

Actual coordination should follow the applicable standard and manufacturer guidance.

SPD Backup Protection

Surge protection devices can require upstream backup fuses or circuit breakers depending on the SPD design and available fault current.

The manufacturer's specified protective arrangement should be followed.

What Is a Busbar?

A busbar is a conductive bar used to distribute high currents within switchboards, DBs and MCCs.

Busbar systems can distribute incoming power to multiple outgoing feeders efficiently.

Design must account for:

• Continuous current
• Temperature rise
• Short-circuit withstand
• Mechanical forces
• Clearances
• Supports

Copper vs Aluminium Busbars

Copper and aluminium are both used for electrical busbars.

They differ in conductivity, weight, physical size, connection requirements and cost.

The complete engineered design determines suitability rather than one material being universally superior.

Neutral Busbars

Neutral conductors can carry significant current depending on load balance and harmonic content.

Neutral sizing should therefore follow the actual system and applicable standards rather than assuming the neutral can always be smaller than phase conductors.

Protective Earth Bars

Distribution assemblies normally include a protective-earth termination system for bonding outgoing protective conductors and the enclosure.

Earth-bar sizing and connections should support the required fault-current path and installation requirements.

Three-Phase Distribution

Three-phase power is widely used in industrial facilities for motors and larger loads.

Distribution design should consider:

• Phase loading
• Neutral requirements
• Motor loads
• Single-phase branch loads
• Protection
• Phase sequence

Load Balancing

Single-phase loads connected to a three-phase system should be distributed appropriately between phases where possible.

Severe imbalance can increase neutral current, voltage imbalance and equipment stress.

Actual load measurements can help identify imbalance in existing installations.

Phase Sequence

Three-phase motor rotation depends on phase sequence.

Changing two phases reverses the phase sequence and typically reverses the direction of a standard three-phase induction motor.

Motor rotation should be verified safely during commissioning.

Phase Failure and Imbalance Protection

Three-phase equipment can be damaged by phase loss or excessive voltage imbalance.

Phase-monitoring relays and motor-protection devices can detect these conditions and prevent or stop operation where appropriate.

Under-Voltage and Over-Voltage Protection

Voltage monitoring relays can supervise supply voltage and initiate alarms or control actions when voltage moves outside defined limits.

They can be useful in systems where unstable supply conditions could damage equipment or disrupt operation.

Automatic Transfer Systems

Facilities with more than one power source can use automatic transfer systems to transfer loads between sources such as utility and generator supplies.

The system can include:

• Motorised breakers or changeover switches
• Voltage and phase monitoring
• Interlocking
• Generator start signals
• Control logic

Transfer architecture requires careful electrical and control design to prevent unsafe source paralleling unless the system is specifically designed for it.

Manual Changeover Switches

A manual changeover switch allows an operator to select between defined power sources.

The switch must be correctly rated for voltage, current, poles and switching duty.

Neutral switching requirements depend on the electrical system and earthing arrangement.

Generator Distribution

Generator-backed systems require consideration of generator fault current, voltage regulation, neutral and earthing arrangements, transfer equipment and load starting requirements.

Protective devices selected for a strong utility source might behave differently when the same system is supplied by a generator with lower available fault current.

UPS Distribution

UPS-backed loads should normally be clearly identified and separated from non-backed-up circuits according to the design.

UPS output fault characteristics can differ from utility supplies, which can affect downstream protective-device operation.

The UPS manufacturer and electrical design should be considered when coordinating protection.

Distribution to VSDs

VSD feeder design should consider:

• Drive input current
• Manufacturer-recommended protection
• Short-circuit rating
• Input reactors or filters where required
• RCD compatibility where applicable
• Cable sizing

Motor-side switching and protection also require attention because a VSD output is not equivalent to a normal mains supply.

Distribution to Soft Starters

Soft starters require appropriately coordinated upstream protection and motor overload arrangements according to the starter design.

Some installations use bypass contactors to reduce losses after the motor reaches full speed.

The complete starter and protection arrangement should follow manufacturer guidance.

Distribution to PLC and Control Panels

Automation panels often receive an AC feeder from a DB or MCC and convert part of that supply to 24 VDC for PLCs, sensors and communications.

The incoming feeder should account for panel load, internal power supplies, VSDs and any auxiliary equipment.

Feeder Cable Sizing

Cable sizing depends on more than load current.

Factors can include:

• Current carrying capacity
• Installation method
• Ambient temperature
• Grouping
• Voltage drop
• Short-circuit withstand
• Protective-device coordination

Applicable wiring standards and engineering requirements should be used for final sizing.

Voltage Drop

Every conductor has impedance, causing voltage to fall as current flows.

Long feeders and high currents can produce excessive voltage drop, affecting motor starting and equipment performance.

Voltage-drop calculations should consider actual conductor size, length, material and load current.

Short-Circuit Withstand of Cables

Cables must withstand the thermal effects of fault current until the protective device clears the fault.

This can become a limiting factor even where the cable is adequately sized for normal current and voltage drop.

Protection Coordination With Cable Size

A protective device should protect the connected conductor against overload and fault conditions as required by the applicable design rules.

Increasing a breaker rating to prevent nuisance tripping without checking cable capacity can create an unsafe condition.

Power Factor

Inductive loads such as motors can draw reactive current, reducing power factor.

Power-factor correction can reduce reactive current drawn from the supply where appropriately applied.

Correction equipment should be engineered for the installation, particularly where harmonic-producing loads such as VSDs are present.

Power Factor Correction Capacitors

Capacitor banks are commonly used to improve power factor.

They can be fixed or automatically switched in stages according to reactive-power demand.

Contactor selection, harmonic conditions, detuning reactors and protection can all be relevant.

Harmonics

Non-linear loads such as VSDs, rectifiers, UPS systems and switch-mode power supplies can produce harmonic currents.

Harmonics can affect:

• Transformers
• Neutral conductors
• Capacitors
• Generators
• Protection equipment

Where harmonic levels are significant, measurement and engineering assessment can be required.

Metering

Electrical distribution boards can include meters for monitoring:

• Voltage
• Current
• Power
• Energy
• Power factor
• Frequency
• Demand

Advanced meters can communicate with PLC, SCADA or energy-management systems.

Current Transformers

Current transformers, or CTs, allow meters and protection devices to measure high currents using a reduced secondary current.

CT ratio, accuracy class, burden and installation orientation should match the application.

CT secondary circuits require appropriate handling because open-circuiting an energised current-transformer secondary can be hazardous.

Electrical Meter Communications

Modern power meters can support protocols such as Modbus RTU or Modbus TCP.

This allows electrical measurements to be integrated into PLC, SCADA or remote monitoring systems.

Communication capability should be specified when remote energy monitoring is required.

Form of Separation

Larger low-voltage switchboard assemblies can use internal separation between busbars, functional units and terminals.

The required form affects maintenance, safety, physical size and cost.

It should be defined in the project specification before assembly design begins.

Fixed and Withdrawable Feeders

Fixed feeders are permanently mounted within the assembly.

Withdrawable feeders use an engineered mechanism allowing functional units to be removed or isolated more easily.

Withdrawable MCCs can support plant maintenance strategies where rapid feeder replacement or isolation is valuable.

IP Rating for Distribution Equipment

The enclosure must suit the installation environment.

Indoor electrical rooms, outdoor process areas, dusty plants and washdown locations can require different enclosure construction.

Ingress protection should be assessed together with ventilation, cable entries and operating handles.

Outdoor Distribution Boards

Outdoor boards can require additional consideration for:

• Rain
• UV exposure
• Solar heating
• Condensation
• Corrosion
• Dust
• Insects

IP rating alone does not address every outdoor environmental condition.

Stainless Steel Distribution Enclosures

Stainless steel can be useful in corrosive, washdown or selected outdoor environments.

The required stainless grade depends on environmental exposure.

Stainless construction does not remove the need for correct sealing, gland selection, bonding and thermal design.

Labels and Circuit Identification

Distribution equipment should be clearly labelled so that circuits and isolation points can be identified safely.

Useful labels can include:

• Board designation
• Incoming source
• Feeder names
• Voltage warnings
• Alternative supply warnings
• Protective-device settings where required

Single-Line Diagrams

A single-line diagram provides a simplified representation of the electrical distribution system.

It can show:

• Incoming supplies
• Transformers
• Generators
• Main breakers
• Busbars
• DBs and MCCs
• Major feeders
• Protection ratings

An accurate single-line diagram is extremely useful for operation, maintenance and future expansion.

Protection Settings

Adjustable breakers and protection relays require appropriate settings.

Settings can include long-time, short-time, instantaneous and earth-fault functions depending on the device.

Incorrect settings can either cause nuisance trips or fail to provide the intended protection.

Protection Studies

Larger industrial systems can require studies such as:

• Load-flow analysis
• Short-circuit calculations
• Protection coordination
• Arc-flash assessment where applicable

The scope depends on the installation and project requirements.

Arc Flash

Electrical faults can produce intense thermal energy and pressure known as an arc-flash event.

Arc-flash risk depends on system voltage, fault current, clearing time, equipment configuration and working distance.

Risk assessment, protection settings, equipment design, work practices and PPE can all form part of the mitigation strategy.

Why Breaker Speed Matters for Arc Energy

Arc energy is strongly influenced by how long the fault persists.

Protection coordination therefore involves a balance between selectivity and fault-clearing time.

Detailed analysis is required where arc-flash risk assessment forms part of the project.

Common Electrical Distribution Selection Mistakes

• Ordering a breaker only by amp rating
• Ignoring breaking capacity
• Not providing system voltage or number of poles
• Using an isolator where overcurrent protection is required
• Assuming a contactor provides motor overload protection
• Ordering a contactor with the wrong coil voltage
• Selecting contactors using AC-1 current for an AC-3 motor application
• Increasing overload settings to stop nuisance trips without investigating the load
• Ignoring protective-device coordination
• Ignoring generator fault-current characteristics
• Using an unsuitable RCD with VSD equipment
• Ignoring SPD backup protection
• Failing to account for cable voltage drop
• Increasing breaker size without checking conductor capacity
• Ignoring harmonic conditions in power-factor correction systems
• Specifying an outdoor board by IP rating alone

A Practical Planning Checklist

For an accurate quotation, provide as much of the following information as possible:

• Application: ___
• Equipment required: DB, MCC, breaker, isolator, contactor, overload, SPD or other
• System voltage: ___ VAC
• Number of phases: ___
• Frequency: ___ Hz
• Number of poles: ___
• Load current: ___ A
• Required device current rating: ___ A
• Prospective fault current if known: ___ kA
• Required breaking capacity: ___ kA
• Load type: motor, heater, lighting, panel, general distribution or other
• Motor size if relevant: ___ kW
• Motor full-load current: ___ A
• Starting method: DOL, star-delta, soft starter, VSD or other
• Contactor coil voltage: ___
• Overload adjustment range: ___
• Residual-current protection required: ___
• Surge protection required: ___
• Indoor or outdoor: ___
• Required IP rating: ___
• Enclosure material: ___
• Cable entry: top, bottom or other
• Metering required: ___
• Communication required: Modbus or other
• Existing manufacturer: ___
• Existing part number: ___
• Quantity: ___

For replacement enquiries, photographs of the device label and surrounding equipment are useful, but the electrical ratings and exact part number should be supplied wherever possible.

How Electrical Distribution Fits Into Industrial Automation

Electrical distribution provides the power foundation on which industrial automation operates.

A typical system can connect:

Incoming electrical supply → DB or MCC → feeder protection → control panel → 24 VDC power → PLC, sensors and communications → VSDs, starters and field equipment

This means distribution equipment is closely linked to many other Softcore Group Industrial Solutions Knowledge Centre topics, including industrial control panels, VSDs, soft starters, industrial power supplies, PLCs, instrumentation and UPS systems.

Softcore Group Industrial Solutions can also quote project-specific distribution, MCC and panel requirements on request where the requirement extends beyond individual catalogue products.

Products listed in our active online catalogue can be purchased or quoted through the Softcore Group Industrial Solutions store. Other brands, models and project-specific requirements can be quoted on request, with pricing, availability and lead time confirmed separately.

For replacement equipment, provide the manufacturer and exact part number wherever possible. For new distribution requirements, system voltage, load current, fault level, load type, environmental conditions and required protection functions provide a useful starting point for quotation.

Technical Note

This article provides general industrial electrical information. Electrical distribution design, fault-level calculations, protection coordination, conductor and busbar sizing, earthing, residual-current protection, surge protection, arc-flash assessment and compliance must be assessed for the specific installation. Manufacturer documentation, applicable electrical standards, engineering specifications, site requirements and statutory requirements take precedence. Electrical systems should be designed, installed, inspected, tested and maintained by appropriately competent persons within the required scope.

Related catalogue examples: Custom Control Panels | Variable Speed Drives. For an equipment enquiry, contact Softcore Group Industrial Solutions at info@softcoregroup.co.za.
