Automation for Manufacturing and Packaging Machines: How the Components Work Together

October 2, 2026

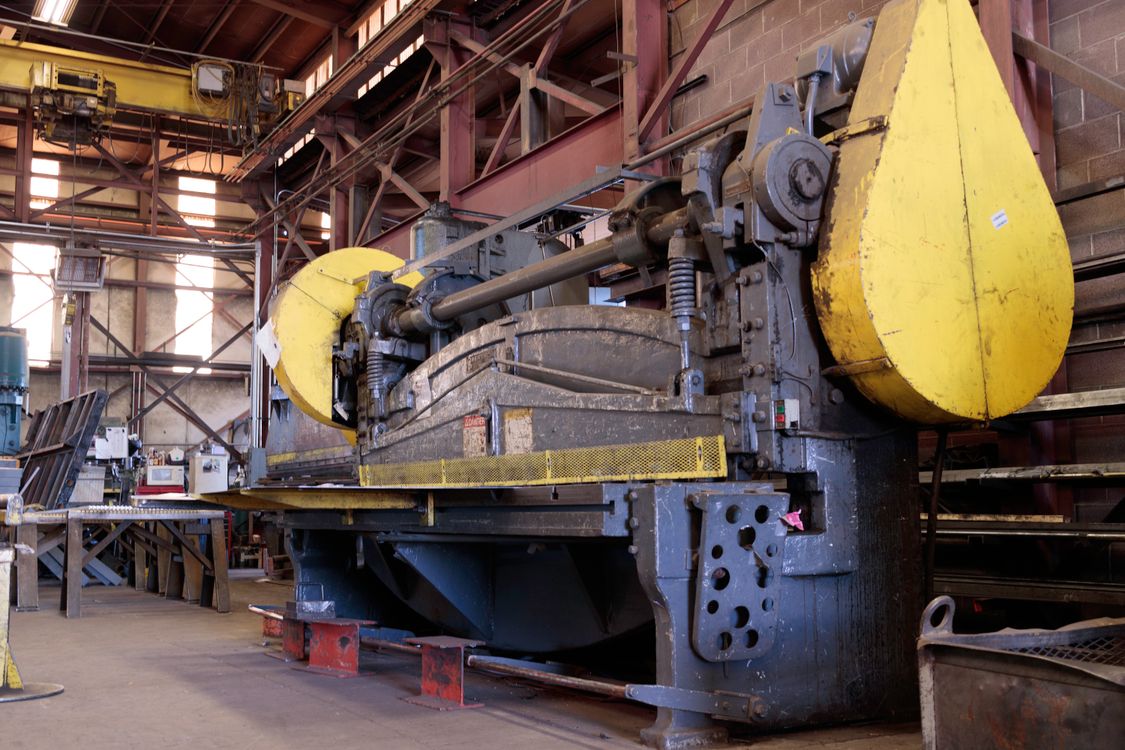

Stock photograph of industrial machinery in a manufacturing factory

Manufacturing and packaging machines can combine motors, sensors, PLCs, operator screens and communication networks. Choosing one component therefore starts with understanding how it must work with the rest of the machine.

This guide explains how controllers, operator interfaces, drives and sensors work together, and why a replacement component must fit the machine’s existing functions.

How the Main Automation Components Work Together

A sensor reports a condition, a PLC uses its program to decide what should happen, and outputs command the relevant equipment. An HMI lets an operator see status or enter permitted settings. A drive controls a motor’s operation. These components have different jobs, even when they communicate through the same network.

For example, a packaging line might detect a product, move it into position and display an alarm if the sequence cannot continue. Buying a screen does not create that sequence: the controller program, signals and machine behaviour must agree.

Speed Control and Positioning Are Different Needs

Keeping a conveyor moving at an adjustable speed is different from moving a mechanism to a repeatable position at a particular time. The first may be a motor-speed-control problem; the second may require a more detailed motion-control assessment involving position feedback and timing.

Describe the movement before choosing the technology. Required travel, load, repeatability and coordination tell the technical team more than a request for a motor of a certain power. Existing motor feedback and machine software become especially important in replacement enquiries.

Example: Adding Product Changeover Settings

A packaging line may need an operator to select settings for different products. That brief involves more than buying a larger screen: identify the values that change, the controller holding them and any limits the machine manufacturer requires. The HMI, PLC project and operator functions can then be assessed together.

Start With What the Machine Must Do

Describe the process in plain language. Is the machine conveying, filling, cutting, labelling, sealing or positioning a product? Explain the required operating sequence and where the proposed component fits.

Then establish whether the enquiry is for an exact replacement, an upgrade or a new installation. Replacing a failed screen and adding new recipes or production functions are different requirements, even if both involve an HMI.

Replacement or Change in Function?

For a replacement, send complete manufacturer and model numbers, label photographs and the existing drawings where available. Include connected equipment and any fitted modules.

For an upgrade, describe the intended change. Examples include variable conveyor speed, additional sensors, product changeover settings or improved operator information. The technical team needs to assess which parts of the existing system can support that change.

Check dimensions, interfaces and software requirements before treating the proposed hardware as a replacement.

Slanvert ST100E industrial HMI catalogue image — Slanvert ST100E 10.1-inch industrial HMI — a catalogue example. Screen size alone does not establish compatibility with a machine or its PLC. View product listing.

PLC and I/O: Record the Signals

A PLC enquiry needs more than the number of devices on the machine. Provide an I/O list or drawing showing the required inputs and outputs, their signal types and the equipment connected to them.

Digital signals from switches, sensors and other equipment.
Analogue signals, including their required ranges.
Any pulse, encoder or other specialised signal requirements.
Output requirements for the connected loads and interfaces.
Required communication modules and provision for planned expansion.

Include the control-power supply and existing module codes. Do not assume that every input or output module can accept the same signals or operate the same connected devices.

HMI: Check the Controller and Project Files

For an operator screen, provide the PLC model, required communication protocol and existing connection details. Confirm the available panel space and mounting cut-out, alongside screen size and operator requirements.

Tell us whether the original HMI project, development software and relevant versions are available. A working screen does not by itself establish that an editable project can be recovered or transferred to a different unit.

If recipes, alarms, trends or user permissions are required, list them in the application brief. Their implementation depends on the exact hardware, software and project scope.

Drives and Servo Systems: Define the Movement

For a conveyor or other motor-driven load, send the motor nameplate, incoming supply and existing drive details. Explain the speed range, starting conditions and operating duty.

If the machine needs positioning or coordinated motion, include the existing servo motor, drive and feedback-device codes. Describe the required movement, load and timing, and share the machine manufacturer’s specification where available.

A matching power rating is insufficient to confirm a servo replacement. Motor feedback, communications, cables and configuration need review as part of the complete system. Refer coordinated motion requirements for technical assessment.

Communications and Connected Equipment

List the devices that must exchange information, including PLCs, HMIs, drives and remote I/O. Record their exact models and required protocols.

Ethernet connectivity alone does not establish that two devices can communicate as required. Protocol support, configuration and the existing project must be checked. Include any required connection to a plant network or monitoring system in the enquiry.

Environment and Machine Safety

Describe dust, vibration, temperature, moisture and cleaning exposure. For food or pharmaceutical machinery, clarify whether a component contacts the product and provide the specified hygiene or material requirements. An IP rating alone does not establish suitability for washdown chemicals or a hygienic process.

Changes involving guards, emergency stops, interlocks or safety-related control need qualified assessment. Ordinary automation components should not be assumed to provide the required machine safety functions.

A Practical Planning Checklist

Machine manufacturer, model and process description.
Whether this is a replacement, upgrade or new installation.
Exact equipment codes and label photographs.
Motor, supply, I/O and communications information.
Required operator functions or motion requirements.
Drawings, I/O lists, project files and software versions where available.
Environment and mandatory project requirements.
Quantity, destination and required date.

You can send drawings and photographs rather than typing every specification. If you are unsure where to begin, share the machine model, the component label and a short description of the required task.

Technical Note: This guide provides general enquiry information. Final compatibility, machine safety and performance require assessment of the complete application. Hardware supply, programming, installation and commissioning are separate scope items unless expressly included in the quotation.
